Shop Legrand RTX3 150 Thermal Overload Relay 110-150A Class 10A | 416775 In Iraq Best Prices

Professional thermal overload relay for motor protection with 110-150A adjustable range, Class 10A rating, and direct CTX3 contactor attachment capability for industrial applications.

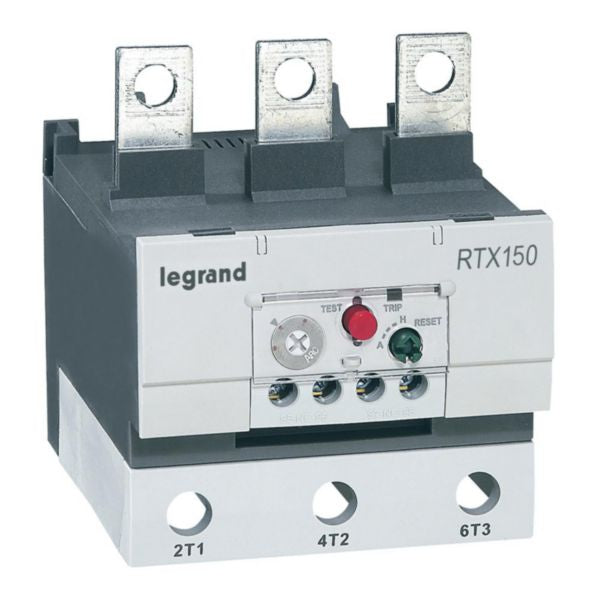

The Legrand RTX3 150 Thermal Overload Relay is a professional-grade motor protection device designed for tertiary and industrial installations. With an adjustable current range of 110-150A and a maximum rated operation voltage of 690V, this relay provides reliable protection against motor overload conditions. The relay features direct attachment capability to CTX3 contactors, making it an ideal choice for integrated motor control systems. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact rated at 0.75A/240V AC, enabling seamless integration with control circuits. This thermal overload relay is equipped with advanced features including a reset button selector allowing both automatic and manual reset modes, a trip indicator for visual fault confirmation, and a stop/test button for maintenance verification. The screw connection terminals provide robust power connection capacity of up to 50mm² for the main circuit and 1mm² for auxiliary circuits. The Class 10A release classification ensures precise thermal protection characteristics suitable for demanding industrial applications. The RTX3 150 can be mounted independently using a separate mounting unit (CatNo 416598) when required, offering flexibility in installation configurations. Its comprehensive design incorporates all necessary safety features and operational indicators required for modern motor control systems, making it an essential component for protecting three-phase asynchronous motors in industrial and tertiary sector applications.

Key Features

Adjustable current range 110-150A for flexible motor protection
Direct attachment to CTX3 contactors for integrated motor control systems
Dual auxiliary contacts (1NO + 1NC) rated 0.75A/240V AC
Reset button selector with automatic or manual reset modes
Trip indicator and stop/test button for operational verification
Class 10A release classification for precise thermal protection
Maximum rated operation voltage 690V for high-power applications
Screw connection terminals with 50mm² main circuit capacity
Independent mounting capability with separate mounting unit
Robust construction for tertiary and industrial installations

Technical Specifications

Specification	Value
Product Name	Thermal Overload Relay RTX3 150
Manufacturer	Legrand
Reference Number	416775
EAN Code	3414970407351
Adjustable Current Range	110-150A
Release Class	CLASS 10
Maximum Rated Operation Voltage	690V
Mounting Method	Direct attachment to CTX3 contactor
Main Circuit Connection	Screw connection
Normally Open Auxiliary Contacts	1 contact
Normally Closed Auxiliary Contacts	1 contact
Change-over Auxiliary Contacts	0 contacts
Auxiliary Contact Rating	0.75A / 240V AC
Power Circuit Terminal Capacity	50mm²
Auxiliary Circuit Terminal Capacity	1mm²
Reset Options	Automatic or manual reset selector
Operational Features	Trip indicator, Stop/Test button
Independent Mounting Unit	Available (CatNo 416598)
Application	Motor protection for tertiary and industrial installations
Compatibility	Direct association with CTX3 contactors

Order Legrand RTX3 150 Thermal Overload Relay 110-150A Class 10A | 416775 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
