Shop Legrand RTX3 100 Thermal Overload Relay 54-75A Class 10A | 416748 In Iraq Best Prices
Professional thermal overload relay with 54-75A adjustable protection, Class 10A release, direct CTX3 contactor mounting, and dual reset modes for industrial motor applications

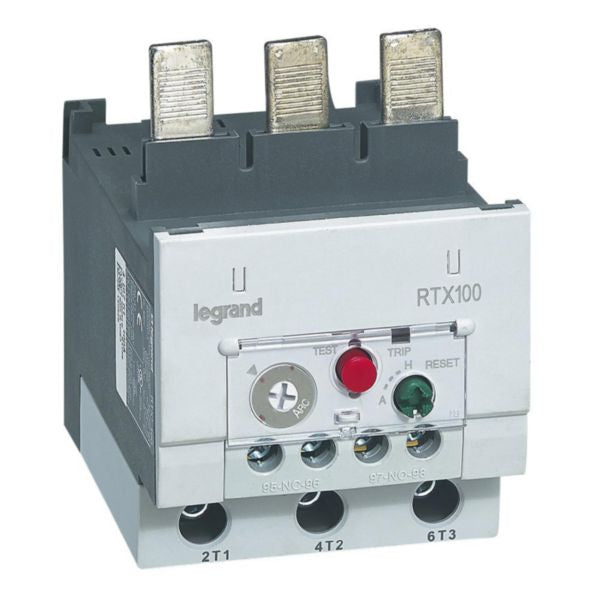

The Legrand RTX³ 100 Thermal Overload Relay is a premium motor protection device designed for industrial and tertiary installations. This relay provides reliable overload protection with an adjustable current range of 54-75A and a Class 10A release characteristic, ensuring optimal motor safety. The device features direct attachment capability to CTX3 contactors, making it an ideal solution for comprehensive motor control systems.
Equipped with advanced safety features, this thermal overload relay includes 1NO + 1NC auxiliary contacts rated at 0.75A/240V AC-15, cage terminals supporting power connections from 16mm² to 25mm², and auxiliary circuit connections up to 1mm². The intelligent reset button selector allows for both automatic and manual reset modes, providing flexibility for different application requirements. Additionally, the integrated trip indicator and stop/test button enable quick diagnostics and maintenance.
This relay is engineered to operate at a maximum rated voltage of 690V with screw connection terminals for secure and reliable installation. The device can be mounted independently using the RTX3 separate mounting unit (CatNo 416596), offering installation flexibility for various electrical configurations. Complying with international standards and RoHS directives, this thermal overload relay represents the pinnacle of motor protection technology for demanding industrial environments.
Key Features
- Adjustable current range 54-75A with Class 10A release characteristic for precise motor protection
- Direct attachment to CTX3 contactors enabling seamless integration in motor control systems
- 1NO + 1NC auxiliary contacts rated 0.75A/240V AC-15 for signaling and control functions
- Reset button selector with automatic and manual modes for flexible operational control
- Integrated trip indicator and stop/test button for rapid diagnostics and maintenance
- Cage terminals supporting power connections 16-25mm² and auxiliary circuits up to 1mm²
- Maximum rated operation voltage 690V with screw connection terminals
- Can be mounted independently using RTX3 separate mounting unit (CatNo 416596)
- Complies with international standards and RoHS directives
- Designed specifically for tertiary and industrial installations
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Overload Relay |
| Brand | Legrand |
| Model | RTX³ 100 |
| Reference Number | 416748 |
| EAN Code | 3414970407054 |
| Adjustable Current Range | 54-75 A |
| Release Class | CLASS 10 |
| Maximum Rated Operation Voltage | 690 V |
| Normally Open Auxiliary Contacts | 1 (1NO) |
| Normally Closed Auxiliary Contacts | 1 (1NC) |
| Auxiliary Contact Rating | 0.75A / 240V AC - 15 |
| Power Circuit Cage Terminal Capacity | 16mm² to 25mm² |
| Auxiliary Circuit Cage Terminal Capacity | 1mm² |
| Main Circuit Connection Type | Screw Connection |
| Mounting Method | Direct Attachment to CTX3 Contactor |
| Independent Mounting Unit | RTX3 Separate Mounting Unit (CatNo 416596) |
| Reset Options | Automatic or Manual Reset Selector |
| Auxiliary Functions | Trip Indicator, Stop/Test Button |
| Compliance | RoHS Directive Compliant |
| Application | Tertiary and Industrial Installations |
Order Legrand RTX3 100 Thermal Overload Relay 54-75A Class 10A | 416748 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
