Description

Shop Legrand PR 26 Rotary Cam Switch 3P 32A Changeover | 27742 In Iraq Best Prices

Professional 3-pole rotary cam switch with 32A rating, IP65 protection, and changeover with off position for industrial circuit control applications

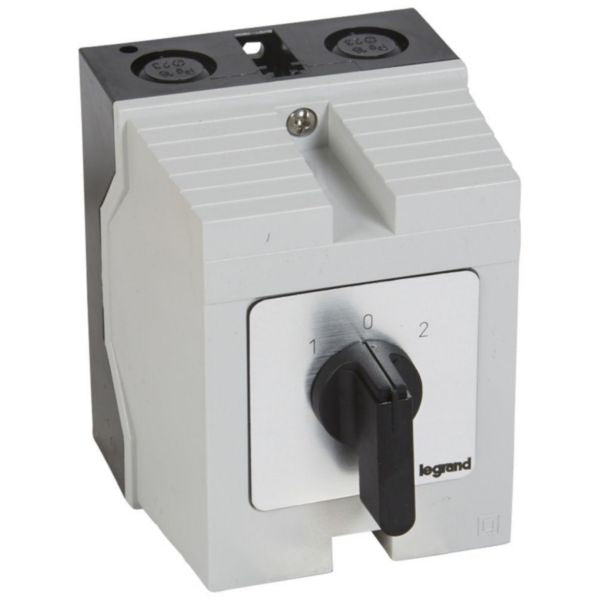

The Legrand PR 26 Rotary Cam Switch is a professional-grade electrical control device designed for selecting and changing the status of circuits in industrial and commercial applications. This changeover switch with off position features a robust 96x120 mm insulating box construction with positive opening contacts and double breaking of poles for enhanced safety and reliability. The device is rated for 32A at AC 21 and operates at 690V maximum, making it suitable for demanding electrical distribution systems. With IP65 protection rating, this surface-mounted device ensures excellent protection against dust and water ingress, conforming to international standards IEC EN 60947-3. This cam switch is equipped with a black selector lever and features three switch positions including a zero (off) position for complete circuit isolation. The device incorporates class II insulation and provides positive opening contacts with double breaking mechanism on all poles, ensuring safe operation and preventing accidental circuit closure. The 64x64 mm front shield provides a professional appearance while maintaining accessibility for operation and maintenance. The PR 26 rotary cam switch is ideal for applications requiring manual circuit selection and status indication. Its compact yet durable design, combined with international certification and compliance, makes it a reliable choice for industrial control panels, switchboards, and power distribution cabinets. The device is supplied with comprehensive technical documentation and instruction manuals for proper installation and operation.

Key Features

3-pole changeover switch with off position for complete circuit isolation
32A rated capacity at AC 21 with 690V maximum operating voltage
Positive opening contacts with double breaking mechanism on all poles
IP65 protection rating for dust and water ingress resistance
Class II insulation with surface-mounted installation design
96x120 mm insulating box with 64x64 mm front shield
Black selector lever with three switch positions
Conforms to IEC EN 60947-3 international standards
Suitable for industrial control panels and power distribution cabinets
Comprehensive technical documentation and instruction manuals included

Technical Specifications

Specification	Value
Product Type	Rotary Cam Switch - Changeover with Off
Model	PR 26
Number of Poles	3
Rated Current	32 A
Maximum Operating Voltage	690 V AC
Rated Operation AC 21	32 A
Number of Switch Positions	3 (including zero/off position)
Contact Type	Positive opening with double breaking
Insulation Class	Class II
Box Dimensions	96 x 120 mm
Front Shield Size	64 x 64 mm
Degree of Protection (IP)	IP65
Installation Type	Surface mounted device
Control Element	Wing knob (Black selector lever)
Standards Compliance	IEC EN 60947-3
Reference Number	027742
EAN Code	3245060277420
Manufacturer	Legrand
Number of Contacts	6
Retraction in 0-Position	No

Order Legrand PR 26 Rotary Cam Switch 3P 32A Changeover | 27742 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
