Shop Legrand PR 17 Rotary Cam Switch Changeover 2P 20A | 27731 In Iraq Best Prices
Professional rotary cam switch with changeover and off position, 2-pole, 20A rated, IP65 protected, ideal for circuit selection and equipment status control in industrial applications.

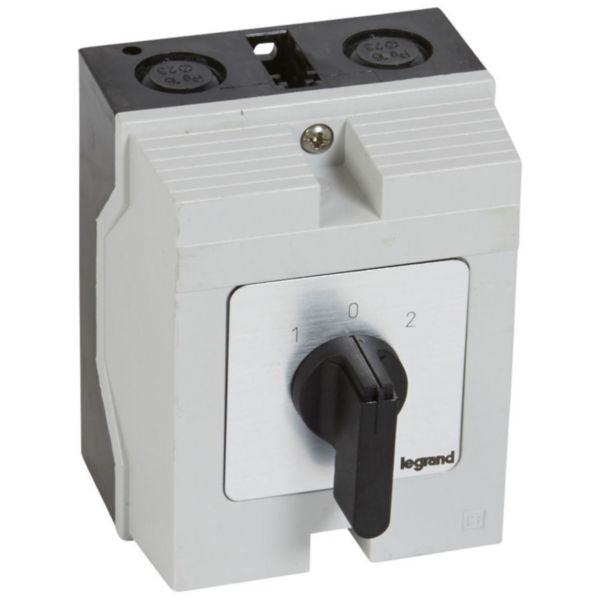

The Legrand PR 17 Rotary Cam Switch is a professional-grade electrical selector switch designed for circuit selection and status control in industrial and commercial applications. This changeover switch with off position features a 2-pole configuration with a maximum rated current of 20A at AC 21 rating, housed in a compact 96x120mm insulating box. The device incorporates positive opening contacts with double breaking of poles, ensuring safe and reliable operation in demanding electrical environments.
This surface-mounted cam switch is engineered to meet IEC EN 60947-3 standards and provides IP65 protection rating for the front side, making it suitable for various installation conditions. The switch features a black or grey/black selector lever with clear position marking on the faceplate, allowing operators to easily identify the current circuit status. With three switch positions including a neutral off position, this device provides complete control over circuit selection and changeover operations.
The PR 17 range represents Legrand's commitment to quality and reliability in industrial control solutions. The boxed design ensures class II insulation protection, while the dual-breaking contact system guarantees positive opening for enhanced safety. This rotary cam switch is ideal for applications requiring manual selection between multiple circuits or equipment status monitoring, making it an essential component in electrical distribution systems, machinery control panels, and industrial switchboards.
Key Features
- Changeover switch with neutral off position for safe circuit selection
- 2-pole configuration with maximum 20A AC rated current at AC 21
- Positive opening contacts with double breaking of poles for enhanced safety
- IP65 protection rating on front side suitable for various environments
- Class II insulated boxed device with 96x120mm compact housing
- Conforms to IEC EN 60947-3 international standards
- Surface-mounted device with clear position marking on faceplate
- Black or grey/black selector lever for easy operation and visibility
Technical Specifications
| Specification |
Value |
| Product Type | Rotary Cam Switch - Changeover Switch with Off Position |
| Range | PR 17 |
| Number of Poles | 2 |
| Maximum Rated Current (Iu) | 20 A |
| AC Rating Category | AC 21 |
| Maximum Rated Operation Voltage (Ue AC) | 690 V |
| Number of Switch Positions | 3 (including off/zero position) |
| Contact System | Positive opening with double breaking of poles |
| Housing Type | Insulating box - Complete device in housing |
| Housing Dimensions | 96 x 120 mm |
| Front Shield Size | 64 x 64 mm |
| Degree of Protection (IP) | IP65 (front side) |
| Insulation Class | Class II |
| Installation Type | Surface mounted device |
| Control Element | Wing knob (rotary selector lever) |
| Selector Lever Color | Black or Grey/Black |
| Compliance Standards | IEC EN 60947-3 |
| Reference Number | 027731 |
| EAN Code | 3245060277314 |
| Manufacturer | Legrand |
Order Legrand PR 17 Rotary Cam Switch Changeover 2P 20A | 27731 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
