Shop Legrand PR 12 Rotary Cam Switch 3P 16A Changeover | 27755 In Iraq Best Prices
Professional 3-pole rotary cam switch with 16A rating, 690V AC maximum, IP65 surface-mounted box, positive-opening double-break contacts, ideal for industrial circuit selection and switching applications.

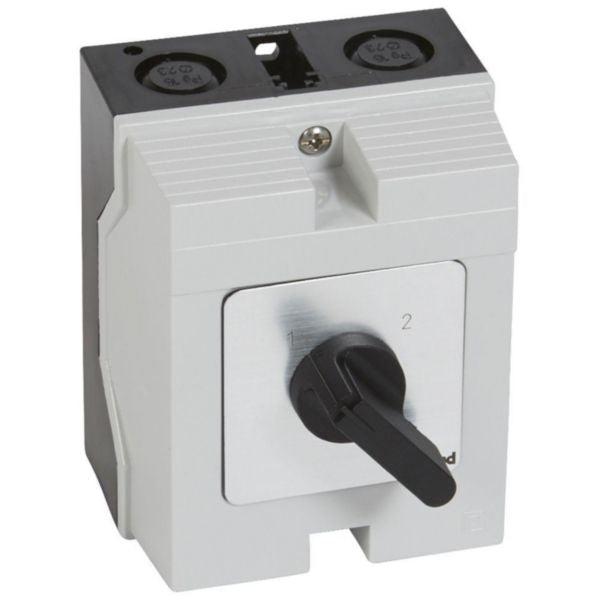

The Legrand PR 12 Rotary Cam Switch is a professional-grade electrical control device designed for selecting and changing the state of electrical circuits with precision and reliability. Rated at 16A with a maximum voltage of 690V AC, this 3-pole changeover switch features 6 contacts with positive-opening and double-break contact technology, ensuring safe circuit switching operations. The device is housed in an IP65-rated surface-mounted box measuring 96x120mm, providing excellent protection against dust and water ingress suitable for both indoor and outdoor industrial applications.
This cam switch operates as a changeover switch without an off position, making it ideal for applications requiring continuous circuit selection between two states. The black or grey/black selector lever provides clear visual indication of the circuit state, while the faceplate includes marking for easy identification. Conforming to international standards IEC EN 60947-3, the switch features positive-opening contacts with double-breaking of all poles, ensuring maximum safety and reliability in demanding industrial environments.
The PR 12 model is part of Legrand's comprehensive range of industrial control products, delivering class II insulation and robust construction suitable for switchboards, power cabinets, and control panels. With its compact 96x120mm form factor and high current rating of 16A, this cam switch is an excellent choice for industrial machinery control, motor switching, and circuit management applications where reliable selection and switching of electrical circuits is critical.
Key Features
- 3-pole changeover switch without off position for continuous circuit selection
- Positive-opening and double-break contacts ensuring maximum safety and reliability
- IP65-rated surface-mounted box (96x120mm) with excellent dust and water protection
- Rated for 16A at up to 690V AC with 6 switching contacts
- Black or grey/black selector lever with clear circuit state indication
- Class II insulation for enhanced electrical safety
- Conforms to international standard IEC EN 60947-3
- Compact form factor suitable for switchboards and control panels
Technical Specifications
| Specification |
Value |
| Product Type | Rotary Cam Switch - Changeover |
| Model | PR 12 |
| Number of Poles | 3 |
| Number of Positions | 2 (without off position) |
| Rated Current (Iu) | 16 A |
| Maximum Rated Voltage AC (Ue) | 690 V |
| Number of Contacts | 6 |
| Contact Type | Positive-opening, double-break contacts |
| Degree of Protection (IP) | IP65 |
| Box Size | 96 x 120 mm |
| Front Shield Size | 64 x 64 mm |
| Installation Type | Surface mounted |
| Control Element | Wing knob selector lever |
| Selector Lever Color | Black or Grey/Black |
| Insulation Class | Class II |
| Standards Compliance | IEC EN 60947-3 |
| Reference Number | 027755 |
| EAN Code | 3245060277550 |
| Manufacturer | Legrand |
| With Zero Position | No |
