Description

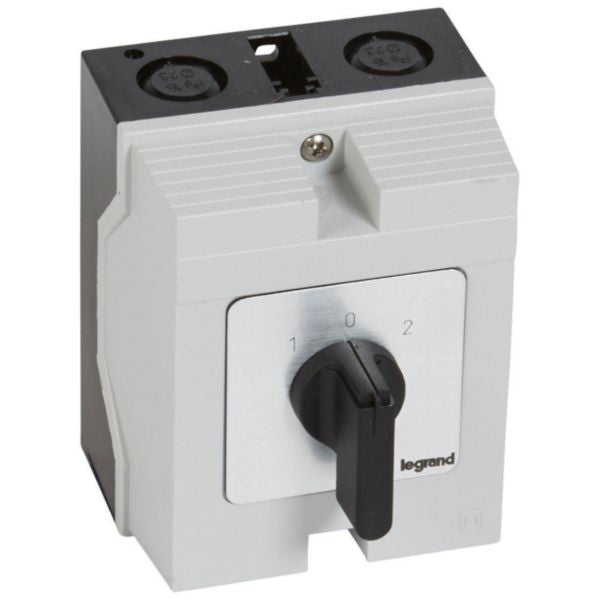

Shop Legrand PR 12 Rotary Cam Switch 2P 16A Changeover | 27726 In Iraq Best Prices

Industrial rotary cam switch with 2 poles, 16A rating, changeover with off position, IP65 protected in 96x120mm box, conforming to IEC EN 60947-3 standards

The Legrand PR 12 Rotary Cam Switch is a professional-grade industrial control device designed for selecting and changing the status of circuits with precision and reliability. This changeover switch features two poles with a rated current of 16A and includes an off position for complete circuit control. The device is housed in a durable 96x120mm box with an IP65 protection rating, making it suitable for various industrial and commercial applications. With positive opening contacts and double breaking of poles, this switch ensures safe and reliable operation in demanding environments. This rotary cam switch conforms to international standards IEC EN 60947-3 and features a black or grey/black selector lever with clear marking on the faceplate. The switch is a boxed class II device with three switch positions, allowing operators to easily manage circuit status. The contacts feature positive opening and double breaking of poles for enhanced safety and reliability. With a maximum rated operation voltage of 690V AC and a rated permanent current of 16A, this switch is engineered to handle demanding electrical applications with consistent performance. The PR 12 range represents Legrand's commitment to quality industrial electrical components. The surface-mounted design with wing knob control element provides intuitive operation, while the comprehensive documentation and certifications (UL, CSA, and CB) ensure compliance with international safety standards. This rotary cam switch is ideal for applications requiring reliable circuit selection and status indication in industrial control panels and distribution systems.

Key Features

Changeover switch with three positions including off position for complete circuit control
Two poles with 16A rated current and 690V maximum operating voltage
Positive opening contacts with double breaking of poles for enhanced safety
IP65 protection rating suitable for demanding industrial environments
Class II boxed device with clear faceplate marking and selector lever control

Technical Specifications

Specification	Value
Product Type	Rotary Cam Switch - Changeover with Off
Range	PR 12
Number of Poles	2
Rated Current (Iu)	16 A
Maximum Operating Voltage AC (Ue)	690 V
Number of Switch Positions	3
Off Position	Yes
Box Dimensions	96 x 120 mm
IP Rating (Front)	IP65
Device Construction	Surface Mounted
Control Element	Wing Knob (Selector Lever)
Device Class	Class II
Contact Type	Positive Opening with Double Breaking
Standards Compliance	IEC EN 60947-3
Reference Number	027726
EAN Code	3245060277260
Manufacturer	Legrand
Certifications	UL, CSA, CB (OIML)
Retraction in 0-Position	No
Complete Device in Housing	Yes

Order Legrand PR 12 Rotary Cam Switch 2P 16A Changeover | 27726 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
