Shop Legrand PR12 3-Phase Motor Cam Switch Forward Reverse 16A | 27770 In Iraq Best Prices
Professional 3-phase motor cam switch with 16A capacity, forward/reverse control, 5 contacts, IP65 protection, and Class II housing for industrial applications.

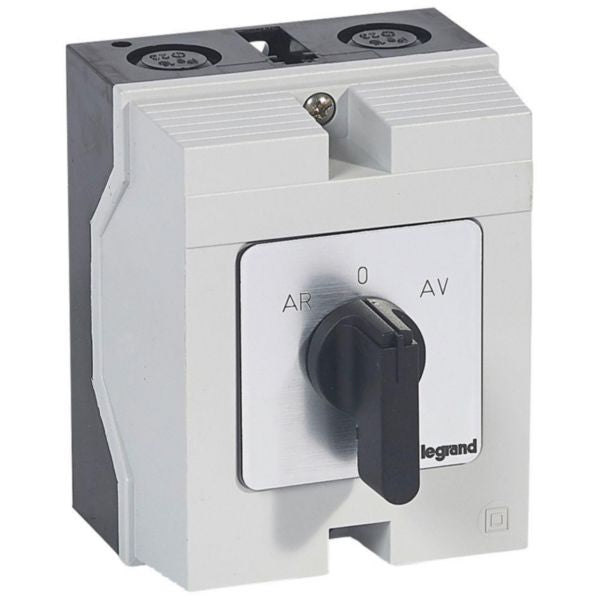

The Legrand PR12 is a professional-grade 3-phase motor cam switch designed for forward/reverse control with single speed operation. This boxed Class II device features a robust 16A rated current capacity at 690V, making it suitable for industrial and commercial motor control applications. The switch incorporates 5 contacts with positive opening and double breaking of poles, ensuring reliable isolation and enhanced safety during operation. With IP65 front protection rating, this device is well-suited for demanding environments where dust and moisture protection is essential.
This reverser switch includes a zero (off) position, allowing operators to safely stop motor operations with a dedicated neutral position. The device features a wing knob control element and a 64x64mm faceplate with clear marking for easy identification. Compliant with IEC EN 60947-3 standard, the PR12 meets international safety and performance requirements. The black selector lever provides intuitive operation, while the surface-mounted design enables straightforward installation in electrical panels and control cabinets.
The PR12 is engineered for applications requiring frequent motor direction changes without sacrificing safety or reliability. Its positive opening contacts ensure that both poles break simultaneously, preventing potential hazards from incomplete circuit interruption. The complete housing design protects internal components from environmental contaminants, extending the device's operational lifespan in industrial settings.
Key Features
- 16A rated current capacity at 690V for reliable motor control
- 5 contacts with positive opening and double breaking of poles for enhanced safety
- 3-position reverser switch with dedicated zero (off) position
- IP65 front protection rating for dust and moisture resistance
- Class II boxed device with complete housing for environmental protection
- Compliant with IEC EN 60947-3 international standard
- Wing knob control element with black selector lever for intuitive operation
- 64x64mm faceplate with clear marking for easy identification
- Surface-mounted design for straightforward panel installation
- Suitable for frequent motor direction changes in industrial settings
Technical Specifications
| Specification |
Value |
| Product Type | 3-Phase Motor Cam Switch Reverser |
| Rated Current | 16A |
| Maximum Rated Voltage | 690V AC |
| Number of Contacts | 5 contacts with positive opening |
| Switch Positions | 3 positions with zero (off) position |
| Control Element | Wing knob with black selector lever |
| Front Protection Rating | IP65 |
| Faceplate Size | 64x64 mm |
| Device Classification | Class II boxed device |
| Installation Type | Surface mounted |
| International Standard | IEC EN 60947-3 |
| Contact Type | Positive opening with double breaking of poles |
| Reference Number | 027770 |
| EAN Code | 3245060277703 |
| Application | Industrial motor control and direction reversal |
