Shop Legrand PR 63 Rotary Cam Switch 4P 63A Changeover | 27766 In Iraq Best Prices

Professional 4-pole rotary cam changeover switch with 63A capacity, IP55 protection, positive opening contacts, and dual pole breaking for reliable industrial circuit selection and equipment status monitoring.

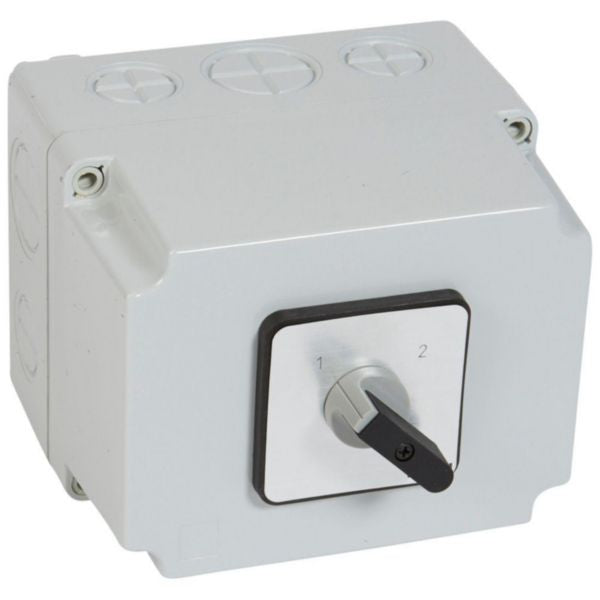

The Legrand PR 63 Rotary Cam Switch is a professional-grade changeover switch designed for circuit selection and status monitoring in industrial applications. This 4-pole device features a maximum rated capacity of 63 A at AC 21 rating with 690 V operational voltage, making it suitable for demanding electrical environments. The switch is housed in a 135x170 mm insulating box with IP55 protection rating, ensuring reliable performance in various environmental conditions. This cam switch incorporates positive opening contacts with double breaking of poles, providing enhanced safety and reliability. The device features a black or grey/black selector lever with clear position markings for easy identification of equipment status. Conforming to international standards IEC EN 60947-3, it meets rigorous safety and performance requirements. The boxed design provides Class II insulation protection, making it ideal for both industrial control panels and switchboard installations. The changeover switch configuration without off position allows for seamless circuit switching between two states. With 8 contacts across 4 poles and 2 switch positions, this rotary cam switch is engineered for long-term durability and consistent performance. The surface-mounted construction and wing knob control element provide intuitive operation, while the comprehensive technical documentation and certifications ensure compliance with international electrical standards.

Key Features

4-pole changeover switch with 63A maximum rated capacity
Positive opening contacts with double breaking of poles for enhanced safety
IP55 protection rating in 135x170 mm insulating box
690V AC maximum rated operation voltage
Conforms to IEC EN 60947-3 international standards
Class II insulation protection in boxed design
Black or grey/black selector lever with clear position markings
2 switch positions without off capability
8 total contacts across 4 poles
Wing knob control element for intuitive operation

Technical Specifications

Specification	Value
Product Type	Rotary Cam Changeover Switch
Number of Poles	4 poles
Maximum Rated Current	63 A at AC 21
Maximum Rated Voltage	690 V AC
Number of Switch Positions	2 positions without off
Number of Contacts	8 contacts total
Box Dimensions	135 x 170 mm
Protection Rating	IP55
Insulation Class	Class II
Control Element	Wing knob selector lever
Selector Lever Color	Black or grey/black
Contact Type	Positive opening with double breaking
Installation Type	Surface mounted device
Standards Compliance	IEC EN 60947-3
Reference Number	027766
EAN Code	3245060277666
Manufacturer	Legrand
Range	PR 63

Order Legrand PR 63 Rotary Cam Switch 4P 63A Changeover | 27766 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
