Shop Legrand PR 26 Rotary Cam Switch 3-Phase Motor Starter | 27783 In Iraq Best Prices

Professional 3-phase rotary cam switch with 11 kW rating, 32 A capacity, IP65 protection, and dual-speed Dahlander configuration for reliable industrial motor control applications.

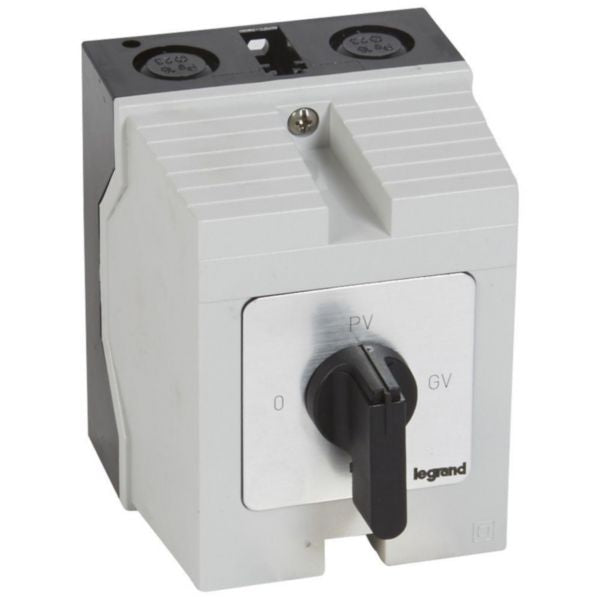

The Legrand PR 26 Rotary Cam Switch is a professional-grade 3-phase motor switch starter designed for industrial applications requiring reliable circuit selection and status monitoring. This boxed device features positive opening contacts with double breaking of poles, ensuring safe and dependable operation in demanding environments. The cam switch integrates advanced switching technology conforming to international standards IEC EN 60947-3, making it ideal for motor control applications requiring one-way operation with two-speed Dahlander configuration. This rotary cam switch delivers exceptional performance with a maximum AC 3 rating of 11 kW and a rated permanent current of 32 A at 690 V, providing robust power handling capabilities. The device is housed in a durable insulating box with IP65 protection rating for standard sizes (76 x 76 mm and 96 x 120 mm), ensuring protection against water jets and dust ingress. The intuitive wing knob control with black or grey/black selector lever enables easy operation and clear status indication through marked faceplate positioning. Engineered for surface-mounted installation, this Class II device features 8 contacts and 3 switch positions including a zero (off) position for complete circuit control. The positive opening mechanism and double-breaking design provide enhanced safety and reliability for critical motor control applications. With comprehensive technical documentation and UL recognition, the Legrand PR 26 Rotary Cam Switch represents a premium solution for industrial motor switching and protection requirements.

Key Features

3-phase motor switch starter with 1-way operation and 2-speed Dahlander configuration
Maximum AC 3 rating of 11 kW with 32 A rated permanent current at 690 V
Positive opening contacts with double breaking of poles for enhanced safety
IP65 protection rating for 76x76 mm and 96x120 mm boxes, IP55 for 135x170 mm
Class II insulating box with surface-mounted installation and wing knob control
8 contacts with 3 switch positions including zero (off) position
Conforms to IEC EN 60947-3 international standards
Black or grey/black selector lever with marked faceplate for clear status indication
UL recognized for reliability and safety compliance
Comprehensive technical documentation and instruction materials included

Technical Specifications

Specification	Value
Product Type	Rotary Cam Switch - 3-Phase Motor Starter
Function	3-phase motor switch starter, 1-way operation, 2-speed Dahlander
Maximum Rated AC 3 Power	11 kW
Rated Permanent Current (Iu)	32 A
Maximum Rated Operation Voltage (Ue AC)	690 V
Number of Contacts	8
Number of Switch Positions	3 positions with zero (off) position
Type of Switch	Reverser
Device Construction	Surface mounted device
Control Element Type	Wing knob with selector lever
Selector Lever Color	Black or grey/black
Front Shield Size	64x64 mm
Degree of Protection (IP) - Front	IP65 (for 76x76 mm and 96x120 mm boxes), IP55 (for 135x170 mm boxes)
Class	Class II
Housing Type	Insulating box (Boxed device)
Contact Design	Positive opening with double breaking of poles
Installation Type	Surface mounted
International Standard Compliance	IEC EN 60947-3
Reference Number	027783
EAN Code	3245060277833
Brand	Legrand
Range	PR 26
Retraction in 0-Position	No
Certification	UL recognized

Order Legrand PR 26 Rotary Cam Switch 3-Phase Motor Starter | 27783 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
