Description

Shop Legrand PR 21 Rotary Cam Switch 4P 25A Changeover | 27760 In Iraq Best Prices

Professional rotary cam switch with 4 poles, 25A capacity, positive opening contacts, IP65 rated for industrial circuit selection and control applications.

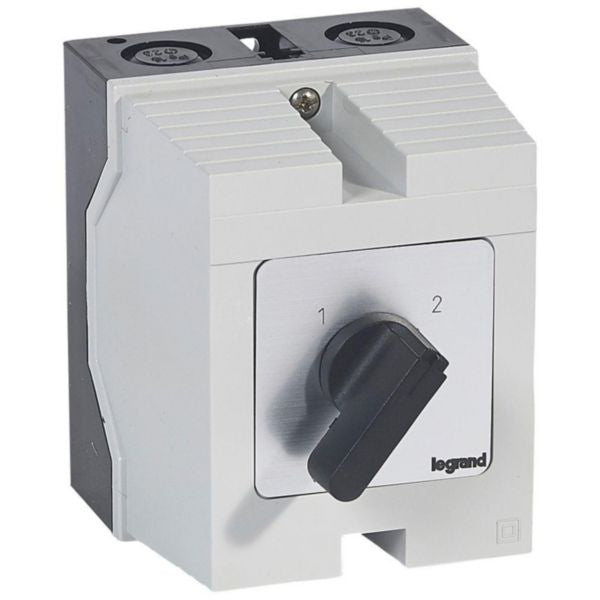

The Legrand Rotary Cam Switch PR 21 is a professional-grade changeover switch designed for selecting and changing the status of circuits in industrial and commercial applications. This surface-mounted device features 4 poles with a maximum rated current of 25A at AC 21 rating and operates at up to 690V. The switch incorporates positive opening contacts with double breaking of poles, ensuring reliable circuit control and safety. The unit is housed in a compact 96x120mm insulating box with IP65 degree of protection, making it suitable for various installation environments. This cam switch is engineered for continuous operation in demanding applications where circuit selection and status monitoring are critical. The black or grey/black selector lever provides clear visual indication of the equipment state according to the switch position. With 8 contacts and 2 switch positions without an off position, this changeover switch enables seamless circuit transitions. The device conforms to international standards IEC EN 60947-3 and features a 64x64mm front shield for standard panel mounting. The PR 21 series represents Legrand's commitment to quality and reliability in industrial control solutions. Its robust construction, positive opening contacts, and double pole breaking mechanism ensure long-term durability and safe operation. The surface-mounted design allows for straightforward installation in electrical enclosures and control panels, making it an ideal choice for industrial applications requiring dependable circuit switching and status indication.

Key Features

4 poles with 8 contacts for comprehensive circuit control and switching
Positive opening contacts with double breaking mechanism for enhanced safety
Changeover switch without off position for continuous circuit operation
IP65 degree of protection in compact 96x120mm insulating box
Rated for 25A maximum current at AC 21 with 690V operating voltage
Conforms to international standards IEC EN 60947-3
Black or grey/black selector lever for clear status indication
Surface-mounted design for easy installation in electrical enclosures

Technical Specifications

Specification	Value
Product Type	Rotary Cam Switch - Level Switch
Number of Poles	4 poles
Number of Contacts	8 contacts
Switch Function	Changeover switch without off position
Number of Switch Positions	2 positions
Maximum Rated Current	25A at AC 21 rating
Maximum Operating Voltage	690V AC
Control Element	Wing knob (rotary selector lever)
Selector Lever Color	Black or grey/black
Housing Box Dimensions	96 x 120 mm
Front Shield Size	64 x 64 mm
Degree of Protection	IP65
Installation Type	Surface mounted device
Housing Type	Insulating box - Class II
Contact Type	Positive opening with double breaking
Standards Compliance	IEC EN 60947-3
SKU	027760
EAN Code	3245060277604
Manufacturer	Legrand
Series	PR 21

Order Legrand PR 21 Rotary Cam Switch 4P 25A Changeover | 27760 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
