Description

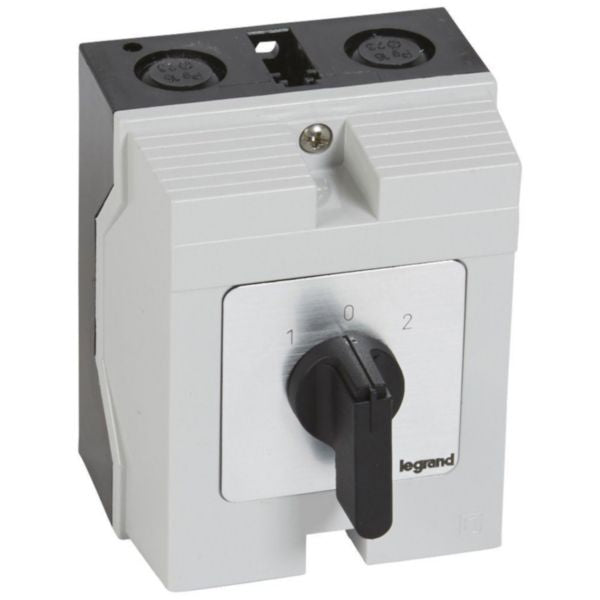

Shop Legrand PR 21 Rotary Cam Switch 3P 25A Changeover | 27737 In Iraq Best Prices

Professional 3-pole rotary cam switch with 25A rating, IP65 protection, and changeover with off position for industrial electrical applications

The Legrand PR 21 Rotary Cam Switch is a professional-grade changeover switch with off position designed for industrial and commercial applications. This three-pole switch features a rated current of 25A at AC 21 with a maximum voltage rating of 690V, making it suitable for demanding electrical installations. The device is housed in a compact 96x120mm box with IP65 protection rating, ensuring reliable operation in various environmental conditions. The switch incorporates positive opening contacts with double breaking of poles for enhanced safety and circuit protection. This cam switch is engineered to select and change the status of circuits while providing clear visual indication of equipment status through its selector lever position. The device features a black or grey/black selector lever with marked faceplate for easy identification and operation. Conforming to IEC EN 60947-3 standards, this surface-mounted device is classified as class II insulating box equipment. The PR 21 range offers three switch positions including a zero (off) position, providing complete circuit control. With six contacts total and double breaking of all poles, this switch ensures reliable and safe circuit switching operations. The rotary cam switch features a wing knob control element with a 64x64mm front shield size, providing ergonomic and convenient operation. This industrial-grade component is ideal for panel mounting applications and offers excellent durability and long service life. The switch's robust construction and compliance with international standards make it a preferred choice for electrical distribution systems, motor control circuits, and industrial switchboards.

Key Features

Three-pole changeover switch with off position for complete circuit control
Rated current of 25A at AC 21 with maximum voltage of 690V
IP65 protection rating for reliable operation in various environments
Positive opening contacts with double breaking of all poles for enhanced safety
Class II insulating box design with compact 96x120mm housing
Conforms to IEC EN 60947-3 international standards
Black or grey/black selector lever with marked faceplate
Surface-mounted device with wing knob control element
Six total contacts with three switch positions
64x64mm front shield size for ergonomic operation

Technical Specifications

Specification	Value
Product Type	Rotary Cam Switch - Changeover with Off
Model/Range	PR 21
Number of Poles	3
Rated Current (Iu)	25 A
Maximum Rated Voltage (Ue AC)	690 V
Switch Positions	3 positions including zero (off)
Number of Contacts	6
Contact Configuration	Positive opening with double breaking of poles
Housing Material	Insulating box - Class II
Box Dimensions	96 x 120 mm
Front Shield Size	64 x 64 mm
Degree of Protection (IP)	IP65
Control Element	Wing knob (lever)
Selector Lever	Black or grey/black with marked faceplate
Installation Type	Surface mounted
Standards Compliance	IEC EN 60947-3
Retraction in 0-Position	No
Reference Number	027737
EAN Code	3245060277376
Manufacturer	Legrand

Order Legrand PR 21 Rotary Cam Switch 3P 25A Changeover | 27737 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
