Shop Legrand PR 21 Rotary Cam Switch 2P 25A 690V Changeover | 27736 In Iraq Best Prices
Professional rotary cam switch with 2 poles, 25A rating, 690V AC, IP65 protection, and changeover function with off position for reliable circuit control in industrial applications.

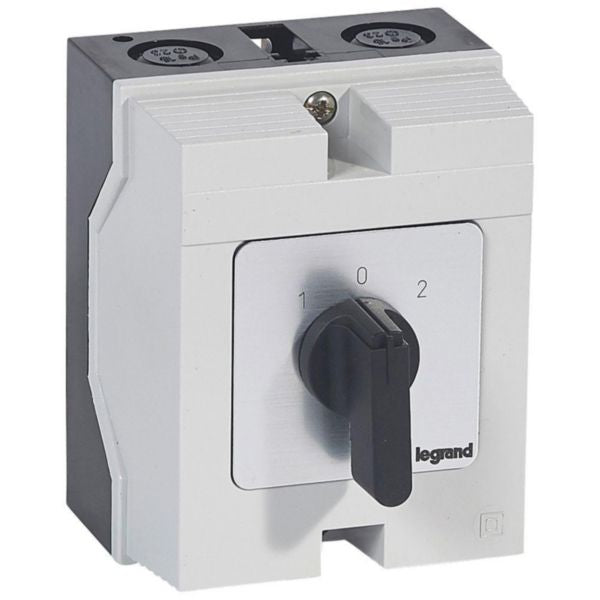

The Legrand PR 21 Rotary Cam Switch is a professional-grade electrical control device designed for selecting and changing the state of electrical circuits. This changeover switch with off position is rated for 25A at up to 690V AC, making it suitable for a wide range of industrial and commercial applications. The device features 2 poles with 4 contacts and positive opening with double breaking of poles for enhanced safety and reliability. The PR 21 cam switch is housed in a surface-mounted insulated box measuring 96x120mm, providing IP65 protection rating to ensure durability in various environmental conditions.
This cam switch incorporates advanced design features including a wing knob control element for easy operation and positioning. The device conforms to international standards IEC EN 60947-3, ensuring compatibility and safety across different regions and applications. The black or grey/black selector lever provides clear visual indication of the circuit state, while the marked faceplate ensures easy identification of switch positions. With class II construction and positive opening contacts, this switch offers superior protection against electrical hazards and ensures reliable circuit control in demanding industrial environments.
The PR 21 rotary cam switch is ideal for applications requiring frequent circuit switching, equipment status monitoring, and reliable circuit isolation. Its robust construction, combined with comprehensive protection features and international compliance, makes it an excellent choice for industrial control panels, machinery installations, and commercial electrical systems. The device's compact design and surface-mounted configuration allow for flexible installation options while maintaining professional appearance and functionality.
Key Features
- 2 poles with 4 contacts for reliable circuit switching and control
- Changeover switch with off position for flexible circuit management
- Rated 25A at up to 690V AC for industrial and commercial applications
- IP65 protection rating for surface-mounted 96x120mm insulated box
- Positive opening with double breaking of poles for enhanced safety
- Conforms to IEC EN 60947-3 international standards
- Class II construction for superior electrical hazard protection
- Wing knob control element for easy operation and positioning
- Black or grey/black selector lever with marked faceplate
- Surface-mounted configuration for flexible installation options
Technical Specifications
| Specification |
Value |
| Product Type | Rotary Cam Switch - Changeover with Off Position |
| Number of Poles | 2P |
| Number of Contacts | 4 |
| Rated Current | 25A |
| Maximum Voltage | 690V AC |
| Number of Positions | 3 (including off position) |
| Control Element | Wing Knob |
| Box Dimensions | 96x120mm |
| Front Shield Size | 64x64mm |
| Protection Rating | IP65 |
| Installation Type | Surface Mounted |
| Construction Class | Class II |
| Contact Type | Positive Opening with Double Breaking |
| Standards Compliance | IEC EN 60947-3 |
| Selector Lever Color | Black or Grey/Black |
| SKU | 027736 |
| EAN Code | 3245060277369 |
| Manufacturer | Legrand |
| Range | PR 21 |
| Retraction in 0-Position | No |
