Shop Legrand PR 17 Rotary Cam Switch 3-Phase Motor Starter | 27777 In Iraq Best Prices
Professional Legrand PR 17 3-phase motor switch starter with 7.5 kW AC3 rating, IP65 protection, positive opening contacts, and dual-speed Dahlander configuration for industrial motor control applications.

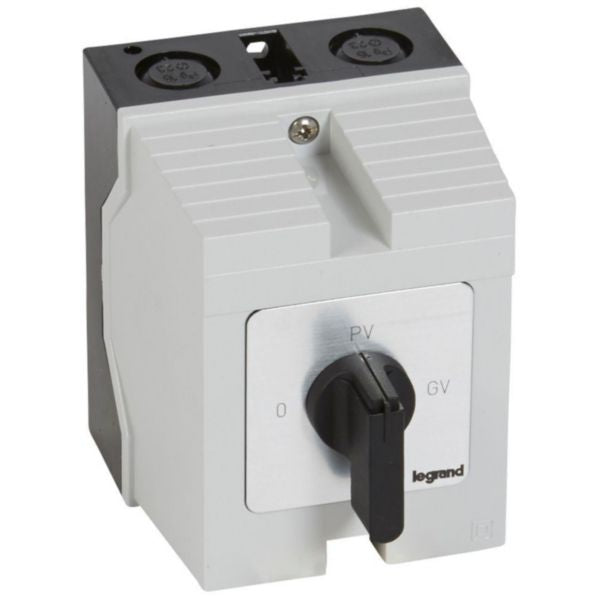

The Legrand PR 17 Rotary Cam Switch is a professional-grade 3-phase motor switch starter designed for industrial applications requiring reliable circuit selection and status monitoring. This boxed device features a 1-way, 2-speed Dahlander configuration with positive opening contacts and double breaking of poles, ensuring maximum safety and control precision. Compliant with IEC EN 60947-3 standards, it delivers exceptional performance with a maximum AC3 rating of 7.5 kW and rated permanent current of 20A at 690V.
This surface-mounted cam switch is engineered for demanding industrial environments with IP65 protection rating for standard boxes (76 x 76 and 96 x 120 mm) and IP55 for larger 135 x 170 mm boxes. The device features 8 contacts with three switch positions including a zero (off) position, providing complete control over motor operations. The black or grey/black selector lever with clear markings enables intuitive operation and easy identification of equipment status, making it ideal for motor control applications in factories, workshops, and industrial facilities.
The PR 17 model incorporates Class II insulating box construction with UL recognition certification, ensuring compliance with international safety standards. Its robust design with positive opening contacts and double breaking mechanism provides reliable circuit isolation and protection against electrical faults, making it an essential component for professional motor control systems.
Key Features
- 3-phase motor switch starter with 1-way, 2-speed Dahlander configuration
- Maximum AC3 rated power of 7.5 kW with 20A permanent current at 690V
- 8 contacts with 3 switch positions including zero (off) position
- Positive opening contacts with double breaking of poles for enhanced safety
- IP65 protection rating (76-120mm boxes) and IP55 (135-170mm boxes)
- Class II insulating box construction with UL recognition certification
- Surface-mounted device with black/grey selector lever and clear markings
- Compliant with IEC EN 60947-3 international safety standards
Technical Specifications
| Specification |
Value |
| Product Type | Rotary Cam Switch - 3-Phase Motor Starter |
| Model | PR 17 |
| SKU/Reference | 027777 |
| EAN Code | 3245060277772 |
| Function | 3-phase motor switch starter, 1-way, 2-speed Dahlander |
| Maximum AC3 Rating | 7.5 kW |
| Rated Permanent Current (Iu) | 20 A |
| Maximum Voltage (Ue) | 690 V AC |
| Number of Contacts | 8 |
| Switch Positions | 3 positions |
| Zero Position | Yes |
| Retraction in 0-Position | No |
| Type of Switch | Reverser |
| Device Construction | Surface mounted device |
| Housing | Complete device in housing, Class II insulating box |
| Control Element | Wing knob (black or grey/black selector lever) |
| Front Shield Size | 64 x 64 mm |
| Degree of Protection (IP) - Front | IP65 (76x76 and 96x120mm boxes), IP55 (135x170mm boxes) |
| Contact Type | Positive opening with double breaking of poles |
| Standards Compliance | IEC EN 60947-3, UL recognized |
| Certification | UL recognition cULus-280206-E57817 |
| Presentation | Boxed device with black or grey/black selector lever, faceplate with marking |
| Application | Industrial motor control, circuit selection and status monitoring |
