Shop Legrand PR 12 Rotary Cam Switch 4P 16A Changeover | 27756 In Iraq Best Prices
Professional 4-pole rotary cam switch with 16A capacity, IP65 protection, and positive-opening contacts for reliable circuit control and selection in industrial applications.

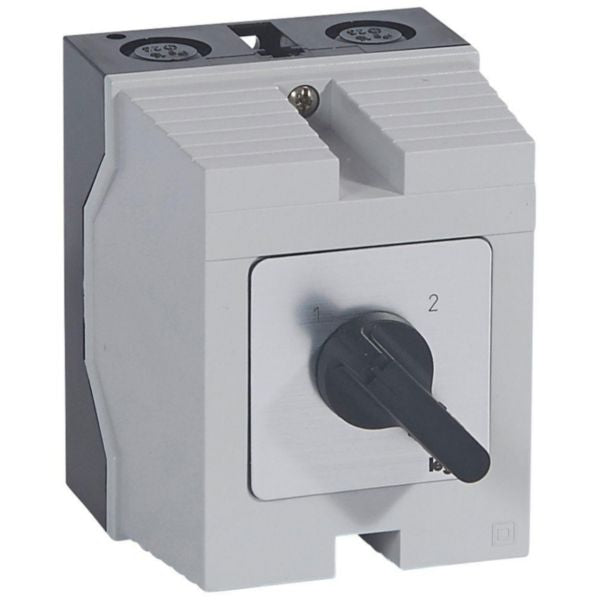

The Legrand PR 12 Rotary Cam Switch is a professional-grade electrical switching device designed for selecting and changing the state of electrical circuits. This 4-pole, 16-ampere changeover switch without off position features a durable 96x120mm surface-mounted box with IP65 protection rating, making it suitable for various industrial and commercial applications. The device incorporates positive-opening contacts with double breaking of poles, ensuring safe and reliable circuit management. Compliant with IEC EN 60947-3 standards, this switch is ideal for applications requiring frequent circuit state changes with enhanced safety features.
The PR 12 cam switch operates at a maximum rated voltage of 690V AC and is equipped with 8 contacts across 4 poles, providing comprehensive circuit control capabilities. The device features a black or grey/black selector lever with a clearly marked faceplate for easy identification of equipment status according to the position of the selector lever. As a class II boxed device, it offers excellent protection and reliability for demanding industrial environments. The positive-opening contacts ensure double breaking of poles, which is critical for safety-sensitive applications.
This rotary cam switch is engineered for longevity and consistent performance, with a rated permanent current capacity of 16A at AC 21 operation. The surface-mounted construction allows for easy installation and maintenance, while the comprehensive technical documentation and compliance certifications ensure compatibility with international electrical standards. Whether used in control panels, switchboards, or standalone circuit management applications, the Legrand PR 12 delivers dependable performance and safety.
Key Features
- 4-pole changeover switch without off position for circuit state selection
- 16A maximum rated current with 690V AC operation voltage
- IP65 protection rating in 96x120mm surface-mounted box
- Positive-opening contacts with double breaking of poles for enhanced safety
- IEC EN 60947-3 compliant with UL and CSA certifications
- Class II boxed device construction for superior protection
- Black or grey/black selector lever with marked faceplate
- 8 total contacts across 4 poles for comprehensive circuit control
Technical Specifications
| Specification |
Value |
| Product Type | Rotary Cam Switch - Changeover Switch |
| Number of Poles | 4 poles |
| Number of Contacts | 8 contacts |
| Rated Current (AC 21) | 16 A |
| Maximum Operating Voltage | 690 V AC |
| Number of Switch Positions | 2 positions |
| Off Position | Without off position |
| Device Construction | Surface mounted device |
| Box Dimensions | 96 x 120 mm |
| Front Shield Size | 64 x 64 mm |
| Protection Rating | IP65 |
| Control Element | Wing knob (selector lever) |
| Contact Type | Positive-opening contacts with double breaking |
| Device Class | Class II boxed device |
| Standards Compliance | IEC EN 60947-3 |
| Certifications | UL, CSA, OC/CB |
| Selector Lever Color | Black or grey/black |
| Reference Number | 027756 |
| EAN Code | 3245060277567 |
| Manufacturer | Legrand |
Order Legrand PR 12 Rotary Cam Switch 4P 16A Changeover | 27756 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
