Professional weatherproof TV-R-SAT socket with IP55 protection, supporting DAB+ radio and satellite frequencies. Halogen-free thermoplastic construction with IK08 impact strength for reliable multimedia signal distribution.

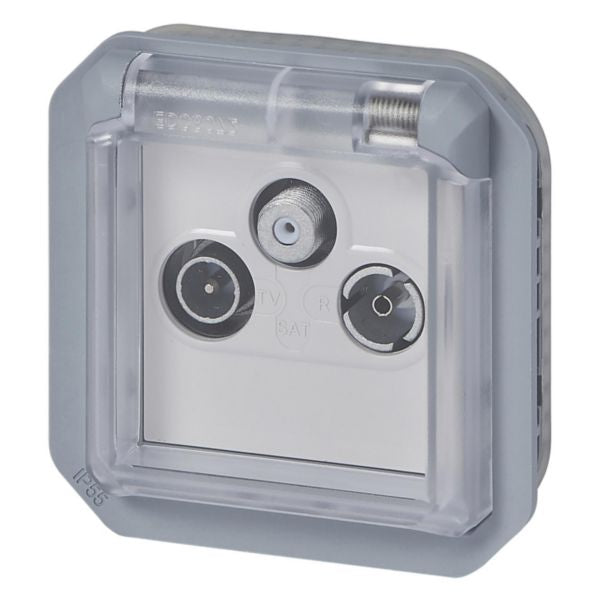

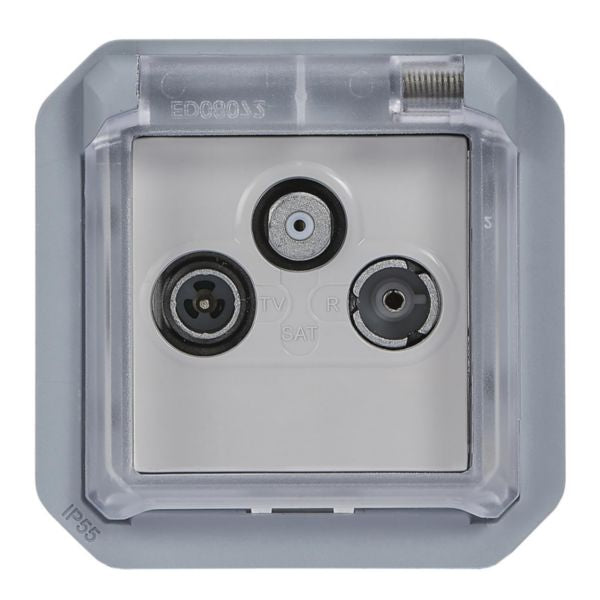

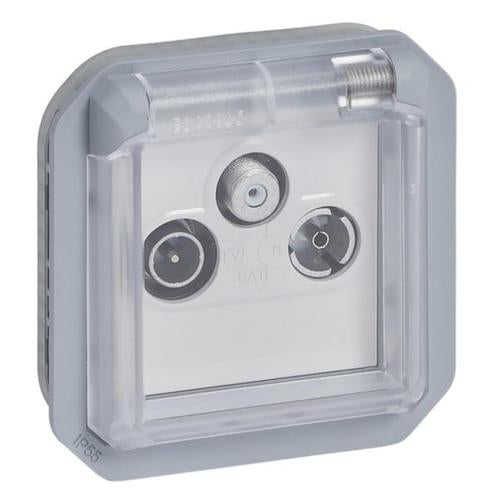

The Legrand Plexo TV-R-SAT Socket is a professional-grade weatherproof outlet designed for television, radio, and satellite reception applications. This grey mechanism socket features advanced frequency band support ranging from 87.5-240 MHz for DAB+ and radio reception, with SAT frequency bands from 950-2400 MHz for satellite television. Built with halogen-free thermoplastic material, this socket offers IP55 degree of protection and IK08 impact strength rating, making it suitable for both indoor and outdoor installations. The socket accommodates a 40mm minimum built-in installation box depth and operates reliably within temperature ranges of -5°C to 35°C. With its modular 3-module system design and screw mounting method, this Plexo socket integrates seamlessly into modern building infrastructure and provides reliable connectivity for multimedia entertainment systems.
Designed for durability and performance, the Legrand Plexo TV-R-SAT Socket features a matt finish with RAL 7046 color specification. The socket's terminal marking indication ensures proper installation and maintenance, while its compact dimensions of 70.5mm width and height with 47.7mm depth allow for flexible installation in various mounting configurations. This product combines professional-grade engineering with practical design, making it an ideal choice for residential and commercial applications requiring reliable TV, radio, and satellite signal distribution.
The Plexo TV-R-SAT Socket represents Legrand's commitment to quality electrical infrastructure, offering installers and end-users a dependable solution for entertainment system connectivity. Its weatherproof construction, combined with comprehensive frequency band coverage, ensures optimal signal reception in all weather conditions while maintaining consistent performance throughout its operational lifespan.
Key Features
- IP55 weatherproof protection rating for indoor and outdoor installations
- Supports DAB+ radio reception (87.5-240 MHz) and satellite TV (950-2400 MHz)
- Halogen-free thermoplastic material for safe and environmentally responsible construction
- IK08 impact strength rating ensuring durability against mechanical damage
- 3-module system design with screw mounting for flexible installation options
- Terminal marking indication for proper installation and maintenance
- Operating temperature range -5°C to 35°C for year-round reliability
- Compact dimensions (70.5mm x 70.5mm x 47.7mm) for space-efficient mounting
- Matt grey finish (RAL 7046) for aesthetic integration with modern buildings
- Minimum 40mm built-in installation box depth requirement for easy integration
Technical Specifications
| Specification |
Value |
| Product Reference | 069558L |
| EAN Code | 3414971878907 |
| Brand | Legrand |
| Product Line | Plexo |
| Socket Type | TV/RD/SAT (Television, Radio, Satellite) |
| Radio Frequency Band | 87.5-240 MHz (DAB+ and FM Radio) |
| Satellite Frequency Band | 950-2400 MHz |
| DAB+ Support | Yes |
| Number of Modules | 3 modules |
| Mounting Method | Screw mounting |
| Material | Halogen-free thermoplastic |
| Color | Grey |
| RAL Color Code | RAL 7046 |
| Surface Finish | Matt |
| Surface Protection | Untreated |
| Degree of Protection (IP Rating) | IP55 |
| Impact Strength Rating (IK) | IK08 |
| Device Width | 70.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 47.7 mm |
| Minimum Installation Box Depth | 40 mm |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Terminal Marking | Yes |
| Antimicrobial Treatment | No |
| Warranty | Standard Legrand warranty coverage |
Order Legrand Plexo TV-R-SAT Socket Grey Mechanism | 069558L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
