Shop Legrand Plexo IP44 Socket Outlet 32A 3P+E 230V Grey | 55875 In Iraq Best Prices
Professional 32A weatherproof socket outlet with IP44 protection, 3P+E configuration, surface mounting, and IK08 impact resistance for reliable power distribution in demanding environments.

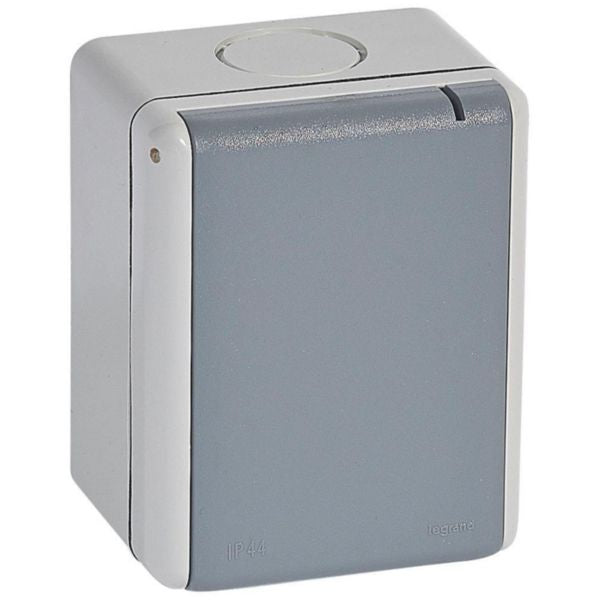

The Legrand Plexo Socket Outlet IP44 is a professional-grade electrical socket designed for surface mounting applications. This robust outlet features a 32A capacity with 3-phase plus earth (3P+E) configuration, operating at 230V~. The IP44 protection rating ensures excellent protection against dust and water splashes, making it suitable for both indoor and outdoor environments. With its grey thermoplastic construction and IK08 impact resistance, this socket outlet delivers superior durability and reliability for demanding installations.

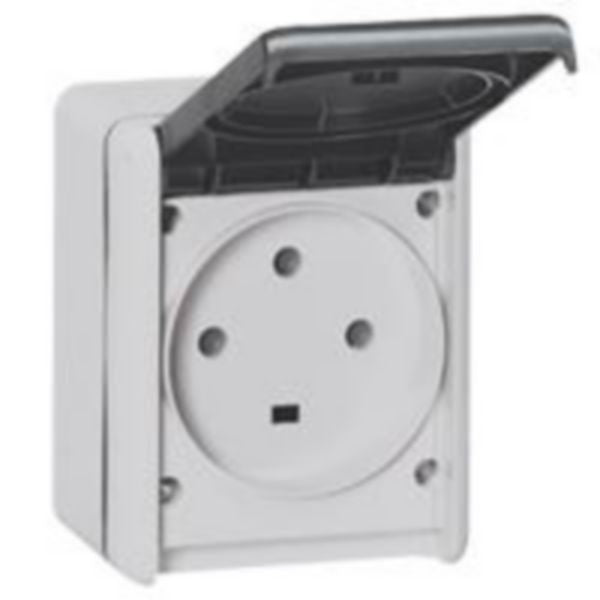

This socket outlet is engineered with screw terminals for secure cable connections and includes a hinged lid for enhanced protection when not in use. The device dimensions are 96mm width, 119mm height, and 74mm depth, providing a compact yet functional design. Compatible with membrane glands up to Ø25mm, it offers flexibility in installation configurations. The halogen-free material ensures environmental compliance and safety standards. The Plexo range is renowned for weatherproof performance, making this outlet ideal for industrial, commercial, and residential applications requiring reliable power distribution in challenging conditions.
With a frequency range of 50-60 Hz and nominal voltage of 400V, this socket outlet meets international electrical standards. The flat protective contact design and complete surface-mounting system with full cover plate ensure safe and convenient operation. The product reference number 055875 (EAN: 3245060558758) identifies this specific model in the Legrand catalog, confirming authenticity and compatibility with other Plexo components.
Key Features
- IP44 protection rating for dust and water splash resistance
- 32A nominal current capacity with 3-phase plus earth (3P+E) configuration
- Weatherproof surface mounting design with hinged protective lid
- IK08 impact resistance for durability in demanding installations
- Halogen-free thermoplastic construction for environmental safety
- Screw terminal connections for secure cable attachment
- Compatible with membrane glands up to Ø25mm for flexible installation
- 400V nominal voltage with 50-60Hz frequency compatibility
- Compact dimensions (96x119x74mm) for space-efficient installation
- Flat protective contact design for enhanced safety
Technical Specifications
| Specification |
Value |
| Product Name | Plexo Socket Outlet IP44 3P+E |
| Reference Number | 055875 |
| EAN Code | 3245060558758 |
| Manufacturer | Legrand |
| Nominal Current | 32 A |
| Nominal Voltage | 400 V |
| Phase Configuration | 3P+E (3-Phase + Earth) |
| Operating Voltage | 230 V~ |
| Frequency Range | 50-60 Hz |
| Protection Rating | IP44 |
| Impact Resistance | IK08 |
| Mounting Type | Surface Mounting |
| Connection Type | Screw Terminals |
| Material | Thermoplastic |
| Halogen-Free | Yes |
| Color | Grey |
| RAL Color Number | 7046 |
| Device Width | 96 mm |
| Device Height | 119 mm |
| Device Depth | 74 mm |
| Number of Socket Outlets | 1 |
| Number of Active Contacts | 3 Round |
| Protective Contact Type | Flat |
| Hinged Lid | Yes |
| Membrane Gland Compatibility | Up to Ø25 mm |
| Assembly Type | Basic Element with Full Cover Plate |
| Number of Modules | 2 |
| Surface Finishing | Matt |
| Voltage Type | AC |
| Cable Support | Other |
Order Legrand Plexo IP44 Socket Outlet 32A 3P+E 230V Grey | 55875 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
