Description

Shop Legrand Plexo IP44 Socket Outlet 20A 3P+N+E Grey | 55708 In Iraq Best Prices

Professional weatherproof 3-phase socket outlet with IP44 protection, 20A capacity, and flush-mounting design for industrial and commercial applications

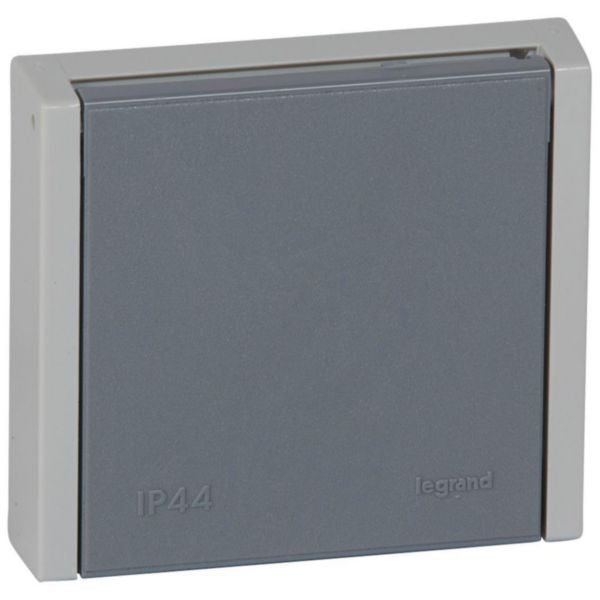

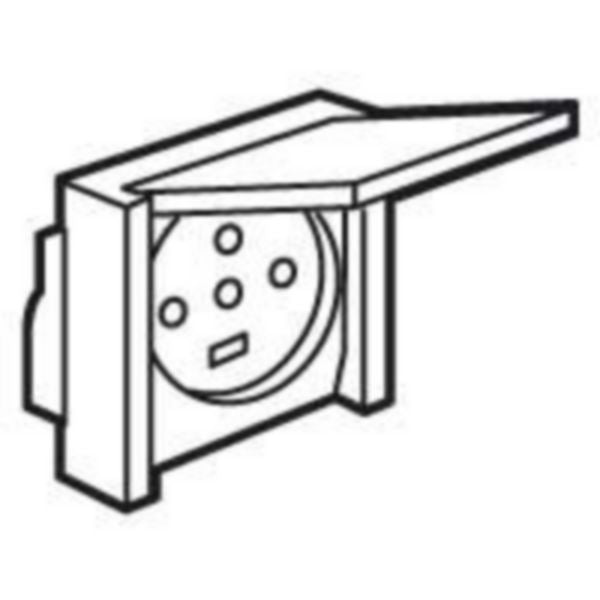

The Legrand Plexo Socket Outlet is a professional-grade electrical outlet designed for demanding applications requiring weatherproof and impact-resistant solutions. This three-phase socket outlet features IP44 protection rating, making it suitable for both indoor and outdoor installations where moisture and dust protection are essential. With a 20A nominal current capacity and 400V nominal voltage, this flush-mounted outlet provides reliable power distribution for industrial and commercial environments. This socket outlet is constructed from halogen-free thermoplastic material, ensuring safety and environmental compliance. The unit features a hinged lid for protection when not in use, screw terminals for secure cable connections (2.5-4mm² cable capacity), and is compatible with flexible or rigid cables. The IK08 impact strength rating provides excellent durability against physical damage, making it ideal for harsh working conditions. The Plexo Socket Outlet offers a complete flush-mounting solution with IP55 protection for the enclosure system. It includes terminal marking indication for easy identification and operates reliably across a temperature range of -5 to 40°C. The grey finish (RAL 7046 similar) provides a professional appearance while the loop-through function allows for convenient installation and connection flexibility in electrical systems.

Key Features

IP44 weatherproof protection rating for indoor and outdoor use
20A nominal current capacity at 400V three-phase operation
Halogen-free thermoplastic construction for safety and environmental compliance
IK08 impact strength rating for durability in harsh conditions
Hinged protective lid and screw terminal connections for secure installation
Loop-through function for convenient electrical system integration
Temperature operating range -5 to 40°C for reliable performance
Flush-mounting design with complete IP55 enclosure system
Grey finish (RAL 7046 similar) for professional appearance
Terminal marking indication for easy identification and maintenance

Technical Specifications

Specification	Value
Product Type	Three-Phase Socket Outlet
Brand	Legrand
Series	Plexo
Reference Number	055708
EAN Code	3245060557089
Nominal Current	20 A
Nominal Voltage	400 V
Number of Phases	3 (3P+N+E)
Frequency	50-60 Hz
Protection Rating	IP44
Impact Strength Rating	IK08
Installation Type	Flush Mounting
Material	Halogen-Free Thermoplastic
Surface Finish	Matt
Color	Grey
RAL Color Code	7046 (Similar)
Device Width	84 mm
Device Height	77 mm
Device Depth	35 mm
Number of Modules	2
Assembly Arrangement	Basic Element with Full Cover Plate
Connection Type	Screw Terminals
Cable Section	2.5-4 mm²
Cable Type	Flexible or Rigid
Protective Contact	Flat
Earthing Pin	Yes
Number of Active Contacts	4 (Round)
Socket Outlets Count	1
Hinged Lid	Yes
Loop Through Function	Yes
Terminal Marking Indication	Yes
Operating Temperature Range	-5 to 40 °C
Storage Temperature Range	-10 to 40 °C
Voltage Type	AC
Fastening Type	Mounting with Screw
Enclosure System Protection	IP55
Prewired	No
Power Delivery	No
With Enhanced Contact Protection	No
Overvoltage Protection	No
Fault Current Protection	No

Order Legrand Plexo IP44 Socket Outlet 20A 3P+N+E Grey | 55708 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
