Description

Shop Legrand Plexo German Standard Socket Outlet Screw Terminals White | 069639L In Iraq Best Prices

Premium weatherproof German standard socket outlet with enhanced protection, screw terminals, and IP55 rating for reliable outdoor and indoor use

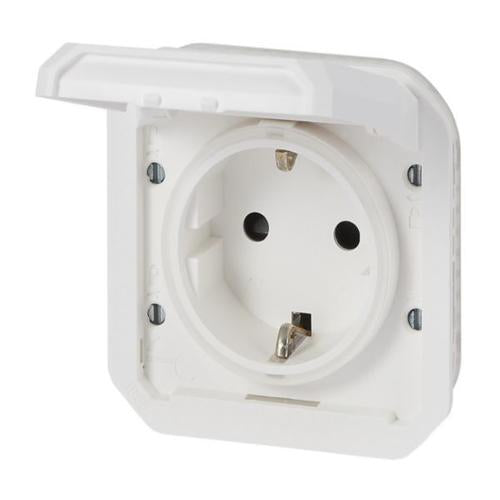

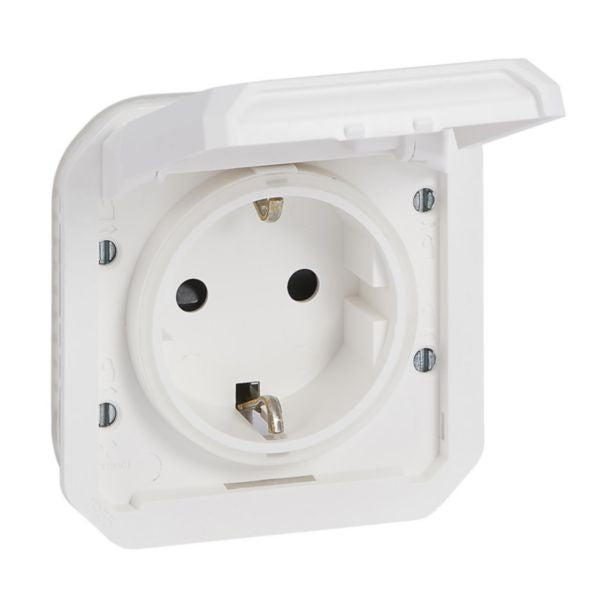

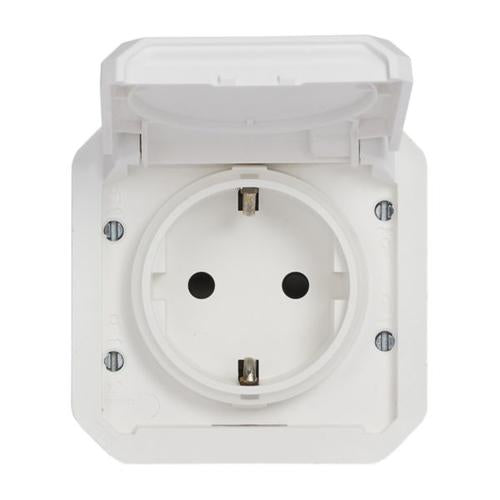

The Legrand Plexo German standard socket outlet with screw terminals is a premium weatherproof electrical outlet designed for demanding indoor and outdoor applications. This socket outlet features CEE 7/3 (type F) protection contact configuration with enhanced contact protection and a hinged protective lid, making it ideal for environments requiring IP55 degree of protection. The white finish and modern design integrate seamlessly with contemporary architectural styles while maintaining robust functionality. This socket outlet is engineered with screw terminal connections supporting cable sections of 1.5-2.5 mm², allowing for flexible or rigid cable installation. The device operates at a nominal voltage of 250V with a nominal current rating of 16A, suitable for 50-60 Hz frequency applications. With its 2-module assembly arrangement and basic element with full cover plate design, this outlet provides reliable power distribution for residential and light commercial installations. The Plexo socket outlet exceeds standard safety requirements with IK08 degree of impact strength and is specifically designed for heavy conditions according to VDE standards. Its thermoplastic, halogen-free material construction ensures environmental compliance and safety. The device dimensions of 70.5mm width x 70.5mm height x 48mm depth make it compatible with standard installation boxes, while the operating temperature range of -10 to 40°C ensures reliable performance across varying climate conditions.

Key Features

  • CEE 7/3 (Type F) protective contact socket outlet with enhanced contact protection
  • Weatherproof design with IP55 degree of protection and hinged protective lid
  • Screw terminal connections supporting 1.5-2.5 mm² cable sections
  • IK08 impact strength rating suitable for heavy-duty applications per VDE standards
  • Halogen-free thermoplastic construction for environmental safety compliance
  • 16A nominal current at 250V, 50-60 Hz frequency compatibility
  • 2-module assembly with full cover plate and white finish
  • Operating temperature range -10 to 40°C for diverse climate conditions

Technical Specifications

Specification Value
Product TypeGerman Standard Socket Outlet with Protective Contact
ModelCEE 7/3 (Type F) Socket Outlet
Reference Number069639L
EAN Code3414971880627
Nominal Voltage250V AC
Nominal Current16A
Frequency50-60 Hz
Number of Socket Outlets1
Number of Active Contacts2 (Round)
Number of Modules2
Connection TypeScrew Terminal
Cable Section Support1.5-2.5 mm²
Cable TypeFlexible or Rigid
Degree of Protection (IP)IP55 (Connected Plug: IP44)
Impact Strength (IK)IK08
Device Width70.5 mm
Device Height70.5 mm
Device Depth48 mm
ColorWhite (RAL 9003)
MaterialThermoplastic
Halogen FreeYes
Surface FinishingMatt
Hinged LidYes
Enhanced Contact ProtectionYes
Operating Temperature Range-10 to +40°C
Storage Temperature Range-25 to +60°C
VDE Heavy Conditions SuitableYes
Assembly ArrangementBasic Element with Full Cover Plate
Mounting MethodScrew Mounting
Voltage TypeAC

Order Legrand Plexo German Standard Socket Outlet Screw Terminals White | 069639L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
