Shop Legrand Plexo German Standard Socket Outlet Screw Terminals Grey | 069571L In Iraq Best Prices
Premium weatherproof German standard socket outlet with 16A/250V rating, screw terminals, IP44/IP55 protection, halogen-free thermoplastic construction, and IK08 impact resistance for demanding residential and commercial installations.

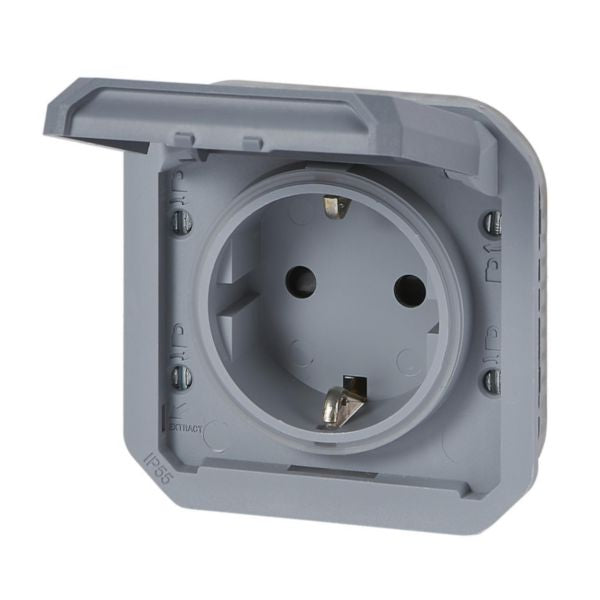

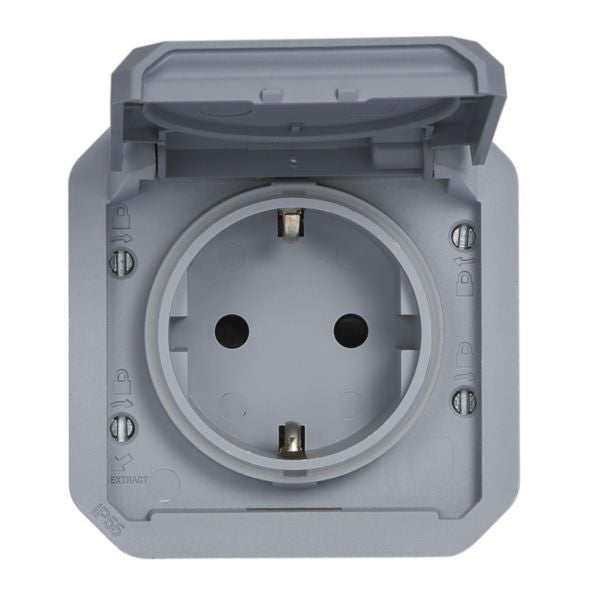

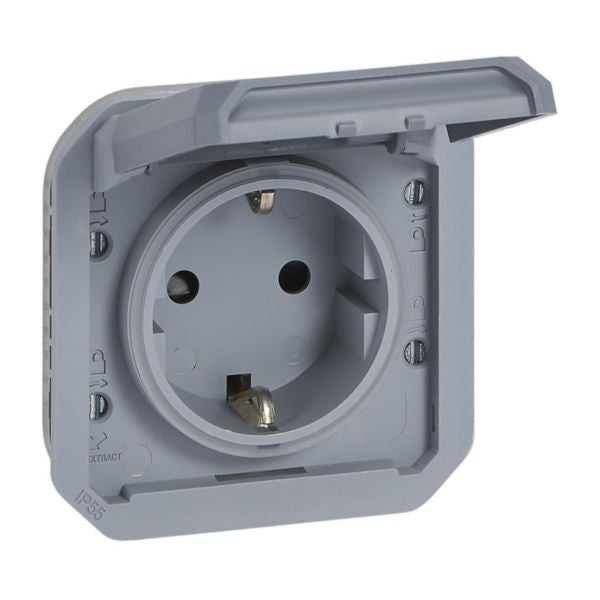

The Legrand Plexo German Standard Socket Outlet with Screw Terminals in Grey is a premium weatherproof electrical outlet designed for demanding indoor and outdoor applications. This socket outlet features a robust thermoplastic construction with halogen-free materials, ensuring safety and durability in harsh environments. The product is rated IP44 when connected with a plug and IP55 suitable for installation, providing excellent protection against dust and water ingress. With a nominal current rating of 16A at 250V AC, this outlet is ideal for residential and commercial installations requiring reliable power distribution.
This socket outlet implements the German standard CEE 7/3 (Type F) configuration with two active round contacts and enhanced contact protection. The screw terminal connection type supports flexible or rigid cables with a cross-section of 1.5-2.5mm², making it versatile for various installation scenarios. The grey color (RAL 7046) provides a modern aesthetic that blends seamlessly with contemporary building designs. Operating temperature range from -10°C to 40°C ensures consistent performance across diverse climatic conditions.
The Plexo range is engineered for heavy-duty applications according to VDE standards, featuring a hinged lid for convenient access and protection. With an impact resistance rating of IK08, this outlet withstands physical stress in high-traffic areas. The device dimensions of 70.5mm width and height with 46mm depth ensure compatibility with standard electrical installation boxes. Terminal marking indication provides clear identification for safe installation and maintenance.
Key Features
- German Standard CEE 7/3 (Type F) socket configuration with two active round contacts
- IP44 protection when connected with plug and IP55 suitable for installation in weatherproof applications
- Screw terminal connection supporting flexible or rigid cables 1.5-2.5mm² cross-section
- Halogen-free thermoplastic material ensuring safety and environmental compliance
- IK08 impact resistance rating for durability in high-traffic and demanding environments
- Hinged lid design for convenient access and enhanced contact protection
- 16A/250V AC nominal rating suitable for heavy-duty VDE applications
- Operating temperature range -10°C to 40°C for consistent performance
- Terminal marking indication for safe installation and maintenance
- Modern grey color (RAL 7046) for aesthetic appeal in contemporary installations
Technical Specifications
| Specification |
Value |
| Socket Type | German Standard CEE 7/3 (Type F) with protective contact |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| IP Rating (Connected) | IP44 |
| IP Rating (Suitable for) | IP55 |
| Impact Resistance | IK08 |
| Material | Thermoplastic, Halogen-free |
| Color | Grey (RAL 7046) |
| Connection Type | Screw Terminals |
| Cable Section | 1.5-2.5 mm² |
| Cable Nature | Flexible or Rigid |
| Device Width | 70.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 46 mm |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -25°C to 60°C |
| Number of Modules | 2 |
| Assembly Arrangement | Basic element with full cover plate |
| Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| VDE Heavy Duty Rated | Yes |
| Reference Number | 069571L |
| EAN | 3414971879195 |
| Terminal Marking | Yes |
Order Legrand Plexo German Standard Socket Outlet Screw Terminals Grey | 069571L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
