Shop Legrand Plexo French Standard Socket Outlet Grey Weatherproof | 069551L In Iraq Best Prices
Premium 16A weatherproof French standard socket outlet with IP55 protection, hinged lid, enhanced contact protection, and halogen-free construction for reliable outdoor and indoor use.

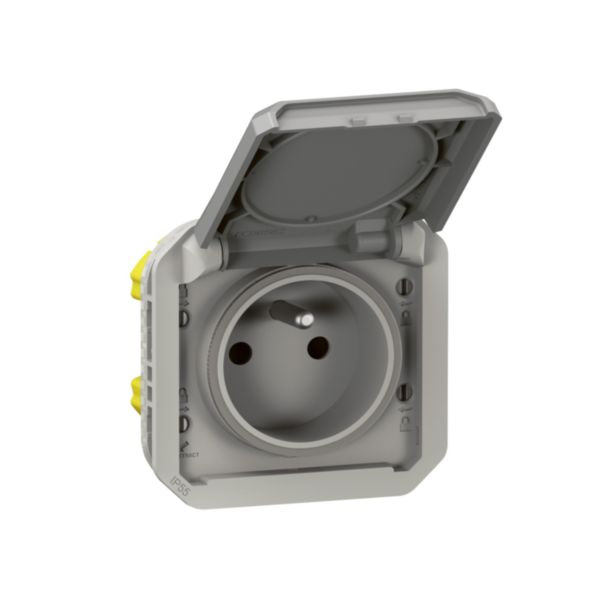

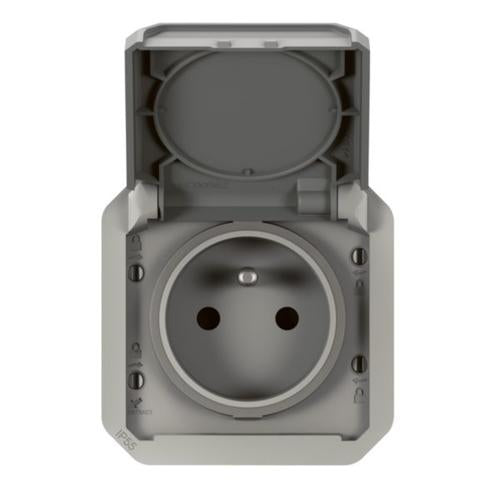

The Legrand Plexo French Standard Socket Outlet in Grey is a premium weatherproof electrical outlet designed for demanding residential and commercial applications. This 2-module socket outlet features advanced protection mechanisms including enhanced contact protection and a hinged lid, making it ideal for both indoor and outdoor installations. With an IP55 degree of protection and IK08 impact strength rating, this outlet provides exceptional durability and safety in challenging environments. The socket accommodates a nominal current of 16A at 250V with 50-60Hz frequency compatibility, ensuring reliable power distribution for standard electrical loads.
Crafted from halogen-free thermoplastic material, this Plexo outlet combines environmental responsibility with superior performance. The push-in clamp connection type allows for flexible or rigid cable installation with terminal capacity ranging from 1.5 to 2.5 mm². The grey finish (RAL 7046) provides an aesthetically pleasing appearance that complements modern architectural designs. Operating across a temperature range of -5 to 40°C, this outlet maintains consistent performance in diverse climate conditions. The device dimensions of 70.5mm width and height with 46mm depth ensure seamless integration into standard installation configurations.
This Plexo socket outlet meets stringent European standards and certifications including NF, CEBEC, and CE compliance. The enhanced contact protection system prevents accidental contact with live components, while the weatherproof design with hinged lid protects against moisture ingress. Perfect for applications requiring reliable, safe, and durable electrical connectivity, this outlet represents the pinnacle of French electrical engineering standards. The reference number 069551L with EAN 3414971878792 ensures authentic product identification and traceability.
Key Features
- IP55 weatherproof protection rating for outdoor and challenging environments
- IK08 impact strength rating providing exceptional durability against physical damage
- Enhanced contact protection system preventing accidental electrical contact hazards
- Hinged protective lid with secure closure mechanism for moisture and debris prevention
- Halogen-free thermoplastic material ensuring environmental compliance and safety
- 16A nominal current capacity at 250V with 50-60Hz frequency compatibility
- Push-in clamp connection system supporting flexible or rigid cable installation
- Terminal capacity of 1.5-2.5 mm² for versatile wiring configurations
- Grey finish (RAL 7046) complementing modern architectural aesthetics
- Operating temperature range -5 to 40°C for climate adaptability
Technical Specifications
| Specification |
Value |
| Product Type | French Standard Socket Outlet |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Degree of Protection (IP) | IP55 |
| Impact Strength Rating (IK) | IK08 |
| Number of Modules | 2 |
| Number of Socket Outlets | 1 |
| Earthing Pin | Yes |
| Protective Contact Type | Round |
| Connection Type | Push-in clamp |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Material | Halogen-free thermoplastic |
| Colour | Grey |
| RAL Number | 7046 |
| Device Width | 70.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 46 mm |
| Built-in Depth | 28.5 mm |
| Operating Temperature Range | -5 to 40 °C |
| Storage Temperature Range | -25 to 60 °C |
| Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| Surface Finishing | Matt |
| Mounting Method | Mounting with screw |
| Reference Number | 069551L |
| EAN Code | 3414971878792 |
| Voltage Type | AC |
| Terminal Marking Indication | Yes |
Order Legrand Plexo French Standard Socket Outlet Grey Weatherproof | 069551L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
