Shop Legrand Plexo French Standard Socket Outlet 16A Grey Tamperproof | 069553L In Iraq Best Prices
Premium weatherproof French standard socket outlet with 16A capacity, IP55 protection, tamperproof design, and hinged lid for safe reliable power distribution in residential and commercial settings.

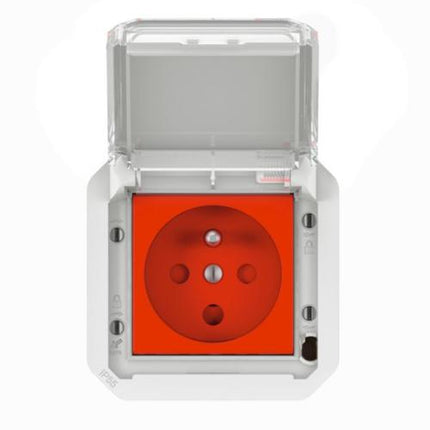

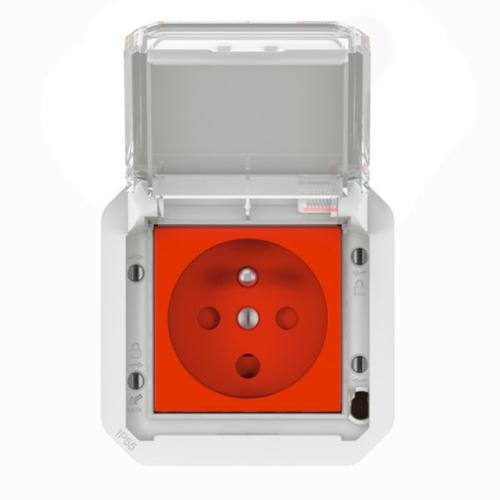

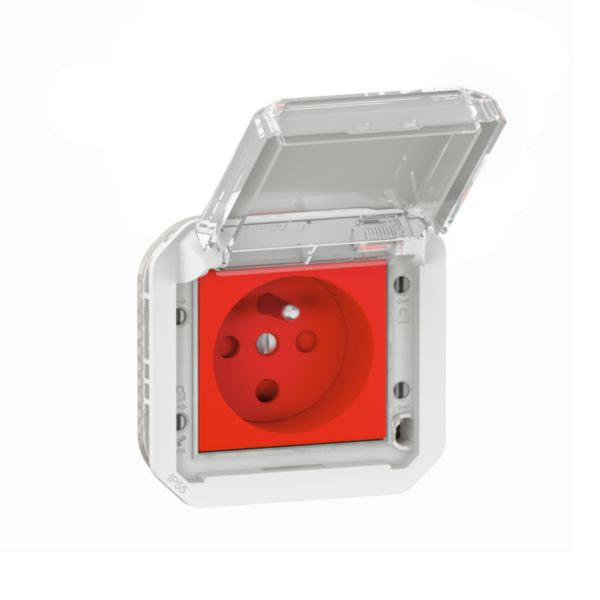

The Legrand Plexo French standard socket outlet tamperproof mechanism in grey is a premium weatherproof electrical outlet designed for residential and commercial applications. This robust outlet features IP55 protection rating, making it suitable for humid and dusty environments. With a nominal current rating of 16A at 250V, it provides reliable power distribution for various electrical devices and appliances. The tamperproof design with enhanced contact protection ensures safety, particularly in environments where child safety is a concern. The outlet incorporates a hinged lid for additional protection against dust and moisture ingress, and features round protective contacts that meet French electrical standards.
This socket outlet is constructed from high-quality thermoplastic material that is halogen-free, ensuring environmental compliance and safety during operation. The device dimensions of 70.5mm x 70.5mm x 50mm make it compatible with standard installation boxes. It operates efficiently across 50-60 Hz frequency range and maintains optimal performance between -5°C and 40°C. The push-in clamp connection type allows for flexible or rigid cable connections with terminal capacity ranging from 1.5 to 2.5 mm². The IK08 impact strength rating provides excellent durability against mechanical stress.
The Plexo range is renowned for combining aesthetic appeal with functional excellence. This particular model features a sleek grey finish (RAL 7046) that complements modern interior designs. The basic element with central cover plate assembly arrangement ensures seamless integration with existing electrical installations. With its comprehensive technical specifications and robust construction, this French standard socket outlet represents an ideal choice for projects requiring weatherproof, safe, and reliable electrical distribution solutions.
Key Features
- IP55 weatherproof protection rating suitable for humid and dusty environments
- Tamperproof design with enhanced contact protection for child safety
- 16A nominal current at 250V with 50-60 Hz frequency compatibility
- Hinged lid with round protective contacts meeting French electrical standards
- Halogen-free thermoplastic construction ensuring environmental compliance
- IK08 impact strength rating providing excellent mechanical durability
- Push-in clamp connection type supporting flexible or rigid cables 1.5-2.5mm²
- Sleek grey finish (RAL 7046) complementing modern interior designs
- Operating temperature range -5°C to 40°C for year-round reliability
- 2-module assembly with basic element and central cover plate configuration
Technical Specifications
| Specification |
Value |
| Product Model | Plexo French Standard Socket Outlet Tamperproof |
| Reference Number | 069553L |
| EAN Code | 3414971878853 |
| Manufacturer | Legrand |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency Range | 50-60 Hz |
| Protection Rating (IP) | IP55 |
| Impact Strength Rating (IK) | IK08 |
| Colour | Grey (RAL 7046) |
| Material | Thermoplastic, Halogen-free |
| Device Width | 70.5 mm |
| Device Height | 70.5 mm |
| Device Depth | 50 mm |
| Built-in Depth | 28.5 mm |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Connection Type | Push-in clamp |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Protective Contact Type | Round |
| Earthing Pin | Yes |
| Enhanced Contact Protection | Yes |
| Hinged Lid | Yes |
| Operating Temperature Range | -5°C to 40°C |
| Storage Temperature Range | -25°C to 60°C |
| Voltage Type | AC |
| Assembly Arrangement | Basic element with central cover plate |
| Mounting Method | Screw fastening |
| Surface Finishing | Matt |
| Concurrently Switching Neutral Conductor | No |
| USB Ports | None |
| Smart Home Compatible | No |
| Power Delivery | No |
| Terminal Marking | Yes |
