Shop Legrand Plexo 2-Gang Surface Box IP55 Anthracite | 069602L In Iraq Best Prices
Premium IP55-rated 2-gang weatherproof surface box with flexible membrane glands, horizontal/vertical installation capability, and UV-protected anthracite finish for professional electrical installations.

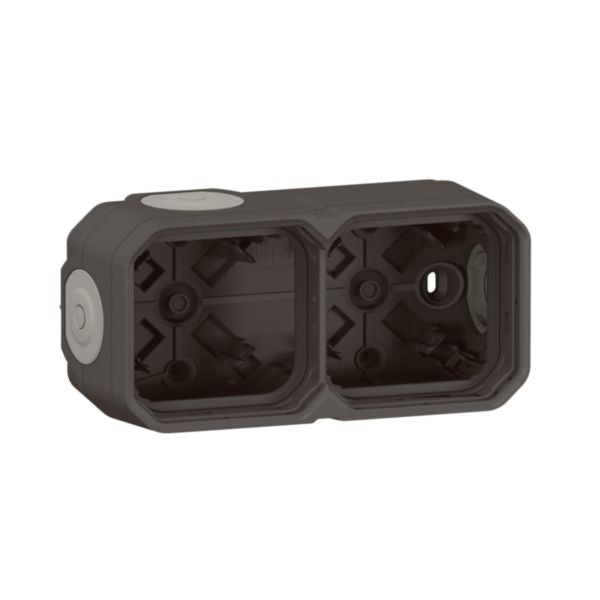

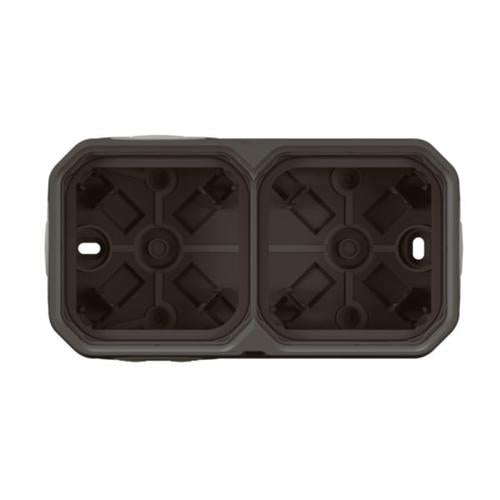

The Legrand Plexo 2-gang surface box is a premium weatherproof enclosure designed for surface mounting of all Plexo functions and mechanism products. Featuring an IP55 protection rating, this anthracite-colored box offers exceptional protection against dust and water spray from all directions, making it ideal for both indoor and outdoor applications. The innovative two-part design consists of a thin, rigid mounting plate that allows easy fixing and flexible wiring arrangement, combined with a frame that clips securely onto the mounting plate. The flexible backing adapts perfectly to wall irregularities, ensuring a professional installation every time.
This versatile 2-gang box can be installed both horizontally and vertically thanks to its 90° symmetrical mechanisms, providing maximum flexibility for various installation scenarios. Constructed from high-quality thermoplastic materials with reinforced UV protection, the box maintains its structural integrity and aesthetic appearance even when exposed to harsh environmental conditions. The four membrane glands (3x1 entry + 1x2 entries) provide multiple options for cable and conduit entry, accommodating various installation requirements. The product is halogen-free, meeting strict environmental and safety standards for modern electrical installations.
With dimensions of 82mm width x 155mm height x 57mm depth, this compact yet spacious box is suitable for standard Plexo mechanism products. The operating temperature range of -10°C to 40°C ensures reliable performance in diverse climates, while the storage temperature range of -25°C to 60°C provides flexibility for logistics and warehousing. The maximum input cable diameter of 17mm and tube diameter compatibility of 16-25mm accommodate most standard electrical installations. This product represents the perfect balance between durability, functionality, and aesthetic design for professional electrical installations.
Key Features
- IP55 protection rating - protected against dust and water spray from all directions
- Dual-orientation installation - can be mounted horizontally or vertically with 90° symmetrical mechanisms
- Two-part modular design with rigid mounting plate and flexible backing for wall adaptation
- Four membrane glands (3x1 entry + 1x2 entries) for flexible cable and conduit routing options
- UV-protected thermoplastic construction with halogen-free materials for environmental compliance
- Compact dimensions (82x155x57mm) suitable for standard Plexo mechanism products
- Wide operating temperature range (-10°C to 40°C) for diverse climate applications
- Professional anthracite finish with matt surface protection
- Compatible with wall-mounted conduits from 16-25mm diameter
- Maximum input cable diameter of 17mm for standard electrical installations
Technical Specifications
| Specification |
Value |
| Product Type | Surface Mounted Box |
| Number of Gangs | 2-gang |
| Material | Thermoplastic with UV protection |
| Color | Anthracite (RAL 7016) |
| IP Rating | IP55 |
| Width | 82 mm |
| Height | 155 mm |
| Depth | 57 mm |
| Mounting Orientation | Horizontal and Vertical (90° symmetrical) |
| Membrane Glands | 4 entries (3x1 entry + 1x2 entries) |
| Maximum Input Cable Diameter | 17 mm |
| Conduit Diameter Compatibility | 16-25 mm |
| Operating Temperature Range | -10°C to +40°C |
| Storage Temperature Range | -25°C to +60°C |
| Surface Finish | Matt |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Shock Resistant | No |
| IK Rating | Not applicable |
| Reference Number | 069602L |
| EAN Code | 3414971879874 |
