Shop Legrand Phase Inverter Plug P17 IP44 380-415V 16A 3P+N+E | 57441 In Iraq Best Prices
Professional industrial phase inverter plug with IP44 protection, 380-415V, 16A capacity, and 3P+N+E configuration for reliable motor control applications

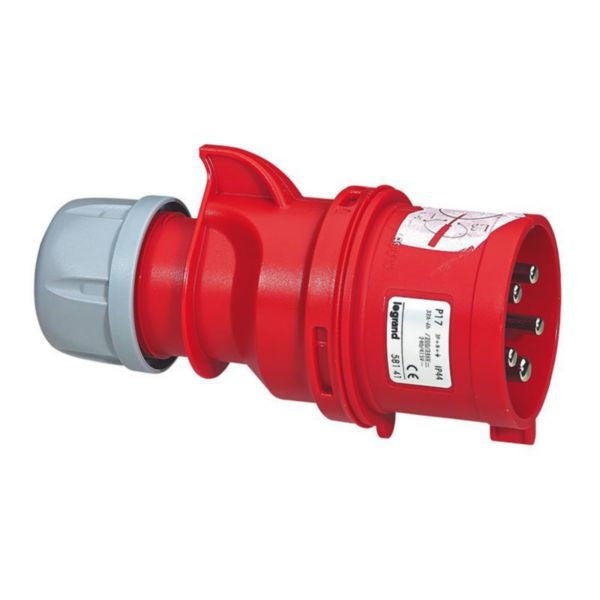

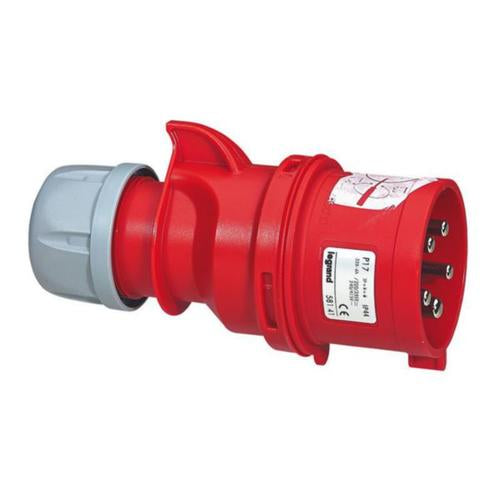

The LEGRAND Phase Inverter Plug P17 is a professional-grade industrial electrical connector designed for three-phase motor applications where rotation direction reversal is required. This robust plug features IP44 protection rating, making it suitable for demanding industrial environments with exposure to dust and water spray. With a rated voltage of 380-415V and 16A capacity, it provides reliable power distribution for motor control applications. The plug utilizes a screwed terminal connection system with gland nut cable entry, ensuring secure and durable electrical connections. Its straight insert design at 6 o'clock position and red identification color (RAL 3000) facilitate easy installation and quick identification in complex industrial setups.
The P17 Tempra Pro series plug is constructed with high-quality plastic housing and features five poles for complete 3-phase power transmission plus neutral and earth connections. The phase inverter functionality allows operators to change the rotation direction of three-phase electric motors without rewiring, providing significant operational flexibility. The screwed terminal connection ensures excellent contact reliability and longevity in high-vibration environments. This connector is fully compliant with IEC standards and EN 60309-2 specifications, guaranteeing compatibility with standard industrial electrical infrastructure.
Designed for professional use in manufacturing facilities, power distribution systems, and industrial machinery installations, this plug delivers consistent performance and safety. The IP44 rating provides protection against solid objects larger than 1mm and water spray from any direction, making it ideal for workshop and outdoor industrial applications. Not suitable for electric vehicle charging applications, this connector is specifically engineered for motor control and industrial power distribution purposes.
Key Features
- Phase inverter functionality for reversing 3-phase motor rotation direction without rewiring
- IP44 protection rating providing dust and water spray resistance for industrial environments
- Screwed terminal connection system ensuring secure and reliable electrical contacts
- Five-pole design supporting complete 3-phase power with neutral and earth connections
- Red identification color (RAL 3000) with 6 o'clock straight insert position for easy identification and installation
- IEC and EN 60309-2 compliance guaranteeing compatibility with standard industrial infrastructure
- High-quality plastic construction designed for durability in demanding industrial applications
- Gland nut cable entry system providing secure cable management and environmental sealing
Technical Specifications
| Specification |
Value |
| Rated Voltage | 380-415V AC (50/60 Hz) |
| Rated Current | 16 A |
| Number of Poles | 5 poles (3P+N+E) |
| Degree of Protection | IP44 |
| Phase Inverter | Yes |
| Insert Direction | Straight at 6 o'clock position |
| Connection System | Screwed terminal |
| Cable Entry | Gland nut |
| Identification Colour | Red (RAL 3000) |
| Material | Plastic housing |
| Standard Compliance | EN 60309-2, IEC standards |
| Product Series | P17 Tempra Pro |
| Reference Number | 057441 |
| EAN Code | 3245060574413 |
| Suitable for EV Charging | No |
