Shop Legrand P17 Tempra Panel Mounting Socket IP54 IK09 250V 2P+E | 57675 In Iraq Best Prices
Professional panel mounting socket with IP54 protection, 16A 250V capacity, 2P+E configuration, safety shutters, and IK09 impact resistance for industrial applications

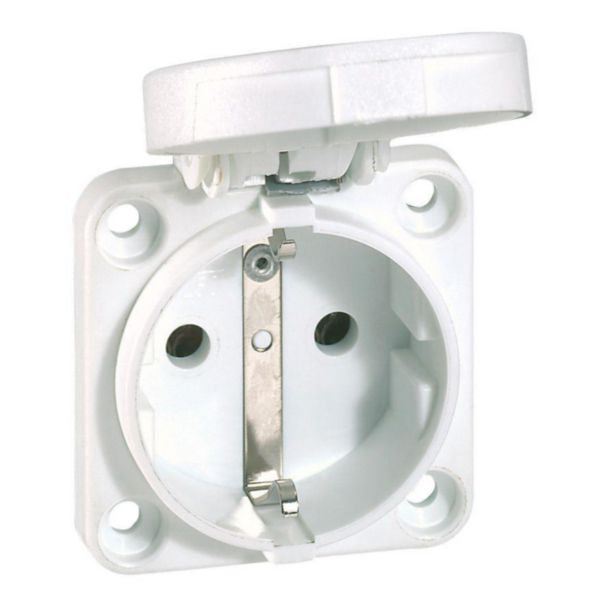

The Legrand P17 Tempra panel mounting socket is a professional-grade electrical component designed for secure and reliable power distribution in industrial and commercial applications. This socket features a robust plastic construction with self-extinguishing properties at 850°C, ensuring maximum safety and durability. With an IP54 protection rating when the cover is closed and IP44 when connected, it provides excellent protection against dust and moisture ingress, making it suitable for challenging environments.
This socket is engineered to accommodate 16A at 250V~ with a 2P+E (2 poles plus earth) configuration, following the domestic pin configuration standard. The white identification color helps with easy identification and organization in electrical installations. The socket features safety shutters to prevent accidental contact with live parts, significantly enhancing workplace safety. The straight insert direction and screwed terminal connection system provide secure and reliable electrical connections that meet international standards.
The P17 Tempra socket is specifically designed for panel mounting on plain faceplates and includes small flange mounting for easy installation. It complies with IEC 62262 and EN 62262 standards for impact resistance (IK09), ensuring it can withstand mechanical stress in demanding installations. With its compact design featuring 62mm vertical and 50mm horizontal flange sizes, this socket integrates seamlessly into modern electrical distribution systems. The product is not suitable for charging electric vehicles, making it ideal for standard commercial and industrial power distribution applications.
Key Features
- IP54 protection rating when cover closed, IP44 when connected for superior dust and moisture protection
- IK09 impact resistance per IEC 62262 and EN 62262 standards for mechanical durability
- Safety shutters prevent accidental contact with live electrical parts
- Self-extinguishing plastic construction at 850°C ensures fire safety
- Screwed terminal connection system provides secure and reliable electrical connections
- 16A capacity at 250V~ with 2P+E domestic pin configuration
- Compact design with 62mm vertical and 50mm horizontal flange mounting
- White identification color for easy recognition and organization
Technical Specifications
| Specification |
Value |
| Product Model | P17 Tempra |
| Manufacturer | Legrand |
| Reference Number | 057675 |
| EAN Code | 3245060576752 |
| Amperage Rating | 16 A |
| Voltage Rating | 250 V~ |
| Number of Poles | 2 + Earth (2P+E) |
| Clock Hour Position | 6 h |
| Identification Colour | White |
| Degree of Protection (IP) - Cover Closed | IP54 |
| Degree of Protection (IP) - Connected | IP44 |
| Impact Resistance (IK) | IK09 per IEC 62262 and EN 62262 |
| Connection System | Screwed Terminal |
| Insert Direction | Straight |
| Material | Plastic - Self-extinguishing at 850°C |
| Flange Size Vertical | 62 mm |
| Drill Hole Distance Vertical | 38 mm |
| Flange Size Horizontal | 50 mm |
| Drill Hole Distance Horizontal | 38 mm |
| Mounting Type | Panel Mounting with Small Flange |
| Compatible Faceplates | Plain faceplates Cat.Nos 0 577 15/16 |
| Safety Features | Shutters for live part protection |
| Pin Configuration | Domestic pin configuration |
| Suitable for EV Charging | No |
Order Legrand P17 Tempra Panel Mounting Socket IP54 IK09 250V 2P+E | 57675 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
