Description

Shop Legrand P17 Tempra Panel Mounting Socket 16A 250V 2P+E Blue | 57672 In Iraq Best Prices

Professional industrial panel mounting socket with 16A capacity, IP54 protection, IK09 impact resistance, and secure 2P+E configuration for reliable power distribution.

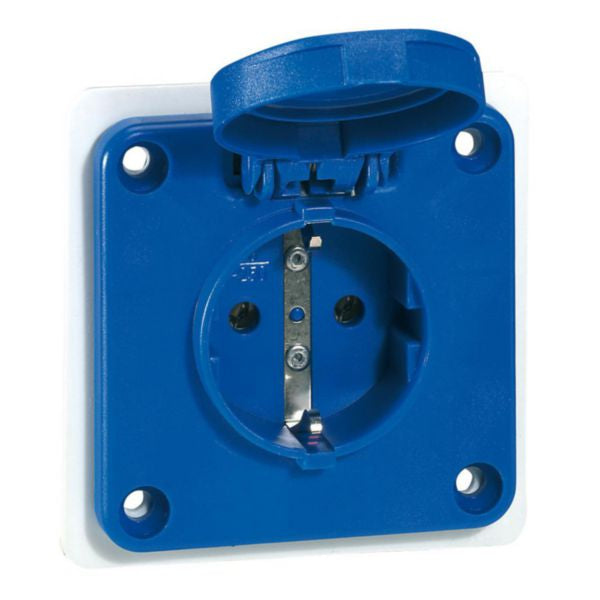

The Legrand P17 Tempra panel mounting socket is a professional-grade industrial electrical connector designed for secure and reliable power distribution in commercial and industrial environments. This socket features a domestic pin configuration with 16 A capacity at 250 V~ and complies with IEC 60309-2 standards. The socket is constructed from self-extinguishing plastic material rated at 850°C, ensuring durability and safety in demanding applications. With an IP 54 protection rating when cover is closed and IP 44 when connected, this socket provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor installations. The P17 Tempra socket is equipped with a 2P+E (two poles plus earth) configuration and features a straight insert direction for easy installation and use. The blue identification color helps distinguish this socket from other configurations in complex electrical systems. The socket can be fixed on pre-cut or plain faceplates for combined units and flush-mounting boxes, offering flexible installation options. It features a screwed terminal connection system for secure wire attachment and includes an IK 09 impact resistance rating according to IEC 62262 and EN 62262 standards, ensuring it can withstand mechanical stress in industrial environments. This panel mounting socket is not suitable for charging electric vehicles and is specifically designed for standard industrial power applications. The 75mm flange size with 60mm drill hole distances (both vertical and horizontal) allows for straightforward installation in standard electrical enclosures and control panels. The Legrand P17 Tempra represents a reliable choice for professionals requiring a robust, standards-compliant industrial socket solution.

Key Features

  • 16A capacity at 250V~ with domestic pin configuration
  • IP54 protection rating when cover closed, IP44 when connected
  • IK09 impact resistance per IEC 62262 and EN 62262 standards
  • Self-extinguishing plastic construction rated at 850°C
  • 2P+E configuration with screwed terminal connection system
  • Blue identification color for easy recognition
  • Flexible installation on pre-cut or plain faceplates
  • 75mm flange size with 60mm drill hole distances

Technical Specifications

Specification Value
Product NameP17 Tempra Panel Mounting Socket
ManufacturerLegrand
Reference Number057672
EAN Code3245060576721
IEC Amperage16 A
Voltage250 V~
Number of Poles3 (2P+E)
Identification ColourBlue
Degree of Protection (IP)IP54 (cover closed), IP44 (connected)
Impact Resistance (IK)IK09 (IEC 62262 and EN 62262)
Connection SystemScrewed Terminal
Insert DirectionStraight
MaterialPlastic (Self-extinguishing at 850°C)
Flange Size (Vertical)75 mm
Drill Hole Distance (Vertical)60 mm
Flange Size (Horizontal)75 mm
Drill Hole Distance (Horizontal)60 mm
Pin ConfigurationDomestic Pin Configuration
Military ModelNo
ApplicationIndustrial Power Distribution
Suitable for EV ChargingNo

Order Legrand P17 Tempra Panel Mounting Socket 16A 250V 2P+E Blue | 57672 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
