Shop Legrand Legrand Niloé TV Male Terminal Socket White 764555 | 764555 In Iraq Best Prices

Professional white TV male terminal socket with -10 dB attenuation, flush-mount design, halogen-free construction, and IP21 protection for reliable television signal distribution

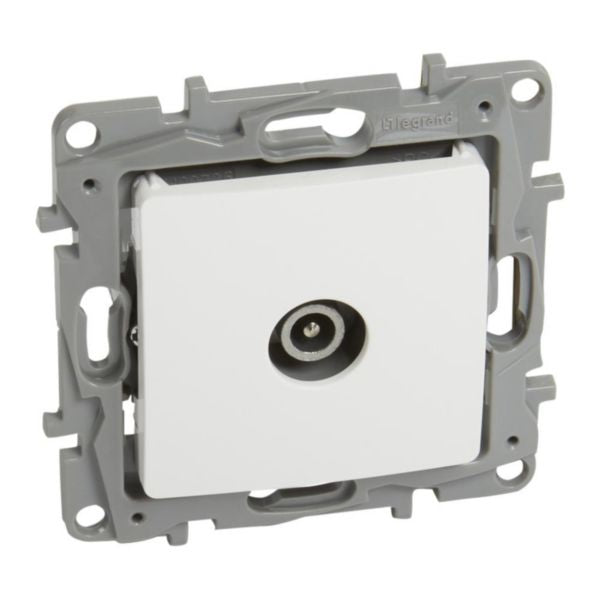

The Legrand Niloé TV Male Terminal Socket is a professional-grade television outlet designed for flush-mounted installation in residential and commercial applications. This white terminal socket features a male TV connector (9.5mm) with -10 dB attenuation, making it ideal for television signal distribution systems. The socket is manufactured from halogen-free thermoplastic material and complies with IP21 protection rating and IK04 impact strength standards. It comes equipped with a cover plate and support frame, with installation secured using supplied screws or claws. This terminal socket is specifically engineered for television signal reception with frequency range of 5-68/120-862 MHz. The product includes visual connection checking capabilities and is compatible with 17 VATC coaxial cable. The socket features a single input with resistance cap and is designed for easy maintenance installation. With its compact dimensions (75.8mm width and height, 28.3mm depth) and minimum built-in installation box depth requirement of 40mm, this outlet integrates seamlessly into standard electrical installations. The Niloé TV terminal socket operates reliably within temperature ranges of 5-45°C for operation and -25-70°C for storage. As part of the Legrand Niloé range following German and Italian electrical standards, this product represents a quality solution for television signal distribution in modern buildings and residences.

Key Features

Male TV connector (9.5mm) with -10 dB attenuation for optimal signal reception
Halogen-free thermoplastic construction meeting environmental standards
IP21 protection rating and IK04 impact strength for durability
Flush-mounted installation with included cover plate and support frame
Wide frequency range support (5-68/120-862 MHz) for television signals
Visual connection checking capability for easy installation verification
Compatible with 17 VATC recommended coaxial cable
Compact dimensions (75.8mm x 75.8mm x 28.3mm) for space-efficient installation
Operates in temperature range 5-45°C with storage capability to -25-70°C
Complies with German and Italian electrical standards

Technical Specifications

Specification	Value
Product Type	TV Male Terminal Socket
Brand	Legrand
Range	Niloé (German & Italian Standards)
Reference Number	764555
EAN Code	3414970683281
Connector Type	TV Male (9.5mm)
Attenuation	-10 dB at 860 MHz
Frequency Range	5-68/120-862 MHz
Installation Method	Flush-mounted
Number of Outlets	1
Material	Halogen-free Thermoplastic
Color	White
RAL Number	9003
Surface Finishing	Glossy
Degree of Protection	IP21
Impact Strength	IK04
Device Width	75.8 mm
Device Height	75.8 mm
Device Depth	28.3 mm
Minimum Installation Box Depth	40 mm
Operating Temperature Range	5-45°C
Storage Temperature Range	-25-70°C
Recommended Cable	17 VATC Coaxial Cable
Antimicrobial Treatment	No
Cable Modem Compatible	No
Remote Power Supply	No

Order Legrand Legrand Niloé TV Male Terminal Socket White 764555 | 764555 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
