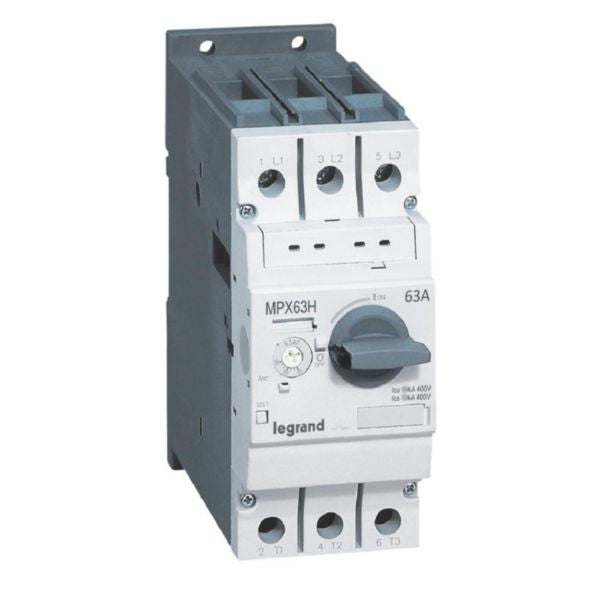

Shop Legrand MPX3 Motor Protection Circuit Breaker 45-63A 50kA | 417368 In Iraq Best Prices

MPX3 motor protection circuit breaker with 45-63A adjustable thermal setting and 50kA breaking capacity for 3-phase motors up to 30kW/415V. Features reduced footprint, integrated auxiliary switches, under-voltage release, and IP20 protection rating.

The Legrand MPX3 motor protection circuit breaker is a specialized device engineered for the protection, control, and isolation of 3-phase electric motors up to 30kW at 415V. This advanced motor circuit breaker combines thermomagnetic switching technology with integrated auxiliary switches and under-voltage release capabilities, providing comprehensive motor protection in tertiary and industrial installations. With an adjustable thermal setting range of 45A to 63A and a rated short-circuit breaking capacity of 50kA at 400V AC, this device ensures optimal safety and reliable operation of motor-driven systems. Designed with a reduced footprint to optimize cabinet space, the MPX3 motor circuit breaker features a robust construction with frame clamp electrical connections supporting conductor sizes from 0.75mm² to 35mm² for single conductors and 2 x 0.75mm² to 25mm² for dual conductors. The device operates at rated voltages between 220V and 690V, making it versatile for various industrial applications. Its IP20 protection rating and compact dimensions (140mm height, 55mm width, 144.6mm depth) ensure reliable performance in demanding environments. The MPX3 incorporates user-friendly operation through a rotary handle control element and is fully compatible with Legrand MPX3 auxiliary accessories for enhanced functionality. Built-in thermal overload protection prevents motor damage from sustained overload conditions, while the integrated under-voltage release protects against unexpected voltage fluctuations. This motor circuit breaker has been designed with environmental consciousness and complies with all substance-restriction requirements, making it an eco-friendly choice for modern industrial installations.

Key Features

Adjustable thermal overload setting from 45A to 63A for precise motor protection
Rated short-circuit breaking capacity of 50kA at 400V AC for maximum safety
Integrated auxiliary switches and under-voltage release for enhanced control
Reduced footprint design optimizes cabinet space and installation efficiency
Thermomagnetic switching technology with rotary handle operation for easy control
Compatible with Legrand MPX3 auxiliary accessories for expandable functionality
Frame clamp terminals support conductors from 0.75mm² to 35mm²
IP20 protection rating ensures reliable performance in industrial environments
Operates at rated voltages between 220V and 690V for versatile applications
Environmentally conscious design compliant with substance-restriction requirements

Technical Specifications

Specification	Value
Product Type	Motor Protection Circuit Breaker
Model	MPX3 63H
Reference Number	417368
EAN Code	3414970396150
Rated Permanent Current (Iu)	63 A
Overload Release Current Setting (Min-Max)	45-63 A
Undelayed Short-Circuit Release Setting	819-819 A
Rated Short-Circuit Breaking Capacity (Icu) at 400V AC	50 kA
Rated Short-Circuit Making Capacity (Ics) at 415V	50 kA
Rated Operating Voltage (Min-Max)	220-690 V
Rated Operation Power at AC-3, 230V	15 kW
Rated Operation Power at AC-3, 400V	30 kW
Motor Protection Rating	3-phase motors up to 30kW/415V
Switching Technique	Thermomagnetic
Thermal Overload Protection	Yes
Phase Failure Sensitivity	No
Integrated Auxiliary Switch	Yes
Under-Voltage Release	Yes, Integrated
Number of Poles	3
Main Circuit Connection Type	Frame Clamp
Conductor Capacity (Single)	0.75mm² to 35mm²
Conductor Capacity (Dual)	2 x 0.75mm² to 25mm²
Control Element Type	Turn Button (Rotary Handle)
Device Construction	Built-in Device Fixed Built-in Technique
Degree of Protection (IP)	IP20
Height	140 mm
Width	55 mm
Depth	144.6 mm
Mounting Method	35mm Top Hat Mounting Rail (IEC 60715) or Mounting Plate
Accessory Compatibility	Compatible with MPX3 Auxiliaries
Environmental Compliance	RoHS Compliant, Substance-Restriction Requirements Met
Application	Tertiary and Industrial Installations
Warranty	As per Legrand Standard Warranty Policy

Order Legrand MPX3 Motor Protection Circuit Breaker 45-63A 50kA | 417368 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
