Shop Legrand MPX3 Motor Protection Circuit Breaker 45-63A 100kA | 417376 In Iraq Best Prices
Compact motor circuit breaker for 3-phase motors up to 30kW/415V with adjustable 45-63A thermal-magnetic protection, 100kA breaking capacity, integrated auxiliaries, and optimized space-saving design for industrial installations.

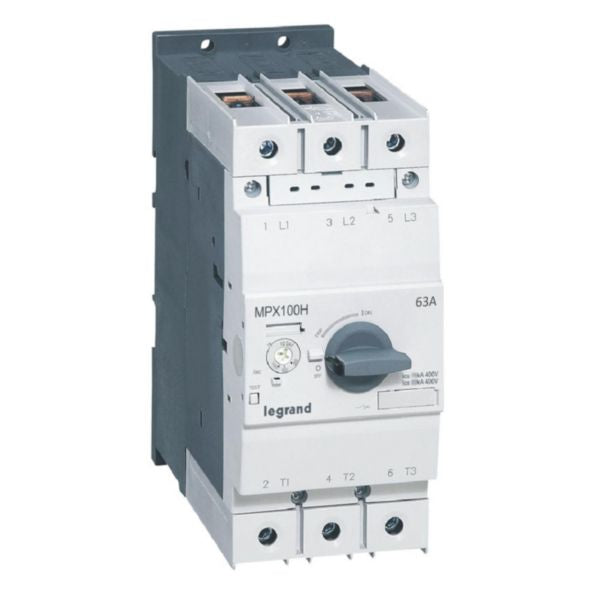

The Legrand MPX³ is a compact motor circuit breaker specifically designed for protection, control, and isolation of three-phase motors up to 30kW at 415V. This advanced device combines thermal-magnetic protection with an adjustable range of 45A to 63A, delivering exceptional performance with a 100kA breaking capacity. The MPX³ features integrated auxiliaries, reduced footprint design, and easy operation through a rotary handle mechanism, making it ideal for tertiary and industrial installations where space optimization is critical.
This motor protection device incorporates sophisticated safety features including integrated auxiliary switches and under-voltage release protection. With a rated permanent current of 63A and rated operation power of 30kW at AC-3 400V, the MPX³ provides reliable motor protection in demanding industrial environments. The device is equipped with frame clamp electrical connections supporting conductor sizes from 2mm² to 70mm² (or 2x2mm² to 50mm² for dual connections), ensuring compatibility with various installation requirements.
The MPX³ complies with substance-restriction requirements and has been designed following environmentally conscious manufacturing processes. Its compact dimensions (165mm height × 70mm width × 171mm depth) allow for optimal space utilization in distribution cabinets when mounted on 35mm top hat rails or mounting plates. The device's IP20 protection rating and thermomagnetic switch-off technique ensure reliable operation while maintaining safety standards for industrial and commercial applications.
Key Features
- Compact motor circuit breaker for protection, control and isolation of 3-phase motors up to 30kW/415V
- Adjustable thermal-magnetic protection with 45A to 63A setting range
- High breaking capacity of 100kA at 415V with 50kA switching capacity
- Integrated auxiliary switches and under-voltage release protection for enhanced safety
- Reduced footprint design optimized for cabinet space with 35mm DIN rail mounting compatibility
- Easy operation via rotary handle with clear on/off indication
- Frame clamp terminals supporting conductor sizes 2mm² to 70mm²
- IP20 protection rating suitable for industrial and tertiary installations
- Environmentally conscious design complying with substance-restriction requirements
- Integrated motor control features with AC-3 rated operation power of 30kW at 400V
Technical Specifications
| Specification |
Value |
| Product Type | Motor Protection Circuit Breaker |
| Brand | Legrand |
| Model | MPX³ 100H |
| Reference Number | 417376 |
| EAN Code | 3414970396297 |
| Number of Poles | 3 (Three-phase) |
| Rated Permanent Current | 63 A |
| Overload Release Current Setting | 45-63 A (adjustable) |
| Undelayed Short-Circuit Release | 819 A |
| Rated Short-Circuit Breaking Capacity (Icu) | 100 kA at 400V AC |
| Rated Short-Circuit Switching Capacity (Ics) | 50 kA at 415V |
| Rated Operating Voltage Range | 220-690 V |
| Rated Operation Power AC-3 at 230V | 15 kW |
| Rated Operation Power AC-3 at 400V | 30 kW |
| Switch-Off Technique | Thermomagnetic |
| Thermal Overload Protection | Yes |
| Phase Failure Sensitive | No |
| Control Element Type | Rotary Button/Handle |
| Integrated Auxiliary Switch | Yes |
| Integrated Under-Voltage Release | Yes |
| Main Circuit Connection Type | Frame Clamp Terminals |
| Conductor Size Capacity | 2mm² to 70mm² (or 2x2mm² to 50mm² dual) |
| Device Construction | Built-in Device Fixed Built-in Technique |
| Degree of Protection (IP Rating) | IP20 |
| Height | 165 mm |
| Width | 70 mm |
| Depth | 171 mm |
| Mounting Type | 35mm DIN Rail / Mounting Plate |
| Motor Protection | 3-phase motors up to 30kW/415V |
| Warranty | As per Legrand standard warranty policy |
| Environmental Compliance | RoHS Compliant, Environmentally Conscious Design |
| Accessories Compatibility | Compatible with MPX3 auxiliaries |
