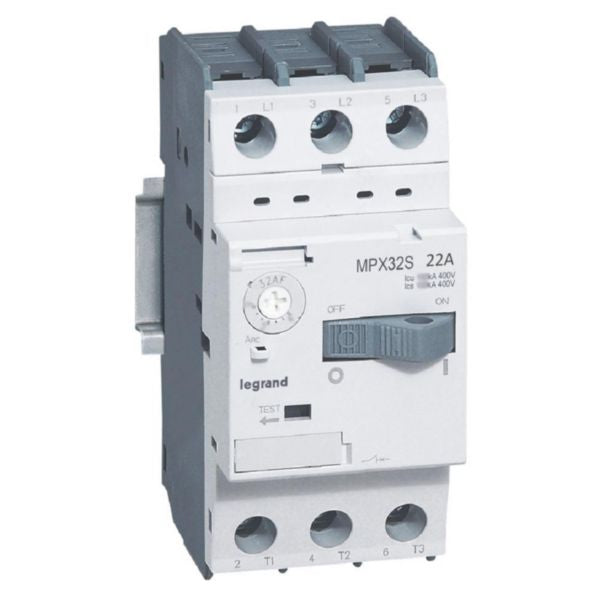

| Product Type | Motor Protection Circuit Breaker |
| Brand | Legrand |
| Model Series | MPX³ |
| Reference Number | 417313 |
| EAN Code | 3414970395290 |
| Application | 3-phase motors up to 7.5kW/415V |
| Overload Release Current Setting | 14-22A (adjustable) |
| Undelayed Short-Circuit Release | 286A |
| Rated Short-Circuit Breaking Capacity (Icu) | 15kA at 400V AC |
| Rated Service Breaking Capacity (Ics) | 11kA at 415V |
| Rated Permanent Current (Iu) | 22A |
| Rated Operating Voltage Range | 220-690V AC |
| Rated Operation Power AC-3 at 230V | 4kW |
| Rated Operation Power AC-3 at 400V | 7.5kW |
| Number of Poles | 3 |
| Switch-Off Technique | Thermomagnetic |
| Control Element | Rocker Lever |
| Thermal Overload Protection | Yes |
| Integrated Auxiliary Switch | Yes |
| Under Voltage Release | Yes |
| Phase Failure Sensitive | No |
| Main Circuit Connection Type | Frame Clamp (Screw Terminals) |
| Terminal Capacity - Single | 1mm² to 10mm² |
| Terminal Capacity - Double | 2 x 1mm² to 6mm² |
| Device Construction | Built-in fixed mounting technique |
| Degree of Protection (IP) | IP20 |
| Height | 94mm |
| Width | 45mm |
| Depth | 75mm |
| Mounting | 35mm Top Hat Rail (IEC 60715) |
| Compatible Accessories | Legrand MPX3 Auxiliary Modules |
| Environmental Compliance | RoHS Compliant, Substance Restriction Requirements Met |
| Installation Type | Tertiary and Industrial Applications |
