Shop Legrand MPX3 Motor Protection Circuit Breaker 1.6-2.5A 100KA | 417326 In Iraq Best Prices

Compact Legrand MPX³ motor protection circuit breaker with 1.6-2.5A thermal-magnetic protection, 100kA breaking capacity, and rotary handle for reliable 0.75kW motor control up to 400V

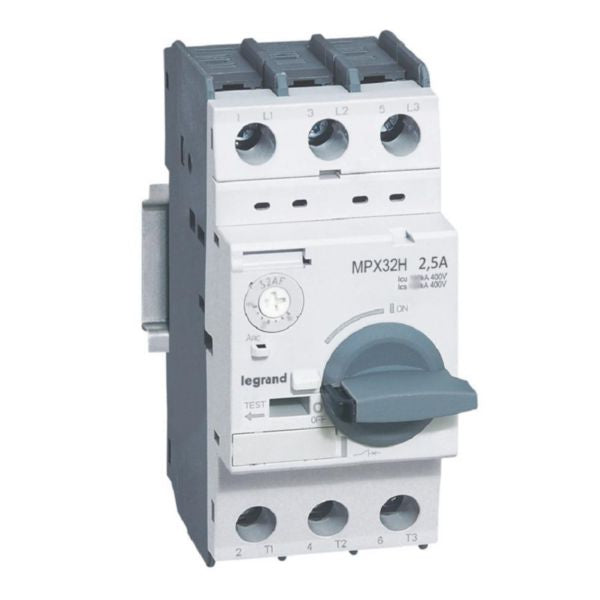

The Legrand MPX³ motor protection circuit breaker model 417326 is a compact, high-performance device specifically engineered for protecting three-phase motors up to 0.75kW at 400V. This thermomagnetic circuit breaker combines precise thermal-magnetic protection with industrial-grade reliability, featuring a 100kA breaking capacity that ensures superior performance in demanding industrial and tertiary installations. The device incorporates an easy-to-use rotary handle for convenient operation and isolation, along with integrated auxiliary switches and under-voltage release functionality for comprehensive motor protection. Designed with a reduced footprint, the MPX³ 32H model optimizes cabinet space while maintaining full operational capability. It features screw terminal connections accommodating wire sizes from 1mm² to 10mm² (or 2x1mm² to 6mm² for dual connections), making it versatile for various installation configurations. The device operates across a wide voltage range of 220-690V, providing flexibility for different motor configurations and power systems. With its IP20 protection rating and compact dimensions (94mm height × 45mm width × 99.6mm depth), this circuit breaker is ideal for mounting on standard 35mm DIN rails in electrical cabinets. The MPX³ motor protection circuit breaker delivers precise overload protection with a 1.6-2.5A thermal release current setting and an undelayed short-circuit release of 32.5A. Its rated permanent current of 2.5A and AC-3 rated operation power of 0.75kW at 400V ensure reliable motor control and protection. Compatible with all MPX³ auxiliary modules and accessories, this device represents Legrand's commitment to quality, safety, and environmental responsibility in industrial motor protection solutions.

Key Features

Precise 1.6-2.5A thermal-magnetic motor protection for 0.75kW motors at 400V
100kA breaking capacity (Icu and Ics) ensuring superior fault protection
Easy-to-operate rotary handle for convenient motor control and isolation
Compact reduced footprint design optimizing cabinet space efficiency
Integrated auxiliary switches and under-voltage release for comprehensive protection
Wide voltage range 220-690V for flexible multi-application deployment
Screw terminal connections accepting 1-10mm² single or 2×1-6mm² dual wire sizes
DIN rail mounting on standard 35mm top-hat rails per IEC 60715
IP20 protection rating suitable for industrial and tertiary installations
Compatible with full range of MPX³ auxiliary modules and accessories

Technical Specifications

Specification	Value
Product Model	MPX³ 32H
Reference Number	417326
EAN Code	3414970395474
Manufacturer	Legrand
Motor Protection Type	Thermomagnetic circuit breaker
Overload Release Current (Min-Max)	1.6-2.5A
Undelayed Short-Circuit Release	32.5A
Rated Permanent Current (Iu)	2.5A
Rated Short-Circuit Breaking Capacity (Icu) at 400V AC	100kA
Rated Short-Circuit Making Capacity (Ics) at 400V AC	100kA
Rated Operating Voltage Range	220-690V AC
AC-3 Rated Operation Power at 230V	0.37kW
AC-3 Rated Operation Power at 400V	0.75kW
Motor Protection Range	3-phase motors 0.75kW/415V
Number of Poles	3
Control Element Type	Rotary handle (turn button)
Device Construction	Built-in fixed mounting device
Thermal Overload Protection	Yes
Integrated Auxiliary Switch	Yes
Integrated Under-Voltage Release	Yes
Phase Failure Sensitive	No
Main Circuit Connection Type	Frame clamp (screw terminals)
Terminal Capacity Single Wire	1mm² to 10mm²
Terminal Capacity Dual Wire	2×1mm² to 6mm²
Degree of Protection (IP Rating)	IP20
Height	94mm
Width	45mm
Depth	99.6mm
DIN Rail Mounting	35mm top-hat rail (IEC 60715)
Auxiliary Module Compatibility	Compatible with MPX³ auxiliaries
Environmental Compliance	RoHS compliant, environmentally conscious design
Application Category	Tertiary and industrial installations
Warranty	As per Legrand standard warranty policy

Order Legrand MPX3 Motor Protection Circuit Breaker 1.6-2.5A 100KA | 417326 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
