Description

Shop Legrand MPX3 Auxiliary Contact 1NO1NC Side Mounting Motor Breaker | 417400 In Iraq Best Prices

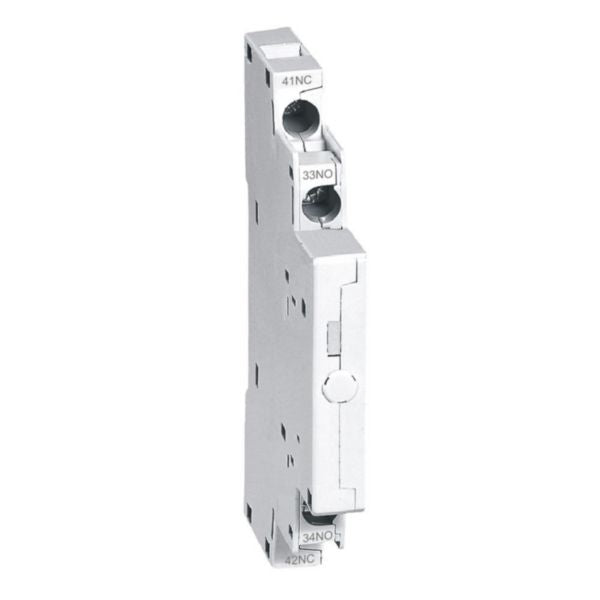

Legrand MPX³ 1NO1NC auxiliary contact for motor circuit breakers with side-mounting capability, AC-15 rated up to 6A/24V and 4A/240V, compatible with MPX3 series breakers

The Legrand MPX³ Auxiliary Contact 1NO1NC is a specialized electrical auxiliary component designed specifically for motor circuit breaker applications. This side-mounted signaling device provides reliable 1NO+1NC (1 normally open and 1 normally closed) contact configuration for MPX³ motor circuit breakers. The unit delivers AC-15 rated performance up to 6A at 24V and 4A at 240V, with DC-13 capability reaching 2A at 24V and 0.25A at 220V. This auxiliary contact is engineered for seamless integration with MPX3 32S/H/MA, MPX3 63H, and MPX3 100H motor circuit breakers. It features robust screw terminal connections that accommodate conductor sizes ranging from 2x0.5mm² to 2.5mm², ensuring secure and reliable electrical connections. The device operates with an Ith (thermal current) rating of 10A at 40°C or 6A at 60°C, providing consistent performance across varying environmental conditions. Designed for tertiary and industrial installations, this auxiliary contact meets all substance-restriction requirements and has been manufactured using environmentally conscious processes. The side-mounting configuration allows for space-efficient installation while maintaining full accessibility for maintenance and troubleshooting. Installation instructions must be reviewed before deployment to ensure optimal performance and safety compliance.

Key Features

1NO+1NC auxiliary contact configuration for dual signaling capability
AC-15 rated performance up to 6A at 24V and 4A at 240V
DC-13 rated performance up to 2A at 24V and 0.25A at 220V
Side-mounting design for space-efficient installation
Compatible with MPX3 32S/H/MA, MPX3 63H, and MPX3 100H motor circuit breakers
Screw terminals accommodating 2x0.5mm² to 2.5mm² conductors
Thermal current rating of 10A at 40°C and 6A at 60°C
Environmentally conscious manufacturing process
RoHS compliant with substance-restriction compliance
Ideal for tertiary and industrial electrical installations

Technical Specifications

Specification	Value
Product Type	Auxiliary Contact Unit for Motor Circuit Breaker
Contact Configuration	1NO + 1NC (1 Normally Open + 1 Normally Closed)
Thermal Current Rating (Ith)	10A at 40°C / 6A at 60°C
AC-15 Rated Supply Current	6A at 24V / 4A at 240V
DC-13 Rated Supply Current	2A at 24V / 0.25A at 220V
Terminal Type	Screw Connection
Conductor Capacity	2x 0.5mm² to 2.5mm²
Mounting Method	Side Mounting
Model Type	Clip-on
Compatible Breakers	MPX3 32S/H/MA, MPX3 63H, MPX3 100H
Rated Operation Current (AC-15 at 230V)	3A
Compliance	RoHS Compliant - Substance Restriction Requirements Met
Installation Category	Tertiary and Industrial Installations
Reference Number	417400
EAN Code	3414970396372

Order Legrand MPX3 Auxiliary Contact 1NO1NC Side Mounting Motor Breaker | 417400 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
