Shop Legrand MPX3 Auxiliary Contact 1NO1NC Motor Circuit Breaker | 417403 In Iraq Best Prices

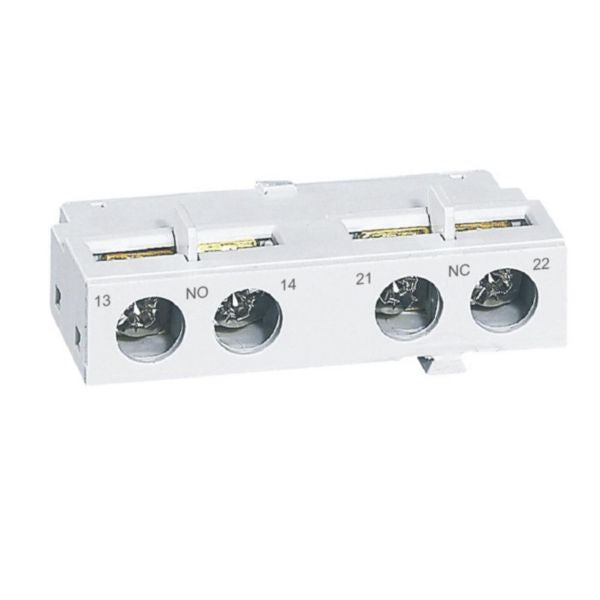

Legrand MPX3 front-mounted auxiliary contact providing 1NO+1NC status signaling for motor circuit breakers with AC-15 ratings up to 4A/240V and screw terminals 0.5-2.5mm²

The Legrand MPX3 Auxiliary Contact 1NO1NC (Reference 417403) is a specialized electrical auxiliary unit designed for motor circuit breakers, providing reliable status signaling capabilities. This front-mounted auxiliary contact delivers 1 normally open and 1 normally closed contact configuration with AC-15 ratings up to 4A at 240V, making it ideal for motor control and protection applications in tertiary and industrial installations. The unit features a rated supply current of AC-15: 4A/240V and DC-13: 1A/24V - 0.1A/220V, ensuring versatile compatibility with various electrical systems. The auxiliary contact is specifically engineered for seamless integration with MPX3 series motor circuit breakers including the 32S/H/MA, 63H, and 100H models. Its front clip-on mounting design allows for quick and efficient installation without requiring extensive modifications to existing systems. The screw terminals accommodate wire sizes from 0.5mm² to 2.5mm², providing flexible connection options for different wiring configurations. With a thermal current rating (Ith) of 5A at 40°C or 3A at 60°C, this auxiliary contact ensures reliable performance across varying environmental conditions. This product complies with all substance-restriction requirements and has been manufactured through an environmentally conscious process, meeting modern sustainability standards. The auxiliary contact is essential for applications requiring real-time motor status monitoring, circuit protection coordination, and advanced motor control schemes in industrial and tertiary sector installations.

Key Features

1 Normally Open + 1 Normally Closed contact configuration for comprehensive status signaling
Front clip-on mounting design for quick and easy installation on MPX3 motor circuit breakers
AC-15 rated contacts with 4A/240V capacity and DC-13 rated 1A/24V - 0.1A/220V operation
Screw terminals accommodate flexible wire sizes from 0.5mm² to 2.5mm² for versatile wiring options
Thermal current rating of 5A at 40°C or 3A at 60°C ensuring reliable performance across temperature ranges
Compatible with MPX3 32S/H/MA, 63H, and 100H motor circuit breaker series
RoHS compliant and manufactured through environmentally conscious sustainable processes
Ideal for tertiary and industrial installations requiring motor control and protection coordination

Technical Specifications

Specification	Value
Product Reference	417403
EAN Code	3414970396433
Contact Configuration	1NO + 1NC (1 Normally Open + 1 Normally Closed)
Rated Supply Current AC-15	4A at 240V
Rated Supply Current DC-13	1A at 24V - 0.1A at 220V
Thermal Current (Ith)	5A at 40°C / 3A at 60°C
Screw Terminal Capacity	2x 0.5mm² to 2.5mm²
Mounting Method	Front clip-on mounting
Type of Electric Connection	Screw connection
Model Type	Clip-on auxiliary contact
Compatible Motor Circuit Breakers	MPX3 32S/H/MA, MPX3 63H, MPX3 100H
Number of Normally Open Contacts	1
Number of Normally Closed Contacts	1
Number of Change-over Contacts	0
Rated Operation Current AC-15 at 230V	3A
Compliance Standards	RoHS Directive compliant, substance-restriction requirements met
Application Category	Motor control and protection for tertiary and industrial installations

Order Legrand MPX3 Auxiliary Contact 1NO1NC Motor Circuit Breaker | 417403 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
