Description

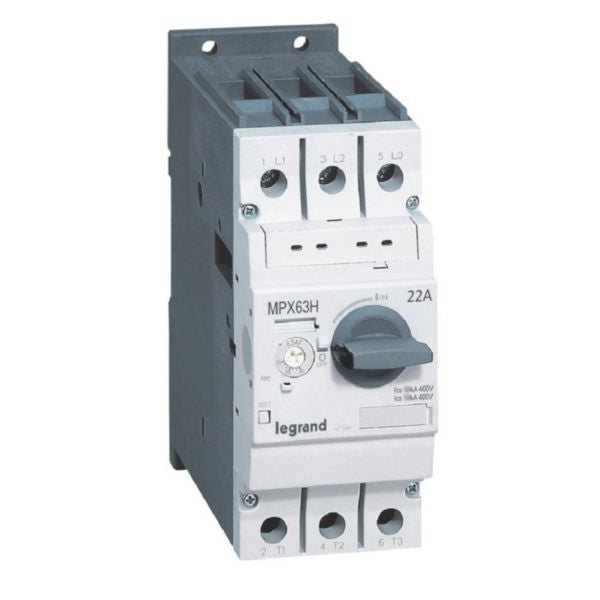

Shop Legrand MPX3 63H Motor Protection Circuit Breaker 14-22A 50KA | 417363 In Iraq Best Prices

Legrand MPX³ motor protection circuit breaker with adjustable 14-22A thermal setting, 50kA breaking capacity, and integrated auxiliaries for 3-phase motors up to 7.5kW/415V

The Legrand MPX³ motor protection circuit breaker model 417363 is a premium three-phase motor protection device engineered for industrial and tertiary installations. Specifically designed for protecting 3-phase electric motors up to 7.5kW at 415V, this device combines advanced protection functionality with space-saving design. The MPX³ features an adjustable thermal overload setting ranging from 14A to 22A, providing precise protection tailored to your specific motor requirements. With a rated short-circuit breaking capacity of 50kA at 400V AC, this circuit breaker delivers exceptional protection against fault conditions. This motor circuit breaker incorporates integrated auxiliary switch compatibility and under-voltage release functionality for comprehensive motor control and protection. The device utilizes a thermomagnetic switching technique with a rotary handle control element for intuitive operation. It features frame clamp electrical connections accommodating cable sizes from 0.75mm² to 35mm² (or 2 x 0.75mm² to 25mm²), making it versatile for various installation scenarios. The reduced footprint design allows for optimal space utilization within control cabinets, while its IP20 protection rating ensures reliable operation in standard industrial environments. The MPX³ motor protection circuit breaker meets all substance-restriction requirements and has been manufactured using environmentally conscious processes. Its built-in device fixed mounting technique enables secure installation on standard 35mm "top hat" mounting rails (IEC 60715) or mounting plates. With three poles and a rated permanent current of 22A, this device provides reliable long-term protection for critical motor applications in demanding industrial and commercial settings.

Key Features

Three-phase motor protection for motors up to 7.5kW at 415V with advanced thermomagnetic switching technology
Adjustable thermal overload protection ranging from 14A to 22A for precise motor current settings
High breaking capacity of 50kA at 400V AC and 415V providing superior fault protection
Integrated auxiliary switch and under-voltage release for comprehensive motor control and safety
Space-saving reduced footprint design optimized for cabinet installation with DIN rail mounting compatibility
Rotary handle control element for intuitive and reliable manual operation
IP20 protection rating suitable for standard industrial and tertiary installation environments
Frame clamp terminals accepting cable sizes 0.75mm² to 35mm² for flexible installation options

Technical Specifications

Specification	Value
Product Model	MPX³ 63H
Reference Number	417363
EAN Code	3414970396051
Number of Poles	3 poles
Rated Permanent Current	22 A
Overload Release Current Setting	14-22 A (adjustable)
Undelayed Short-Circuit Release Setting	286 A
Rated Operating Voltage	220-690 V
Rated Short-Circuit Breaking Capacity (Icu)	50 kA at 400V AC, 50 kA at 415V
Short-Circuit Making Capacity (Ics)	50 kA at 415V
Rated Operation Power AC-3 at 230V	4 kW
Rated Operation Power AC-3 at 400V	7.5 kW
Switching Technique	Thermomagnetic
Thermal Overload Protection	Yes
Phase Failure Sensitive	No
Integrated Auxiliary Switch	Yes
Integrated Under-Voltage Release	Yes
Control Element Type	Rotary handle
Main Circuit Connection Type	Frame clamp terminals
Cable Capacity (Single)	0.75mm² to 35mm²
Cable Capacity (Double)	2 x 0.75mm² to 25mm²
Device Construction	Built-in device fixed built-in technique
Mounting Method	35mm DIN rail (IEC 60715) or mounting plate
Height	140 mm
Width	55 mm
Depth	144.6 mm
Degree of Protection	IP20
Application	Three-phase motor protection and control
Motor Protection Range	Up to 7.5 kW at 415V
Environmental Compliance	RoHS compliant, environmentally conscious design

Order Legrand MPX3 63H Motor Protection Circuit Breaker 14-22A 50KA | 417363 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
