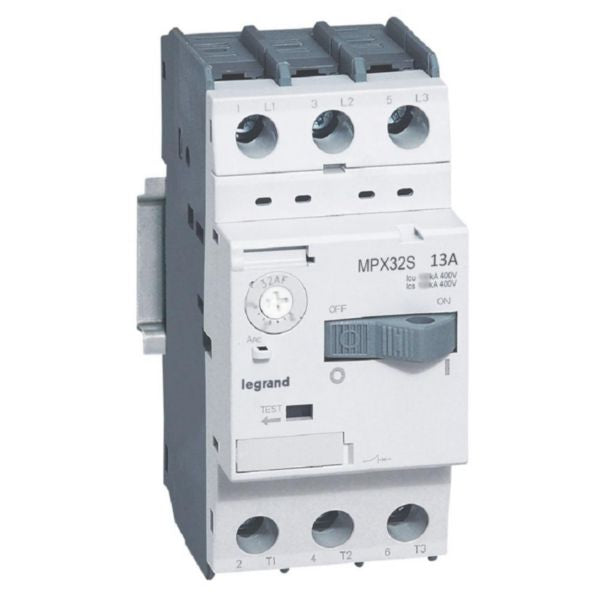

| Product Type | Motor Protection Circuit Breaker |
| Rated Permanent Current Iu | 13 A |
| Overload Release Setting Range | 9-13 A (adjustable) |
| Undelayed Short-Circuit Release | 169 A |
| Rated Short-Circuit Breaking Capacity Icu | 50 kA at 400V AC |
| Short-Circuit Withstand Capacity Ics | 38 kA at 415V |
| Rated Operating Voltage Range | 220-690 V |
| Rated Operation Power AC-3 at 230V | 3 kW |
| Rated Operation Power AC-3 at 400V | 5.5 kW |
| Motor Protection Application | 3-phase motors up to 5.5kW/415V |
| Number of Poles | 3-pole |
| Switch-off Technique | Thermomagnetic |
| Control Element Type | Rocker lever |
| Thermal Overload Protection | Yes |
| Integrated Auxiliary Switch | Yes |
| Integrated Under-Voltage Release | Yes |
| Main Circuit Connection Type | Frame clamp terminals |
| Terminal Capacity | 1mm² to 10mm² / 2 x 1mm² to 6mm² |
| Device Construction | Built-in device fixed mounting technique |
| Mounting Standard | 35mm DIN rail (IEC 60715) |
| Degree of Protection | IP20 |
| Height | 94 mm |
| Width | 45 mm |
| Depth | 75 mm |
| Phase Failure Sensitivity | No |
| Reference Number | 417311 |
| EAN Code | 3414970395252 |
| Compliance Standards | RoHS Directive, IEC 60715, Environmental standards |
| Auxiliary Module Compatibility | Compatible with MPX3 auxiliaries |
| Installation Type | Tertiary and industrial applications |
