Description

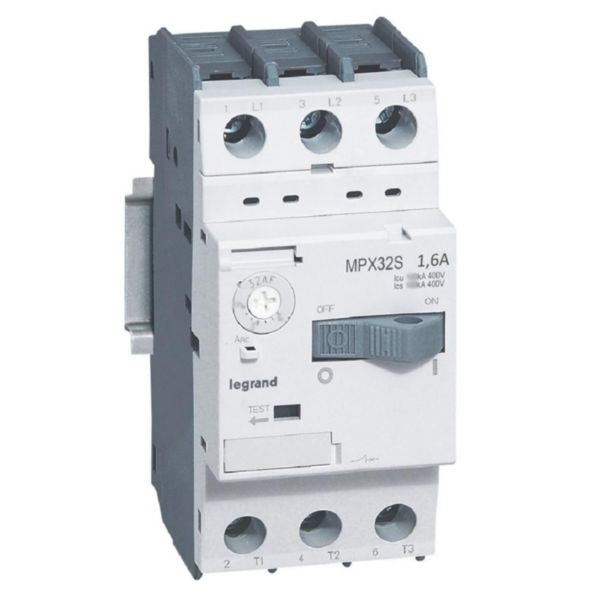

Shop Legrand MPX3 32S Motor Protection Circuit Breaker 1.0-1.6A 100KA | 417305 In Iraq Best Prices

Compact 3-phase motor protection circuit breaker with adjustable 1.0-1.6A thermal-magnetic protection, 100kA breaking capacity, integrated auxiliary switches, and optimized cabinet space design for industrial and tertiary applications.

The Legrand MPX³ is a compact motor circuit breaker designed specifically for protection, control, and isolation of 3-phase motors up to 0.55kW at 415V. This advanced device features adjustable thermal-magnetic protection with a range of 1A to 1.6A, delivering exceptional performance with a 100kA breaking capacity at 415V. The MPX³ combines reliability with space efficiency, featuring a reduced footprint that optimizes cabinet space while maintaining full operational capability. This motor protection circuit breaker incorporates integrated auxiliary switches and under-voltage release functionality, making it ideal for tertiary and industrial installations. The device is equipped with screw terminal capacity ranging from 1mm² to 10mm² for single conductors and 2x1mm² to 6mm² for dual conductors, ensuring versatile installation options. With its thermomagnetic switch-off technique and rocker lever control element, the MPX³ provides easy operation and reliable motor protection. The MPX³ is fully compliant with substance-restriction requirements and has been designed using environmentally conscious processes. It features IP20 degree of protection and is compatible with a comprehensive range of MPX3 auxiliaries, allowing for customized protection schemes. The device is rated for permanent current of 1.6A and delivers rated operation power of 0.18kW at 230V AC-3 and 0.37kW at 400V AC-3, making it suitable for a wide variety of motor applications in industrial and commercial environments.

Key Features

Compact design with reduced footprint for optimized cabinet space utilization
Adjustable thermal-magnetic protection with 1.0-1.6A setting range for precise motor protection
100kA breaking capacity at 415V for reliable short-circuit protection
Integrated auxiliary switches and under-voltage release for enhanced control functionality
Easy operation with rocker lever control element and IP20 protection degree
Compatible with comprehensive range of MPX3 auxiliaries for customized protection schemes
Screw terminals capacity 1mm² to 10mm² for single conductors and 2x1mm² to 6mm² for dual conductors
Environmentally conscious design compliant with substance-restriction requirements
3-pole configuration suitable for 3-phase motor applications up to 0.55kW/415V
Built-in device fixed mounting on 35mm top hat rail (IEC 60715)

Technical Specifications

Specification	Value
Product Name	Motor Protection Circuit Breaker MPX3 32S
Brand	Legrand
Reference Number	417305
EAN Code	3414970395139
Number of Poles	3
Motor Rating	0.55kW at 415V (3-phase)
Overload Release Current Setting (Min-Max)	1.0-1.6A
Rated Permanent Current (Iu)	1.6A
Adjustment Range Undelayed Short-Circuit Release	20.8A
Switch-off Technique	Thermomagnetic
Rated Short-Circuit Breaking Capacity (Icu) at 400V AC	100kA
Rated Short-Circuit Breaking Capacity (Ics) at 415V	100kA
Rated Operating Voltage (Min-Max)	220-690V
Thermal Overload Protection	Yes
Phase Failure Sensitive	No
Integrated Auxiliary Switch	Yes
Integrated Under Voltage Release	Yes
Type of Control Element	Rocker Lever
Rated Operation Power at AC-3, 230V	0.18kW
Rated Operation Power at AC-3, 400V	0.37kW
Type of Electrical Connection	Frame Clamp (Screw Terminals)
Screw Terminal Capacity (Single Conductor)	1mm² to 10mm²
Screw Terminal Capacity (Dual Conductor)	2x1mm² to 6mm²
Device Construction	Built-in Device Fixed
Mounting Type	35mm Top Hat Rail (IEC 60715)
Degree of Protection (IP)	IP20
Height	94mm
Width	45mm
Depth	75mm
Compatibility	Compatible with MPX3 Auxiliaries
Environmental Compliance	RoHS Compliant, Environmentally Conscious Design
Application	Protection of 3-phase Motors in Tertiary and Industrial Installations

Order Legrand MPX3 32S Motor Protection Circuit Breaker 1.0-1.6A 100KA | 417305 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
