Professional IP65-rated yellow and red enclosure for MPX3 32H/MA motor circuit breakers, featuring 4 knock-out cable openings, surface-mounted design, and emergency seal capability for industrial applications.

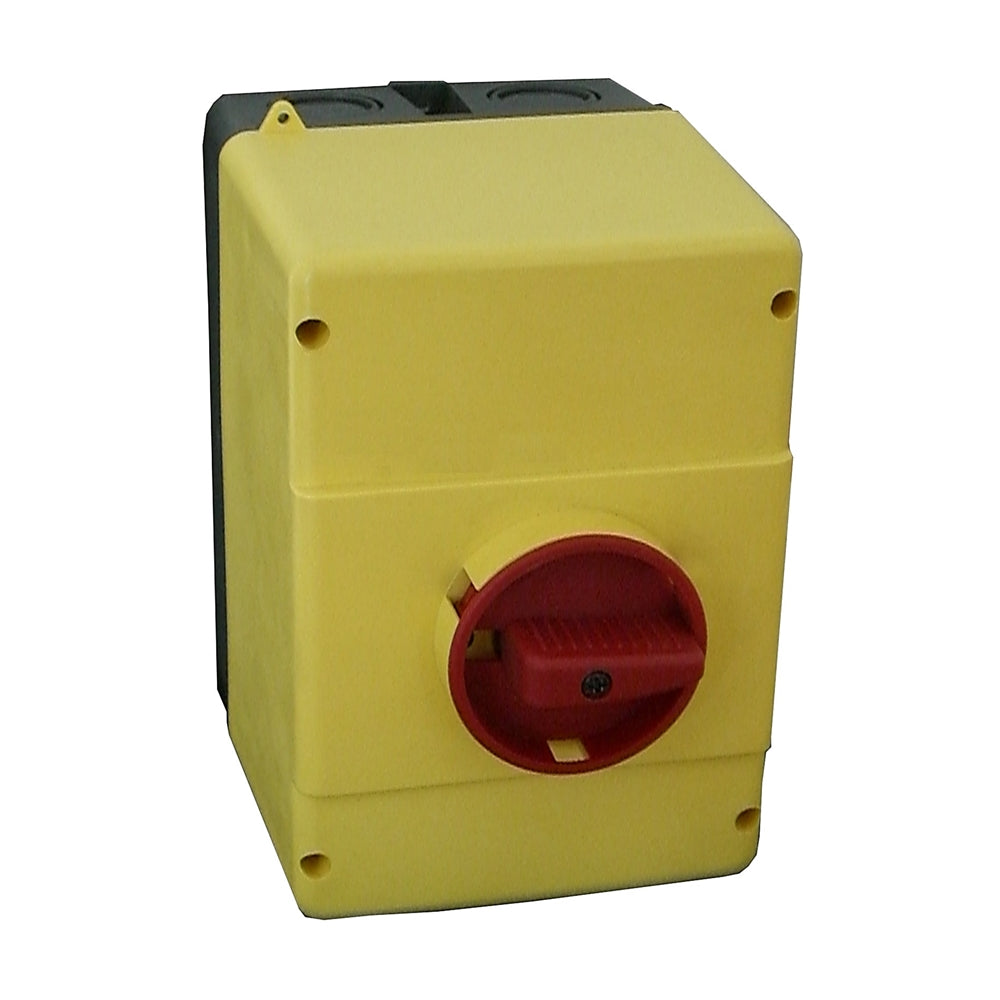

The Legrand MPX3 32H/MA Enclosure in yellow and red is a professional-grade protective housing specifically designed for motor control and protection applications in tertiary and industrial installations. This IP65-rated enclosure features a durable plastic construction with yellow cover and red handle, providing excellent protection against dust and water ingress. The enclosure is equipped with 4 knock-out openings for convenient and flexible cable connections, making installation straightforward and efficient.
This specialized enclosure is engineered exclusively for use with MPX3 32H/MA motor circuit breakers, ensuring optimal compatibility and performance in demanding industrial environments. The surface-mounted design allows for easy installation on walls and panels, while the IP65 protection index guarantees reliable operation in harsh conditions. The enclosure includes the possibility of sealing in OFF position, providing an additional safety layer for emergency stop applications and maintenance procedures.
With its impact-resistant IK07 rating and NEMA 2 equivalent protection level, this enclosure withstands physical impacts and environmental stresses common in industrial settings. The generous internal dimensions of 150mm width, 220mm height, and 100mm depth accommodate standard motor control components while maintaining a compact footprint. This product is recommended for professional installations and should be used in accordance with the manufacturer's instructions for optimal safety and performance.
Key Features
- IP65 protection index for dust and water ingress resistance
- Yellow cover with red handle for easy identification and emergency access
- 4 knock-out openings for flexible cable connection options
- Possibility of sealing in OFF position for safety and maintenance
- IK07 impact resistance rating for durability in harsh environments
- Surface-mounted design for convenient wall and panel installation
- NEMA 2 equivalent protection level for industrial reliability
- Specifically designed for MPX3 32H/MA motor circuit breakers
- Durable plastic construction for corrosion resistance
- Compact dimensions maintaining professional appearance
Technical Specifications
| Specification |
Value |
| Product Reference | 417480 |
| EAN Code | 3414970397461 |
| Housing Material | Plastic |
| Color | Yellow cover with red handle |
| Width | 150 mm |
| Height | 220 mm |
| Depth | 100 mm |
| Protection Index (IP) | IP65 |
| Protection Index (NEMA) | NEMA 2 |
| Impact Strength Rating (IK) | IK07 |
| Model Type | Surface mounting |
| Knock-out Openings | 4 openings |
| Transparent Cover | No |
| Suitable for Emergency Stop | No |
| Compatible Device | MPX3 32H/MA motor circuit breaker |
| Installation Type | Wall and panel mounted |
| Sealing Capability | Sealable in OFF position |
| Application | Industrial and tertiary installations |
Order Legrand MPX3 32H/MA Yellow Red Enclosure IP65 | 417480 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
