Shop Legrand MPX3 32H/MA Motor Circuit Breaker Enclosure IP65 | 417481 In Iraq Best Prices
Professional IP65-rated enclosure for Legrand MPX3 32H/MA motor circuit breaker with four knock-out cable openings, plastic construction, and industrial-grade protection for tertiary installations.

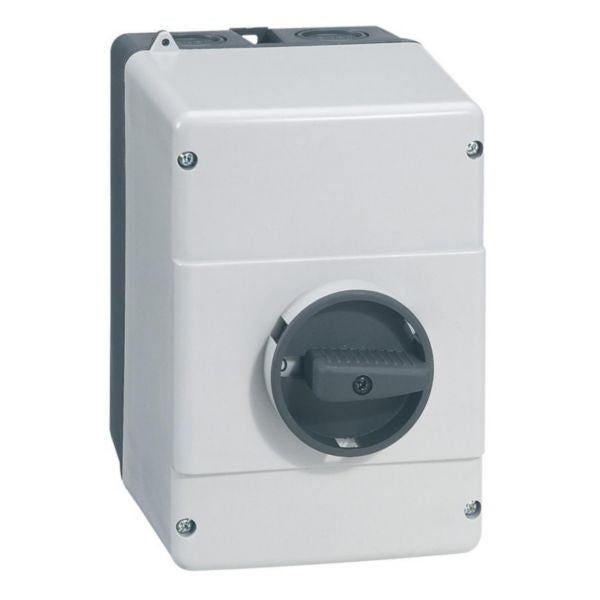

The Legrand Enclosure for MPX3 32H/MA is a professional-grade protective housing designed specifically for motor circuit breaker applications in tertiary and industrial installations. This IP65-rated enclosure provides robust protection against dust and water ingress, making it ideal for demanding industrial environments. The enclosure features a durable plastic construction with precise dimensions of 150mm width, 220mm height, and 100mm depth, ensuring optimal space efficiency while maintaining full functionality.
This specialized enclosure is engineered exclusively for use with the MPX3 32H/MA motor protection system, offering superior reliability and safety. The unit incorporates four conveniently positioned knock-out openings that facilitate straightforward cable connections, streamlining the installation process. The transparent cover option is not available on this model, providing a solid, opaque design that protects internal components from environmental exposure. The enclosure maintains an IK07 impact resistance rating, ensuring durability against mechanical stress in industrial settings.
The MPX3 32H/MA enclosure is specifically designed for tertiary and industrial installations where motor protection and control are critical. It provides a sealed housing solution with the possibility of sealing in the OFF position, adding an extra layer of safety and security. This product is not suitable for emergency stop applications but excels in standard motor protection scenarios. The IP40 internal degree of protection combined with the IP65 external rating ensures comprehensive safeguarding of the motor control components within.
Key Features
- IP65 protection rating against dust and water ingress for industrial environments
- Four conveniently positioned knock-out openings for easy cable connections
- Durable plastic construction with IK07 impact resistance rating
- Possibility of sealing in OFF position for enhanced safety and security
- Specifically designed for exclusive use with MPX3 32H/MA motor protection system
Technical Specifications
| Specification |
Value |
| Product Reference | 417481 |
| EAN Code | 3414970397485 |
| Brand | Legrand |
| Model Series | MPX3 |
| Housing Material | Plastic |
| Width | 150 mm |
| Height | 220 mm |
| Depth | 100 mm |
| External Protection Index | IP65 |
| Internal Protection Index | IP40 |
| NEMA Rating | NEMA 2 |
| Impact Strength Rating | IK07 |
| Transparent Cover | No |
| Suitable for Emergency Stop | No |
| Mounting Type | Surface mounting |
| Number of Knock-out Openings | 4 |
| Compatible Device | MPX3 32H/MA only |
| Application Type | Motor circuit breaker protection |
| Installation Category | Tertiary and Industrial |
| Sealing Capability | Sealing in OFF position possible |
Order Legrand MPX3 32H/MA Motor Circuit Breaker Enclosure IP65 | 417481 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
