Shop Legrand Mosaic XLR 3-pin Male Audio Socket 2 Modules White | 078756 In Iraq Best Prices
Professional 3-pole XLR audio socket with 2-module design for high-quality stereo audio transmission. Features matte white finish, IP40 rating, and snap-engage installation for seamless integration with Mosaic programme mechanisms.

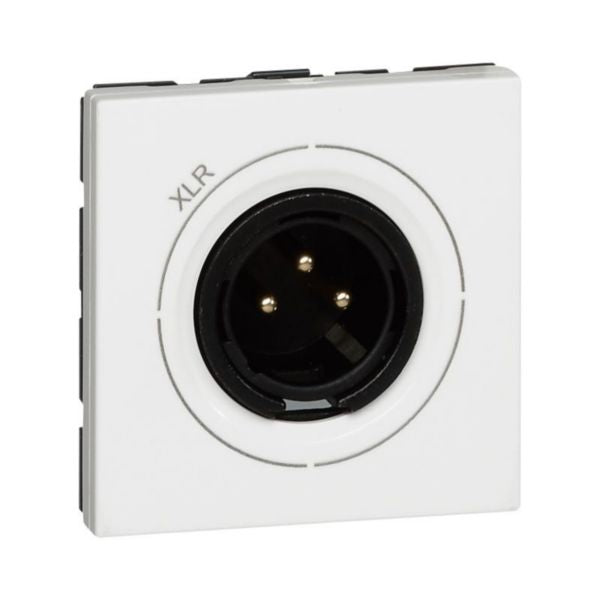

The Legrand Mosaic XLR 3-pin Male Audio Socket is a professional-grade audio connection device designed for high-quality stereo audio transmission in residential and commercial applications. This modular device features a 3-pole XLR connector configuration that provides reliable connectivity for microphones, amplifiers, mixing consoles, and other professional audio equipment. The socket is engineered to deliver clear, uninterrupted audio signals with minimal interference, making it ideal for home entertainment systems, professional studios, and integrated building installations.
This 2-module Mosaic audio socket is constructed from durable thermoplastic material with a matte white finish that complements modern interior designs. The device supports shielded audio cables ranging from 0.14 mm² to 0.5 mm² in cross-section, with a maximum recommended cable length of 50 meters without amplification. The socket features a straight outlet direction for convenient installation and is designed to integrate seamlessly with the Mosaic programme mechanisms for domestic switching devices, offering a complete and cohesive wiring solution.
With its IP40 rating and IK04 impact resistance, this audio socket provides reliable performance in various indoor environments while maintaining professional audio standards. The device operates efficiently across a temperature range of -5°C to 50°C, ensuring consistent performance in different seasonal conditions. Installation is straightforward through the snap-engage fastening method, and the compact 45mm x 45mm dimensions make it suitable for standard wall-mounted installation boxes with a minimum depth of 40mm.
Key Features
- 3-pole XLR connector for professional stereo audio transmission
- 2-module modular design compatible with Mosaic programme mechanisms
- Supports shielded cables 0.14 mm² to 0.5 mm² with 50m maximum length
- IP40 rated for indoor protection and IK04 impact resistance
- Matte white thermoplastic construction with durable finish
Technical Specifications
| Specification |
Value |
| Brand | Legrand |
| Product Line | Mosaic |
| Reference Number | 078756 |
| EAN Code | 3245060787561 |
| Connector Type | 3-pole XLR Male |
| Number of Modules | 2 |
| Color | White |
| Material | Thermoplastic |
| Surface Finish | Matte |
| Outlet Direction | Straight |
| Installation Method | Surface mounted with snap-engage fastening |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Built-in Depth | 23 mm |
| Minimum Installation Box Depth | 40 mm |
| IP Rating | IP40 |
| Impact Resistance (IK) | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Suitable Cable Size | 0.14 mm² to 0.5 mm² shielded |
| Maximum Cable Length | 50 m without amplifier |
| Dust Cover | No |
| Hinged Lid | No |
| Antimicrobial Treatment | No |
| Shielded Housing | No |
Order Legrand Mosaic XLR 3-pin Male Audio Socket 2 Modules White | 078756 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
