Shop Legrand Mosaic USB-Link Charger Type A+C 3A 15W Black | 079193L In Iraq Best Prices
Dual USB charging socket with Type-A and Type-C ports, 3.0A 15W output, flush-mounted Mosaic design for modern homes and commercial spaces

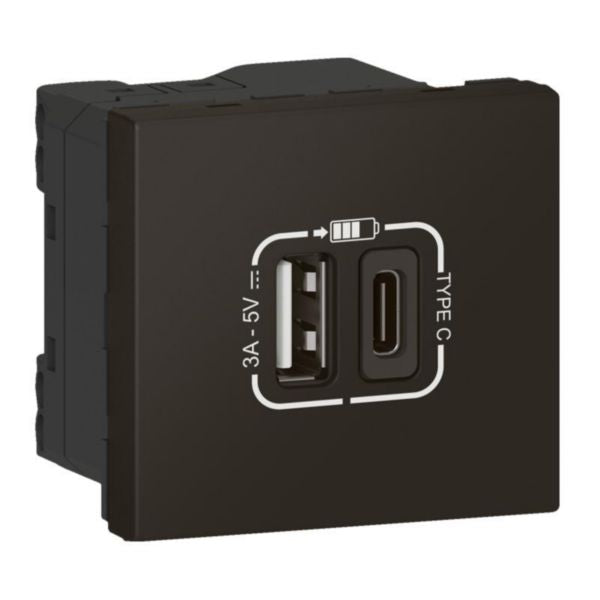

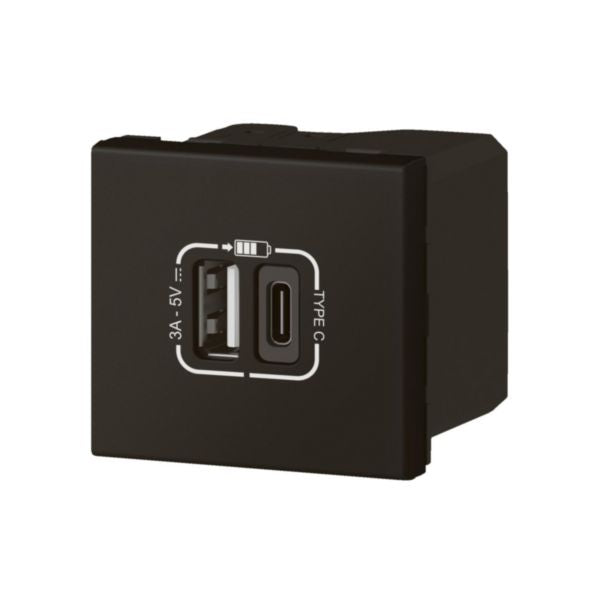

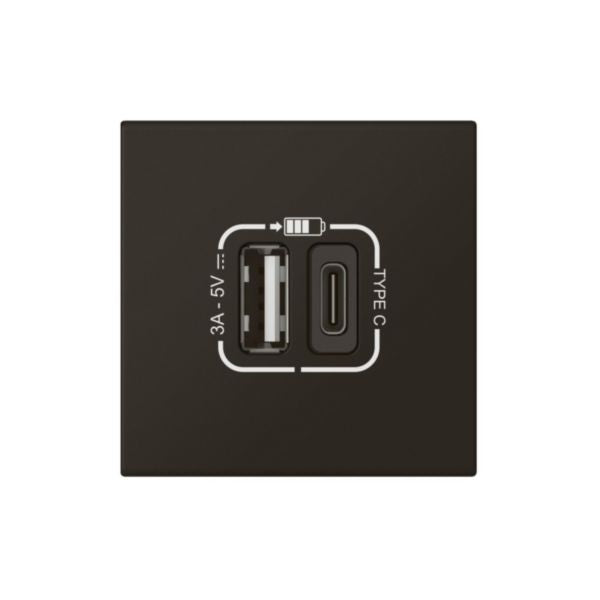

The Legrand Mosaic USB-Link Charger is a modern, dual-port charging solution designed for contemporary homes and buildings. This 2-module flush-mounted device combines both USB Type-A and USB Type-C ports in a single elegant unit, providing versatile charging capabilities for multiple devices simultaneously. With a maximum output current of 3000mA and 15W power delivery, it efficiently charges smartphones, tablets, and other USB-compatible devices at optimal speeds.
This premium charging socket features advanced safety characteristics including halogen-free construction, IP40 protection rating, and IK04 impact resistance. The device operates on standard AC voltage (100-240V, 50-60Hz) and maintains consistent 5V output, making it compatible with global electrical standards. The screwed terminal connection type ensures secure and reliable installation, while the flush-mounted design seamlessly integrates into standard installation boxes with a minimum depth of 40mm.
The Mosaic USB-Link Charger represents the perfect blend of functionality and aesthetic design, featuring a sleek black matte finish that complements any interior décor. Whether for residential or small commercial applications, this dual-port USB charging solution eliminates the need for multiple adapters and provides a clean, organized power management solution for modern living spaces.
Key Features
- Dual USB ports: One Type-A and one Type-C for universal device compatibility
- High-speed charging: 3000mA maximum output current with 15W power delivery
- 2-module Mosaic design: Elegant black matte finish integrates seamlessly into modern interiors
- Global voltage compatibility: 100-240V AC, 50-60Hz for worldwide use
- Advanced safety: IP40 protection rating, IK04 impact resistance, halogen-free construction
- Flush-mounted installation: Secure screwed terminal connection for reliable mounting
- Consistent 5V output: Optimized charging performance for all USB devices
- Compact dimensions: 45mm width and height for standard installation boxes
Technical Specifications
| Specification |
Value |
| Product Type | USB Charging Socket - Dual Port |
| Number of Modules | 2 modules |
| USB Ports | 1x USB Type-A + 1x USB Type-C |
| Maximum Output Current | 3000 mA (3.0A) |
| Output Power | 15W |
| Output Voltage | 5V DC |
| Input Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.066 W |
| Supply Current | 0.5A |
| Connection Type | Screwed Terminal |
| Mounting Method | Flush-mounted |
| Cable Section | 1.5-2.5 mm² |
| Terminal Capacity | 1.5-2.5 mm² |
| Number of Terminals | 2 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Colour | Black (Matte) |
| Protection Rating (IP) | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | 5-35 °C |
| Storage Temperature Range | -20-70 °C |
| Voltage Type | AC |
| Power Delivery | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Cable Type | Flexible or Rigid |
| Reference Number | 079193L |
| EAN Code | 3414971579415 |
| Brand | Legrand |
| Collection | Mosaic |
Order Legrand Mosaic USB-Link Charger Type A+C 3A 15W Black | 079193L at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
