Shop Legrand Mosaic TV/R/SAT Socket Screened Insulated 2 Modules White | 078786 In Iraq Best Prices
Professional 2-module TV/R/SAT socket with Class A shielding, UHD compatibility, and LTE 4G protection for DVBT, Cablecast, and satellite installations

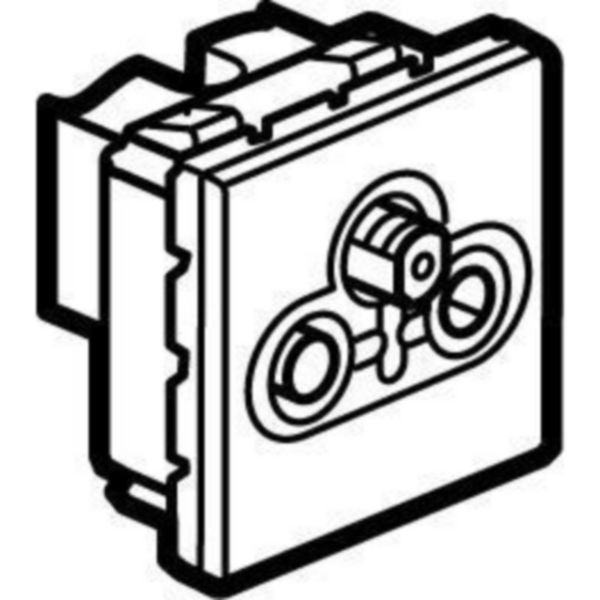

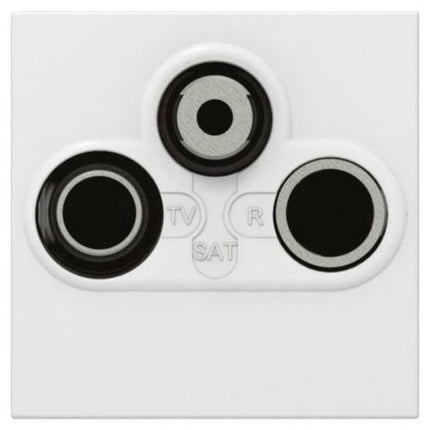

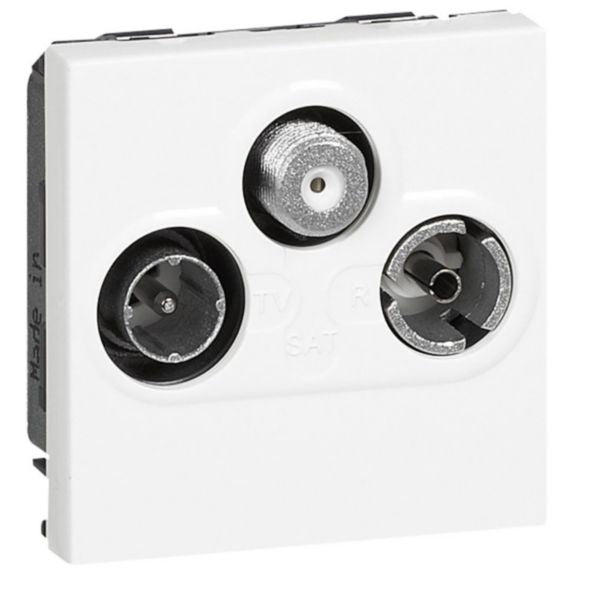

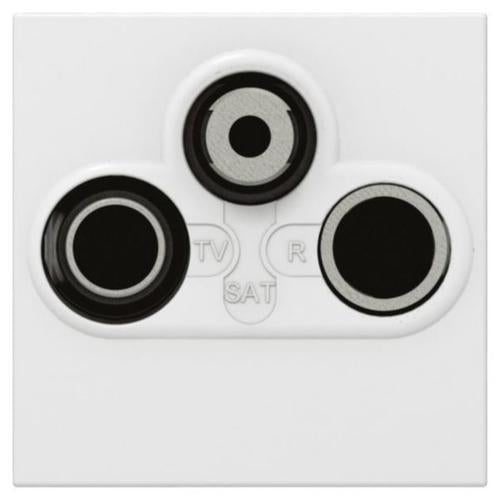

The Legrand Mosaic TV socket is a professional-grade television outlet designed for comprehensive DVBT, Cablecast, and satellite installations. This 2-module white socket features advanced shielding technology with Class A star socket design that is LTE Ready and 4G protected, ensuring superior signal quality and interference prevention. The socket accommodates three different connector types: TV with male connector (Ø9.5 mm) for 5-68 / 320-862 MHz, R with female connector (Ø9.5 mm) for 87.5-240 MHz, and SAT with F-type connector for 950-2400 MHz frequencies.
This UHD TV compatible socket meets the stringent EN 50083-4 and EN 50083-2 European directives, making it ideal for modern digital television systems. The recommended 17 VATC coaxial cable ensures optimal performance with low attenuation of 1.5 dB at 860 MHz and 2 dB at 2150 MHz. The star cabling system allows each socket to connect directly to an antenna, splitter, or multiswitch, with visual connection checking capability for installation verification.
Designed for residential and commercial applications, this Mosaic socket features a sleek white thermoplastic construction with IP20 protection rating and IK04 impact resistance. The modular snap-mounting design integrates seamlessly into standard receptacles for floor sockets, offering flexible installation options. With operating temperatures from -5°C to 35°C and halogen-free materials, this socket represents a reliable and safe solution for modern television distribution systems.
Key Features
- Class A shielded star socket design with LTE Ready and 4G protection
- Triple connector compatibility: TV (male Ø9.5mm), R (female Ø9.5mm), and SAT (F-type)
- UHD TV compatible with EN 50083-4 and EN 50083-2 European directive compliance
- Low attenuation performance: 1.5 dB at 860 MHz and 2 dB at 2150 MHz
- Star cabling system with visual connection checking and flexible installation options
Technical Specifications
| Specification |
Value |
| Brand | Legrand |
| Product Series | Mosaic |
| Socket Type | TV/R/SAT (TV/Radio/Satellite) |
| Number of Modules | 2 modules |
| Color | White |
| TV Connector | Male connector (Ø9.5 mm), 5-68 / 320-862 MHz |
| Radio Connector | Female connector (Ø9.5 mm), 87.5-240 MHz |
| SAT Connector | F-type connector, 950-2400 MHz |
| Number of Outlets | 3 outlets |
| Attenuation at 860 MHz | 1.5 dB |
| Attenuation at 2150 MHz | 2 dB |
| Shielding Class | Class A with star socket design |
| LTE Protection | Yes, LTE Ready and 4G protected |
| UHD TV Compatible | Yes |
| European Compliance | EN 50083-4 and EN 50083-2 |
| Recommended Cable | 17 VATC coaxial cable |
| Mounting Method | Snap mounting (engagement) |
| Material | Thermoplastic |
| Halogen Free | Yes |
| IP Rating | IP20 |
| Impact Resistance (IK) | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 33 mm |
| Minimum Built-in Installation Box Depth | 40 mm |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| RAL Color Code | 9003 |
| Surface Protection | Untreated |
| Surface Finishing | Glossy |
| Reference Number | 078786 |
| EAN Code | 3245060787868 |
| Installation Type | Modular device for domestic switching devices |
| Remote Power Supply Support | Yes |
| DAB+ Support | Yes |
| Cable Modem Compatible | No |
