Shop Legrand Mosaic TV Socket Single Type F 1 Module White | 078790 In Iraq Best Prices
Premium single-type F TV socket with Class A shielding, UHD compatibility, and LTE protection for DVBT, Cablecast, and satellite installations. Low 1 dB attenuation, EN 50083 compliant, and white Mosaic module design.

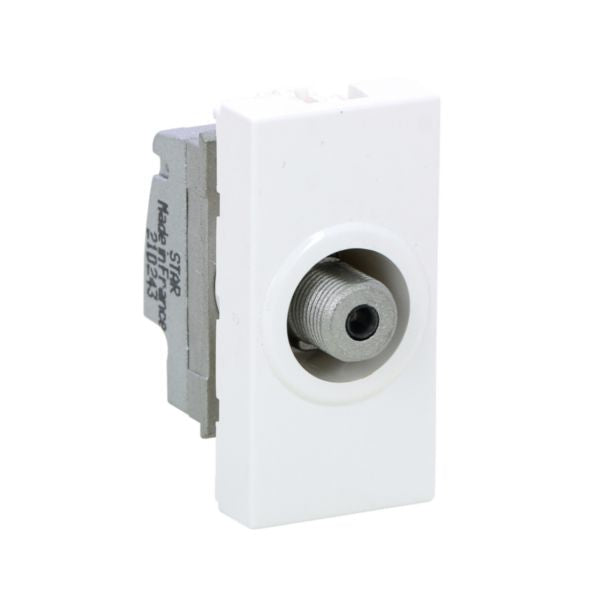

The Legrand Mosaic TV Socket is a premium single-type F television outlet designed for modern residential and commercial installations. This UHD TV compatible socket features Class A shielded star socket technology with LTE Ready (4G protected) capabilities, ensuring superior signal reception and protection against electromagnetic interference. The socket is engineered to meet European directives EN 50083-4 and EN 50083-2, making it suitable for DVBT, Cablecast, and satellite installations.
With a low attenuation rating of just 1 dB at TV frequencies, this single-module socket delivers exceptional performance across the 5-68/120-862 MHz frequency range for television signals. The F-type connector accommodates satellite frequencies from 950-2400 MHz, providing comprehensive coverage for all modern television broadcasting standards. The recommended 17 VATC coaxial cable and star cabling configuration ensure optimal signal quality and easy installation.
This white plastic module integrates seamlessly into the Mosaic program frame system, featuring snap mounting for quick and secure installation in standard flush-mounted boxes. The device includes visual checking of connections for user convenience and is halogen-free for environmental safety. With operating temperatures from -5 to 35°C and storage capabilities from -10 to 70°C, this socket is built for reliable long-term performance in various environmental conditions.
Key Features
- UHD TV Compatible - Supports ultra-high-definition television signals for modern viewing experience
- Class A Shielded Star Socket - Superior electromagnetic interference protection and signal quality
- LTE Ready (4G Protected) - Built-in protection against 4G cellular interference for uninterrupted reception
- Low Attenuation (1 dB) - Minimal signal loss ensures strong, clear picture and sound quality
- Comprehensive Frequency Support - Covers DVBT (5-68/120-862 MHz), Cablecast, and Satellite (950-2400 MHz)
- EN 50083 Compliant - Meets European standards for television socket performance and safety
- Star Cabling Configuration - One socket equals one dedicated cable for optimal signal integrity
- Visual Connection Checking - Built-in visual indicators for proper connection verification
- Halogen-Free Design - Environmentally safe and compliant with RoHS regulations
- Snap Mounting System - Quick and secure installation in standard flush-mounted boxes
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic TV Socket - Single Type F |
| Reference Number | 078790 |
| EAN Code | 3414970997975 |
| Brand | Legrand |
| Program Series | Mosaic |
| Socket Type | TV - Single Type F |
| Number of Modules | 1 module |
| Mounting Method | Snap mounting (engagement) |
| Assembly Type | Modular device for domestic switching devices |
| Number of Outlets | 1 |
| TV Frequency Range | 5-68/120-862 MHz |
| Satellite Frequency Range | 950-2400 MHz |
| Tap Loss at 860 MHz | 1 dB |
| Tap Loss at 2150 MHz | 1.5 dB |
| Connector Type | F-type connector (Ø9.5 mm) |
| Suitable for Cable Modem | No |
| Suitable for Remote Power Supply | Yes |
| Color | White |
| RAL Number | 9003 (similar) |
| Material | Thermoplastic |
| Surface Protection | Untreated |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Degree of Protection (IP) | IP21 |
| Impact Strength Rating (IK) | IK03 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 35.5 mm |
| Minimum Built-in Installation Box Depth | 23.5 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Recommended Coaxial Cable | 17 VATC |
| Cabling Configuration | Star cabling (1 socket = 1 cable) |
| European Compliance | EN 50083-4 and EN 50083-2 |
| Installation Type | DVBT, Cablecast, Satellite |
| UHD TV Compatible | Yes |
| LTE Ready (4G Protected) | Yes |
| DAB+ Compatible | No |
