Premium Legrand Mosaic single TV socket with 9.52mm male connector, 2 modules, white finish. UHD compatible, Class A shielded, LTE Ready, low 1dB attenuation, meets EN 50083 standards.

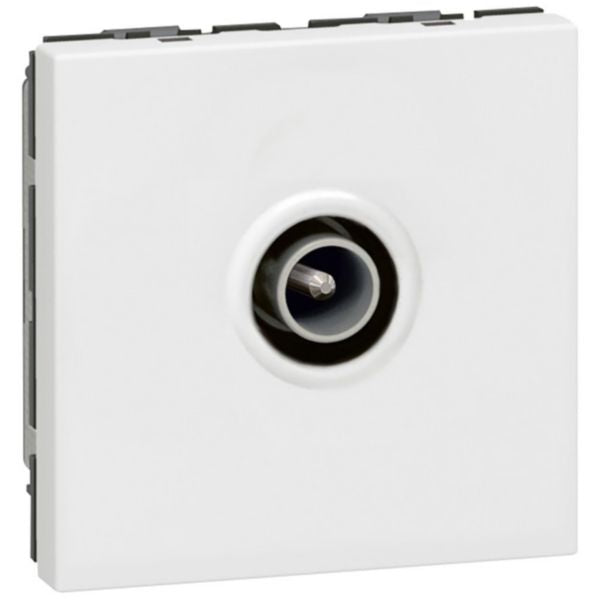

The Legrand Mosaic TV socket is a premium single television outlet designed for modern residential and commercial installations. This 2-module white socket features a male connector with 9.52mm diameter, specifically engineered for DVBT, Cablecast, and satellite installations. The socket is UHD TV compatible and features Class A shielded star socket technology that is LTE Ready with 4G protection, ensuring reliable signal reception in today's demanding communication environment.
This television socket meets the stringent European standards EN 50083-4 and EN 50083-2, guaranteeing compliance with international broadcasting directives. The low attenuation design delivers only 1 dB at TV frequencies, minimizing signal loss across the 5-68/120-862 MHz range for TV, 87.5-108 MHz for radio (R), and 950-2400 MHz for satellite connections. The socket is constructed from high-quality thermoplastic material with a glossy white finish (RAL 9003), providing durability and aesthetic appeal.
The Mosaic TV socket incorporates visual connection checking capabilities and supports star cabling architecture where each socket connects directly to the antenna, splitter, or multiswitch through individual cables. With an IP21 degree of protection and IK03 impact strength rating, this modular device is suitable for installation in receptacles for floor sockets and offers excellent reliability in various environmental conditions.
Key Features
- UHD TV Compatible - Supports modern ultra-high-definition television standards
- Class A Shielded Star Socket - LTE Ready with 4G protection for reliable signal reception
- Low Attenuation Design - Only 1 dB at TV frequencies for minimal signal loss
- European Standards Certified - Meets EN 50083-4 and EN 50083-2 broadcasting directives
- Visual Connection Checking - Built-in visual verification of proper cable connections
- Multi-Frequency Support - Covers TV (5-68/120-862 MHz), Radio (87.5-108 MHz), and Satellite (950-2400 MHz)
- Modular Installation - 2-module design installable in floor socket receptacles
- Durable Construction - Thermoplastic material with glossy white finish (RAL 9003)
- Environmental Protection - IP21 degree of protection and IK03 impact strength rating
- Star Cabling Architecture - Each socket connects directly to antenna or multiswitch
Technical Specifications
| Specification |
Value |
| Product Type | Television Socket - Single End Socket |
| Connector Type | Male connector with 9.52mm diameter (Ø9.52 mm) |
| Number of Modules | 2 modules |
| Color | White (RAL 9003) |
| Mounting Method | Snap mounting (engagement) - Modular frame installation |
| Frequency Ranges | TV: 5-68/120-862 MHz, Radio: 87.5-108 MHz, SAT: 950-2400 MHz |
| Tap Loss at 860 MHz | 1 dB |
| Tap Loss at 2150 MHz | 1.5 dB |
| Material | Thermoplastic (Halogen free) |
| Surface Finishing | Glossy |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK03 |
| Device Dimensions | Width: 45 mm, Height: 45 mm, Depth: 32.5 mm |
| Minimum Built-in Installation Box Depth | 23.5 mm |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Number of Outlets | 1 |
| Remote Power Supply Compatible | Yes |
| Cable Modem Compatible | No |
| Standards Compliance | EN 50083-4 and EN 50083-2 |
| Reference Number | 078782 |
| EAN Code | 3245060787820 |
