Shop Legrand Mosaic TV Socket Single Male 9.52mm 2 Modules Aluminium | 079292 In Iraq Best Prices
Premium Legrand Mosaic TV socket with 9.52mm male connector, 2-module design, UHD compatible, LTE ready, aluminum finish, meets EN 50083 standards, low attenuation, ideal for residential and commercial installations.

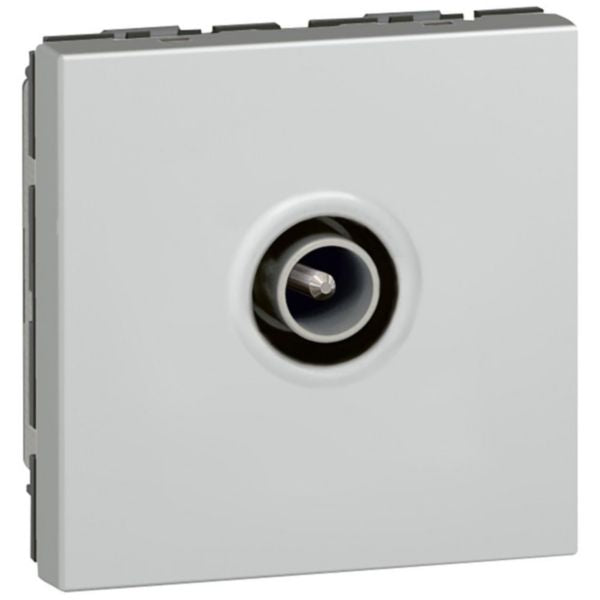

The Legrand Mosaic TV socket is a premium single male television socket designed for DVBT, Cablecast, and satellite installations with full UHD TV compatibility. This Class A shielded star socket features advanced LTE Ready (4G protected) technology, ensuring superior signal quality and protection against electromagnetic interference. The socket utilizes a 9.52mm male connector configuration compatible with standard coaxial cables, supporting frequency ranges of 5-68/120-862 MHz for television reception. The aluminum finish provides an elegant, contemporary aesthetic that seamlessly integrates into modern home and building environments.
This 2-module Mosaic TV socket is engineered to meet stringent European standards EN 50083-4 and EN 50083-2, guaranteeing reliable performance and safety compliance. The socket features low attenuation of 1 dB at TV frequencies and 1.5 dB at 2150 MHz, ensuring minimal signal loss and optimal picture quality. The innovative star cabling design allows for individual cable routing from the antenna, splitter, or multiswitch directly to each socket, eliminating the need for complex distribution systems. Visual connection checking capability enables quick verification of proper installation, while the thermoplastic plastic construction with halogen-free materials ensures environmental compliance and user safety.
The device is housed in a sleek aluminum finish with glossy lacquered surface protection, offering both durability and aesthetic appeal. With dimensions of 45mm width, 45mm height, and 32.5mm depth, it fits seamlessly into standard flush-mounted installation boxes requiring a minimum depth of 23.5mm. The socket maintains operational stability across temperatures from -5°C to 35°C, making it suitable for diverse climate conditions. The IP21 degree of protection and IK03 impact strength rating provide robust protection against dust and minor physical damage, ensuring long-term reliability in residential and commercial applications.
Key Features
- UHD TV Compatible - Supports latest high-definition television standards
- LTE Ready (4G Protected) - Advanced electromagnetic interference protection
- Class A Shielded Star Socket - Superior signal quality and minimal cross-talk
- Low Attenuation Design - 1 dB at TV frequencies, 1.5 dB at 2150 MHz
- Individual Star Cabling - Direct cable routing from antenna/splitter to socket
- Visual Connection Checking - Quick verification of proper installation
- European Standards Compliant - Meets EN 50083-4 and EN 50083-2
- Halogen-Free Materials - Environmentally safe and user-friendly
- Aluminum Finish - Elegant, contemporary aesthetic design
- Wide Temperature Range - Operational stability from -5°C to 35°C
Technical Specifications
| Specification |
Value |
| Product Type | TV Socket - Single Male |
| Connector Type | Male Ø9.52 mm (IEC connector) |
| Number of Modules | 2 modules |
| Mounting Method | Snap mounting (engagement) - Modular frame |
| Color/Finish | Aluminium with glossy lacquered surface protection |
| Material | Thermoplastic - Halogen free |
| Frequency Range | 5-68/120-862 MHz (TV), 87.5-108 MHz (R), 950-2400 MHz (SAT) |
| Attenuation at 860 MHz | 1 dB |
| Attenuation at 2150 MHz | 1.5 dB |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK03 |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 32.5 mm |
| Minimum Built-in Box Depth | 23.5 mm |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Number of Outlets | 1 |
| European Standards | EN 50083-4, EN 50083-2 |
| Remote Power Supply Compatible | Yes |
| Antimicrobial Treatment | No |
| Reference Number | 079292 |
| EAN Code | 3245060792923 |
