Shop Legrand Mosaic TV Socket Male/Female 9.52mm | 078783 In Iraq Best Prices

Professional 2-module TV socket with male/female 9.52mm connectors, low RF signal loss, halogen-free construction, and IP20 protection rating for residential and commercial applications.

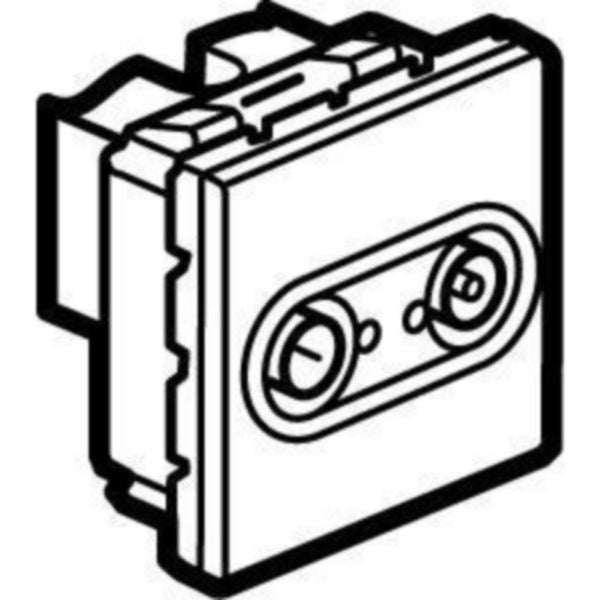

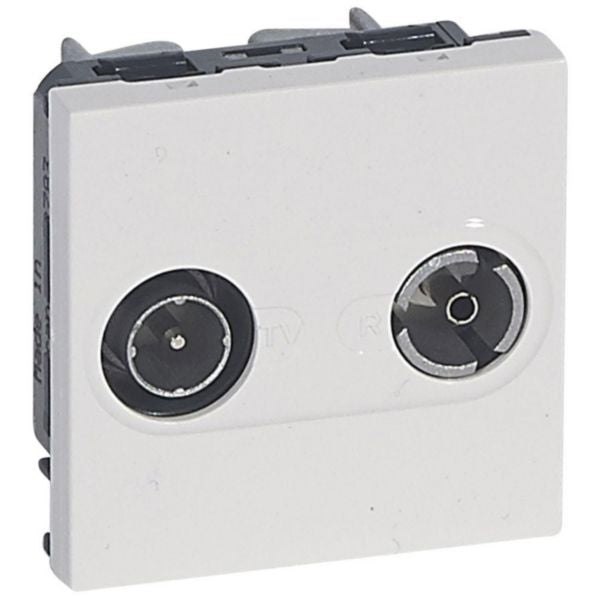

The Legrand Mosaic TV Socket (Reference 078783) is a professional-grade end socket designed for television and audio/video applications. This 2-module modular device features a male/female configuration with 9.52mm connectors, providing reliable RF signal transmission with minimal tap loss of 1.5 dB at 860 MHz. The socket is constructed from high-quality thermoplastic material and is halogen-free, making it suitable for modern residential and commercial installations. The device offers excellent protection ratings with IP20 degree of protection and IK04 impact strength, ensuring durability in various installation environments. This Mosaic range socket outlet is designed for snap mounting on modular frames and is compatible with standard domestic switching devices. The white finish with RAL 9003 color specification ensures aesthetic compatibility with contemporary interior designs. Operating temperature range of -5 to 35°C and storage temperature range of -10 to 70°C provide flexibility for various climate conditions. The product includes comprehensive technical documentation and BIM data for architectural integration, making it an ideal choice for modern building projects requiring high-quality audio/video connectivity solutions.

Key Features

2-module modular design for flexible installation on domestic switching frames
Male/Female 9.52mm connectors with minimal 1.5 dB tap loss at 860 MHz
Halogen-free thermoplastic construction for safety and environmental compliance
IP20 degree of protection with IK04 impact strength rating
White RAL 9003 color finish with glossy surface protection
Snap mounting engagement for quick and secure installation
Operating temperature range -5 to 35°C for diverse climate conditions
Includes comprehensive technical documentation and BIM data

Technical Specifications

Specification	Value
Model	End Socket (PRISE TV / RD MALE/FEM.9,52 TYPE ECH01)
Reference Number	078783
EAN Code	3245060787837
Number of Modules	2
Number of Outlets	2
Connector Type	Male/Female 9.52mm
Tap Loss at 860 MHz	1.5 dB
Mounting Method	Snap Mounting (Engagement)
Assembly Arrangement	Modular Device for Domestic Switching Devices
Device Width	45 mm
Device Height	45 mm
Device Depth	33 mm
Minimum Built-in Installation Box Depth	40 mm
Color	White
RAL Number	9003
Surface Finishing	Glossy
Material	Thermoplastic
Material Quality	High-Quality Plastic
Halogen Free	Yes
Antimicrobial Treatment	No
Degree of Protection (IP)	IP20
Degree of Impact Strength (IK)	IK04
Operating Temperature Range	-5 to 35°C
Storage Temperature Range	-10 to 70°C
Type of Socket Outlet	Other (Audio/Video)
Suitable for Cable Modem	No
Suitable for Remote Power Supply	No
DAB+ Compatible	No

Order Legrand Mosaic TV Socket Male/Female 9.52mm | 078783 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
