Description

Shop Legrand Mosaic Triple Socket 3x2P+E Socket Outlet Tamperproof Trunking | 077623 In Iraq Best Prices

Professional triple 2P+E socket outlet with tamperproof design, screw terminals, and enhanced safety features for DLP trunking installation. 16A/250V rated with IP20 protection.

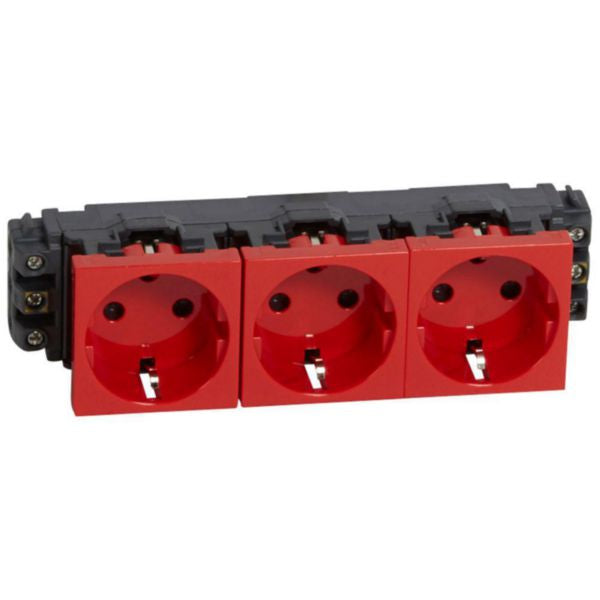

The Legrand Mosaic Triple 2P+E Socket Outlet is a professional-grade electrical outlet designed for installation on DLP trunking systems following German standards. This tamperproof socket features three 2P+E outlets with protective contact CEE 7/3 (Type F) configuration, making it ideal for both residential and commercial applications requiring enhanced safety. The outlet is equipped with screw terminals for secure and reliable connections, supporting flexible or rigid cables with cross-sections from 4-4 mm². With its modular design occupying 6 modules in the Mosaic programme, it integrates seamlessly into existing electrical installations. This socket outlet is specifically engineered for mounting on 65 and 85 mm cover DLP trunking with direct connection requiring no tools and intuitive disconnection without dismantling supports. The tamperproof design with enhanced contact protection ensures maximum safety, particularly in environments where child safety is paramount. Operating at nominal 16A and 250V with 50-60 Hz frequency, it meets all safety standards with IP20 protection rating and IK04 impact strength rating. The glossy red finish (RAL 3020) provides clear visibility and professional appearance. The product includes loop-through functionality enabling daisy-chain installation for expanded outlet coverage. All components are manufactured from halogen-free thermoplastic materials, demonstrating environmental responsibility without compromising durability. With its comprehensive technical specifications and robust construction, this Mosaic socket outlet represents a premium solution for modern electrical distribution requirements.

Key Features

Triple 2P+E socket outlets with CEE 7/3 Type F protective contact configuration
Tamperproof design with enhanced contact protection for child safety
Screw terminals supporting 4-4 mm² flexible or rigid cables
Direct tool-free connection with intuitive disconnection without dismantling supports
Modular design occupying 6 modules in Mosaic programme with loop-through functionality
Halogen-free thermoplastic construction for environmental responsibility
IP20 protection rating and IK04 impact strength rating
Red glossy finish (RAL 3020) for clear visibility and professional appearance
Operates at 16A nominal current and 250V nominal voltage at 50-60 Hz
Compatible with 65 and 85 mm cover DLP trunking systems

Technical Specifications

Specification	Value
Product Type	Socket outlet with protective contact CEE 7/3 (Type F)
Number of Socket Outlets	3
Number of Modules	6
Number of Active Contacts	6 round contacts
Nominal Current	16 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Connection Type	Screw terminal
Cable Section	4-4 mm² (flexible or rigid)
Protection Rating	IP20
Impact Strength Rating	IK04
Device Width	162 mm
Device Height	45 mm
Device Depth	45 mm
Built-in Depth	45 mm
Material	Halogen-free thermoplastic
Surface Finishing	Glossy
Colour	Red (RAL 3020)
Mounting Method	Wall duct (DLP trunking 65-85 mm)
Fastening Type	Snap mounting (engagement)
Enhanced Contact Protection	Yes
Tamperproof	Yes
Loop Through Function	Yes
Operating Temperature Range	-5 to +35°C
Storage Temperature Range	-10 to +70°C
Voltage Type	AC
Assembly Arrangement	Modular device for domestic switching devices
Switching Neutral Conductor	No
Reference Number	077623
EAN Code	3245060776237

Order Legrand Mosaic Triple Socket 3x2P+E Socket Outlet Tamperproof Trunking | 077623 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
