Description

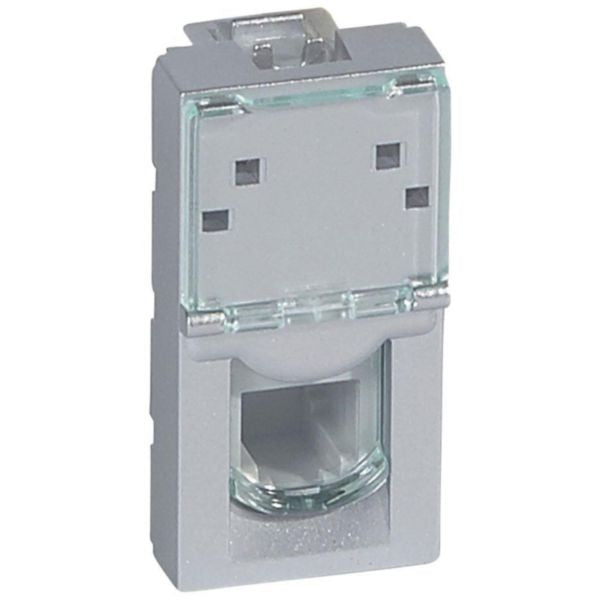

Shop Legrand Mosaic Telephone Socket RJ11 4 Contacts Aluminium | 079231 In Iraq Best Prices

Legrand Mosaic modular telephone socket with RJ11 connector, 4 contacts, aluminium finish, IP20 protection, ideal for residential and commercial wiring installations.

The Legrand Mosaic Telephone Socket RJ11 is a premium modular wiring device designed for residential and commercial applications. This high-quality telephone socket features an RJ11 connector with 4 contacts, making it compatible with standard telephone lines and communication systems. The socket is part of the renowned Mosaic programme by Legrand, known for its elegant design and reliable performance. This telephone socket is equipped with a modular Jack connector featuring a 1/4 turn terminal system that enables fast and secure connections. The aluminium finish provides a modern, professional appearance while maintaining durability and corrosion resistance. The device is designed for duct installation and floor box mounting, offering flexibility in installation methods. With a degree of protection of IP20 and impact strength rating of IK04, this socket ensures reliable performance in various environments. The socket features separate earthing connection capability and includes label space for easy identification. The halogen-free construction makes it environmentally friendly and compliant with modern building regulations. Operating temperatures range from -5°C to 35°C, ensuring reliable operation in diverse climatic conditions. This modular device integrates seamlessly with other Legrand Mosaic components to create comprehensive wiring solutions.

Key Features

Modular RJ11 telephone socket with 4 contacts for standard phone line connectivity
1/4 turn terminal system for fast and secure connections
Aluminium finish with RAL 7040 color for modern professional appearance
Tap-off capability for flexible installation configurations
IP20 degree of protection with IK04 impact strength rating
Separate earthing connection for enhanced safety
Label space for easy device identification and organization
Halogen-free construction for environmental compliance
Compatible with duct installation and floor box mounting
Operating temperature range -5°C to 35°C for reliable performance

Technical Specifications

Specification	Value
Product Type	Modular Telephone Socket
Connector Type	RJ11 with 4 contacts
Number of Modules	1 module
Color	Aluminium (RAL 7040)
Device Width	22.5 mm
Device Height	45 mm
Built-in Depth	40 mm
Installation Type	Duct installation, Floor box/subfloor mounted
Fastening Type	Engage (snap)
Degree of Protection	IP20
Impact Strength Rating	IK04
Terminal System	1/4 turn modular Jack connector
Earthing Connection	Separate earthing connection included
Label Space	Yes
Operating Temperature	-5°C to 35°C
Storage Temperature	-10°C to 70°C
Material Composition	Halogen-free
Antimicrobial Treatment	No
Shielded Housing	No
Dust Cover	Yes
Surface Mounting	No
Category	Category 3
Outlet Direction	Straight
Reference Number	079231
EAN Code	3245060792312

Order Legrand Mosaic Telephone Socket RJ11 4 Contacts Aluminium | 079231 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
