Shop Legrand Mosaic Triple Socket 3x2P+E Socket Outlet Trunking Red | 077613 In Iraq Best Prices
Premium Legrand Mosaic 3x2P+E red socket outlet with screw terminals for DLP trunking installation. Features enhanced contact protection, 16A/250V rating, halogen-free thermoplastic construction, and snap-mounting for secure connection.

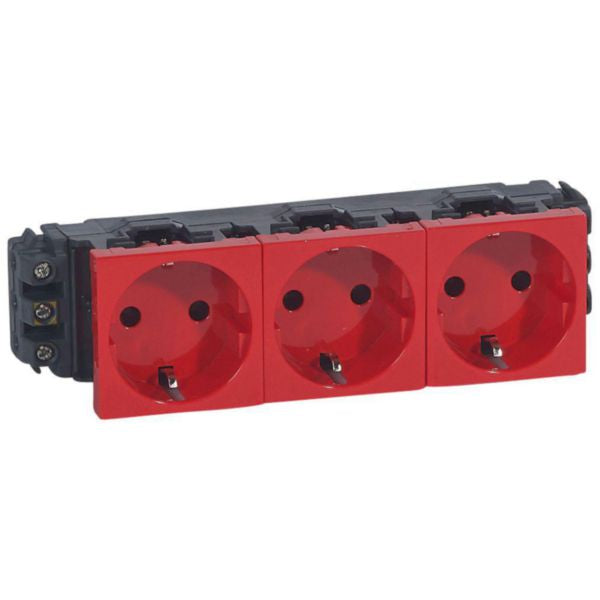

The Legrand Mosaic™ Socket Outlet (REF. 077613) is a premium three-gang power socket designed specifically for installation on DLP trunking systems. This red-colored socket outlet features three 2P+E protective contact outlets (CEE 7/3 type F) with screw terminals for secure and reliable connections. Built to German standard specifications, this modular device is ideal for both residential and commercial applications where organized cable management through trunking systems is required.
This socket outlet is engineered with enhanced contact protection and shutters for safety compliance. The device features a loop-through function allowing for daisy-chain installation on trunking systems without requiring tools for connection. With a nominal current rating of 16A at 250V and 50-60Hz frequency compatibility, it delivers reliable power distribution. The thermoplastic construction is halogen-free, making it environmentally friendly and suitable for modern building standards. The snap-mounting engagement system ensures quick and secure installation on 65 and 85mm cover DLP trunking.
The red color coding indicates this is a special power supply outlet for additional safety applications, distinguishing it from standard outlets in multi-outlet installations. With an IP20 degree of protection and IK04 impact strength rating, this socket outlet provides adequate protection for indoor environments. The device dimensions of 162mm width, 45mm height, and 45mm depth make it compatible with standard trunking profiles. Screw terminal connections accommodate flexible or rigid cables with cross-sections from 4-4mm², ensuring compatibility with various wiring configurations.
Key Features
- Three 2P+E protective contact outlets (CEE 7/3 type F) for safe power distribution
- Screw terminal connections accommodating 4-4mm² flexible or rigid cables
- Enhanced contact protection with integrated shutters for safety compliance
- Loop-through function enabling daisy-chain installation on trunking systems
- Red color coding indicating special power supply for additional safety applications
- Halogen-free thermoplastic construction meeting modern environmental standards
- Snap-mounting engagement system for quick installation on 65 and 85mm DLP trunking
- IP20 degree of protection and IK04 impact strength for indoor environments
- Nominal current rating of 16A at 250V with 50-60Hz frequency compatibility
- German standard compliance for residential and commercial applications
Technical Specifications
| Specification |
Value |
| Product Reference | 077613 |
| EAN Code | 3245060776138 |
| Brand | Legrand |
| Product Line | Mosaic™ |
| Socket Type | 3 x 2P+E (CEE 7/3 type F) |
| Outlet Configuration | Three socket outlets with protective contact |
| Number of Active Contacts | 6 round contacts |
| Number of Modules | 6 module system |
| Connection Type | Screw terminals |
| Cable Section | 4-4 mm² (flexible or rigid) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| Protective Contact | Yes - Enhanced contact protection |
| Contact Protection Feature | Shutters with enhanced protection |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Color | Red (RAL 3020) |
| Color Significance | Special power supply for additional safety |
| Device Width | 162 mm |
| Device Height | 45 mm |
| Device Depth | 45 mm |
| Built-in Depth | 45 mm |
| Mounting Method | Wall duct (DLP trunking) |
| Mounting Type | Snap mounting (engagement) |
| Compatible Trunking Sizes | 65 mm and 85 mm cover DLP trunking |
| Installation Method | Tool-free direct connection with intuitive disconnection |
| Loop Through Function | Yes - Daisy-chain installation supported |
| IP Rating | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature | -5 to +35 °C |
| Storage Temperature | -10 to +70 °C |
| Assembly Arrangement | Modular device for domestic switching devices |
| Standard Compliance | German standard |
| With Hinged Lid | No |
| With Function Lighting | No |
| With Orientation Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| With Miniature Fuse | No |
| Lockable | No |
| Eject Mechanism | No |
| With On/Off Switch | No |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Power Delivery | No |
| Connected Object | No |
