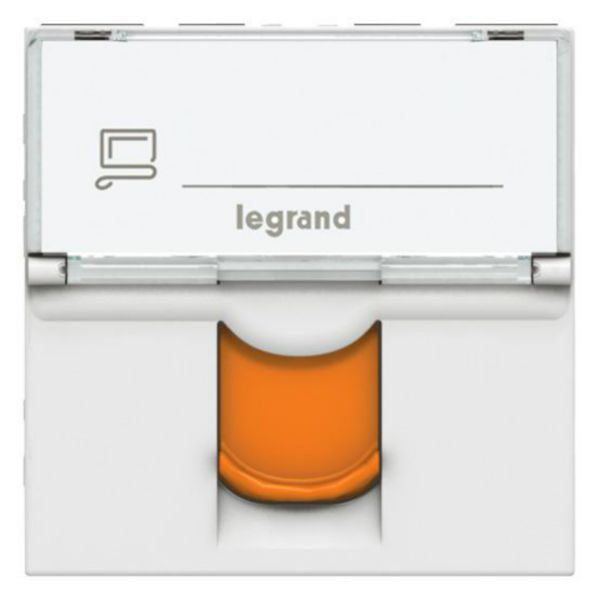

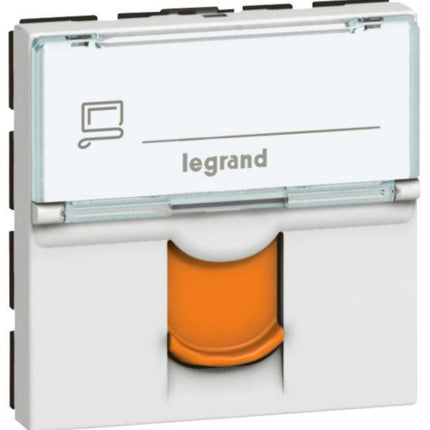

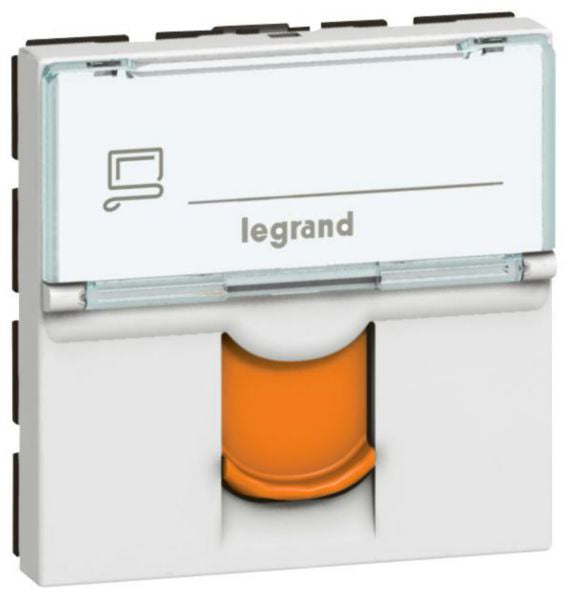

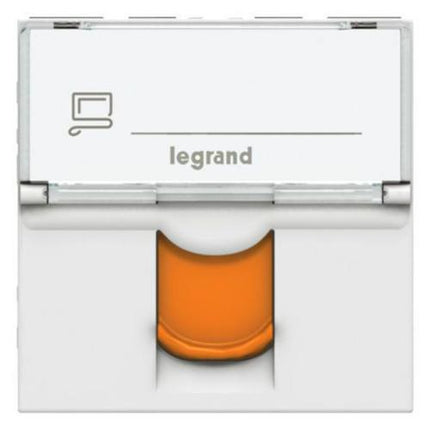

Shop Legrand Mosaic RJ45 Socket Category 6A STP 2 Modules White Orange Shutter | 76525 In Iraq Best Prices
Professional RJ45 Category 6A STP socket with 10 Gbps data transmission, orange dust cover, 2-module design, toolless connection, and PoE support for commercial and residential networks.
The Legrand Mosaic RJ45 Socket Category 6A STP 2 modules in white with orange shutter is a professional-grade network connector designed for high-speed data transmission. This modular socket supports data rates up to 10 Gigabit/s, enabling ultra-fast file downloads and streaming capabilities. The Category 6A STP (Shielded Twisted Pair) design ensures superior signal integrity and protection against electromagnetic interference, making it ideal for demanding commercial and residential installations.
Equipped with an orange protective dust cover, this connector safeguards the connection point from contamination and physical damage. The 2-module configuration allows for flexible installation in standard flush-mounted boxes without requiring additional wall modifications or cable routing. The toolless connector features integrated crimping technology for quick and reliable connections, compatible with RJ11, RJ12, and RJ45 plugs. With its snap-engage fastening system, installation is straightforward and efficient.
This product conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring compatibility and reliability across global networks. The socket supports high-capacity Power over Ethernet (PoE) applications, allowing electrical power transmission alongside data on twisted pair cabling. Perfect for IP and analog phones, downloads, streaming, and online gaming requiring low latency, this connector delivers professional performance in any network environment.
Key Features
- 10 Gigabit/s data transmission rate for ultra-fast downloads and streaming
- Category 6A STP shielded design with electromagnetic interference protection
- Orange protective dust cover for connector safeguarding
- 2-module modular configuration for flexible installation
- Toolless integrated crimping connector for quick reliable connections
- Power over Ethernet (PoE) support for high-capacity applications
- Compatible with RJ11, RJ12, and RJ45 plugs and cords
- Snap-engage fastening system for easy installation
- IP20 degree of protection rating
- Conforms to ISO/IEC 11801, EN 50173-1, and TIA/EIA 568 C standards
Technical Specifications
| Specification |
Value |
| Product Reference | 076525 |
| EAN Code | 3245060765255 |
| Brand | Legrand |
| Product Range | Mosaic |
| Connector Type | RJ45 8(8) |
| Category | 6A (IEC) |
| Shielding Type | STP (Shielded Twisted Pair) |
| Data Rate | Up to 10 Gigabit/s |
| Number of Modules | 2 |
| Color | White with Orange Shutter |
| RAL Number | 9003 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 46.5 mm |
| Built-in Depth | 31 mm |
| Installation Type | Flush-mounted, Duct, Floor box/subfloor mounted |
| Fastening Type | Engage (snap) |
| Connection Type | Insulation displacement connector |
| Dust Cover | Yes - Orange protective cover |
| Degree of Protection | IP20 |
| Impact Strength | IK03 |
| Operating Temperature Range | -40 to 70 °C |
| Storage Temperature Range | -40 to 70 °C |
| Maximum Input Cable Diameter | 9 mm |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Mounting Method | Flush-mounted |
| Suitable for Connectors | 1 |
| With Buses/Couplings | Yes |
| Separate Earthing Connection | No |
| With Label Space | Yes |
| Separate Strain Relief | No |
| Outlet Direction | Straight |
| Colour Coding | Yes |
| Terminal Marking Indication | Yes |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| PoE Support | Yes - High capacity Power over Ethernet |
| Indoor Use Only | Yes |
Order Legrand Mosaic RJ45 Socket Category 6A STP 2 Modules White Orange Shutter | 76525 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
