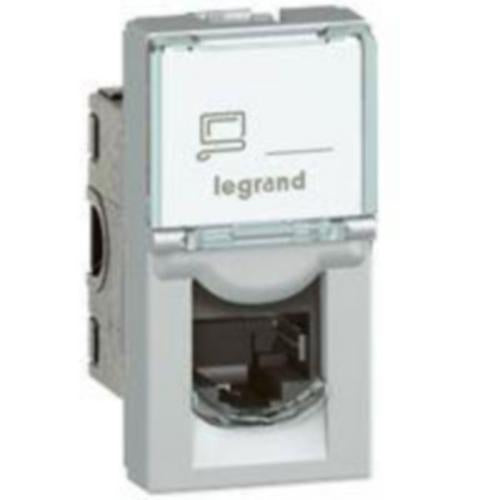

Shop Legrand Mosaic RJ45 Socket Category 6 FTP Aluminium | 079462 In Iraq Best Prices
Professional RJ45 Category 6 FTP network socket with 1 module aluminium design, supporting 1 GigaBit/s data transmission and Power over Ethernet applications. Features toolless quick connection, transparent dust cover, and multi-mount capability for residential and commercial installations.
The Legrand Mosaic RJ45 Socket Category 6 FTP 1 Module in Aluminium is a professional-grade network connector designed for high-speed data transmission up to 1 GigaBit/s. This modular device supports advanced Power over Ethernet (PoE) applications, enabling both data and electric power transmission through twisted pair Ethernet cabling. The socket features a transparent protective dust cover to maintain connector integrity and comes equipped with quick toolless connection technology for simplified installation. Compliant with international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, this connector is ideal for both commercial and residential installations.
The Mosaic RJ45 socket is engineered for versatility and ease of installation in multiple mounting configurations including flush-mounted boxes, duct installations, and floor box/subfloor mounted applications. The slot system allows perfect multigang setting with support frames that can be seamlessly joined, eliminating the need for additional wall groove cutting or complex cabling. With an IP20 degree of protection and IK04 impact strength rating, this connector provides reliable performance in demanding environments. The aluminium finish offers both aesthetic appeal and durability, making it suitable for modern residential and commercial spaces.
This 1-module device features insulation displacement connector (IDC) technology with color coding for proper terminal marking. Compatible with RJ11, RJ12, and RJ45 plugs, the socket delivers exceptional performance for IP and analog phones, streaming applications, online gaming, and other bandwidth-intensive tasks requiring low latency. Operating temperatures range from -40°C to 70°C, ensuring reliable functionality across varied climate conditions. The halogen-free construction meets environmental compliance requirements, making it an eco-friendly choice for contemporary electrical installations.
Key Features
- High-speed RJ45 Category 6 FTP connector supporting data transmission up to 1 GigaBit/s
- Power over Ethernet (PoE) compatible for simultaneous data and power delivery

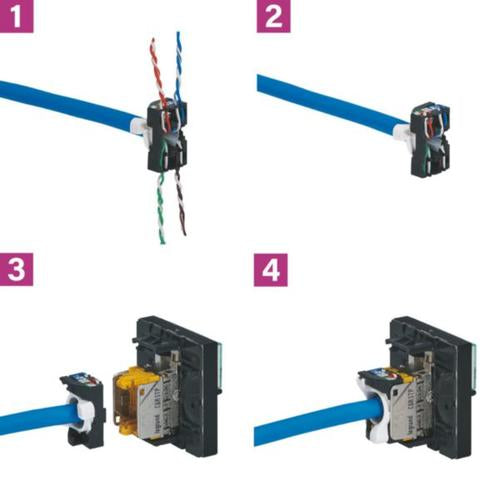

- Toolless quick connection with integrated crimping for fast and easy installation
- Transparent protective dust cover protecting connector from contamination
- Compatible with RJ11, RJ12, and RJ45 plugs for universal connectivity
- Modular 1-module design with slot system for perfect multigang configuration
- Suitable for flush-mounted, duct, and floor box/subfloor installations
- Color-coded terminals with clear labeling for proper identification
- IP20 degree of protection with IK04 impact strength rating
- Halogen-free construction meeting environmental compliance standards
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Category 6 FTP |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 1 module |
| Color | Aluminium |
| Connection Type | Insulation Displacement Connector (IDC) |
| Connector Type | RJ45 8(8) |
| Category | Category 6 FTP |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 33.7 mm |
| Built-in Depth | 25.2 mm |
| Maximum Input Cable Diameter | 9 mm |
| IP Rating | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Type of Fastening | Engage (Snap) |
| Installation Types | Flush-mounted, Duct, Floor box/Subfloor |
| With Dust Cover | Yes |
| Halogen Free | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Reference Number | 079462 |
| EAN Code | 3245060794620 |
| Brand | Legrand |
| Product Series | Mosaic™ |
Order Legrand Mosaic RJ45 Socket Category 6 FTP Aluminium | 079462 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
