Shop Legrand Mosaic RJ45 Socket Inclined 45° Category 6 FTP 2 Modules White | 76505 In Iraq Best Prices
Professional RJ45 Category 6 FTP network socket with 1 GigaBit/s data rate, 45° inclined design, PoE support, and toolless quick connection for commercial and residential installations.

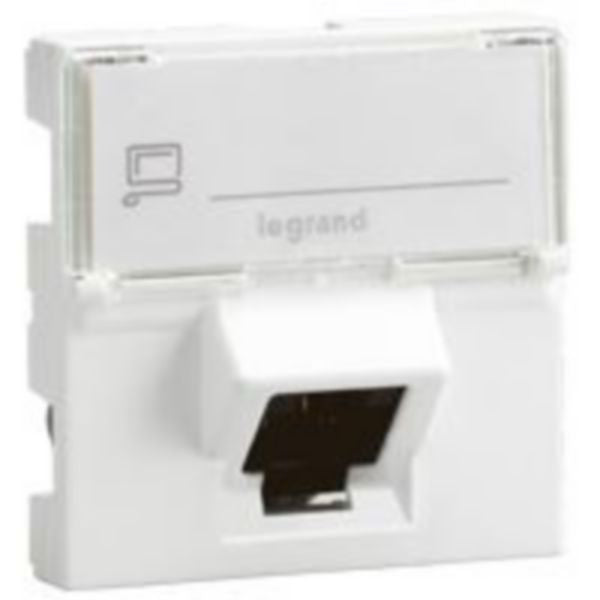

The Legrand Mosaic RJ45 Socket Inclined 45° Category 6 FTP 2 modules white (REF. 076505) is a professional-grade network connector designed for high-speed data transmission. This modular device supports data rates up to 1 GigaBit/s, making it ideal for downloading large files, streaming content, and online gaming with minimal latency. The socket features a transparent protective dust cover and is equipped with quick toolless connection technology for easy installation.
This Category 6 FTP (Foiled Twisted Pair) connector is fully compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 standards. The innovative 45° inclined outlet design prevents wear and tear on both the cord and socket, extending the product's lifespan. The socket supports high-capacity Power over Ethernet (PoE) applications, allowing electric power to be transmitted along with data on twisted pair Ethernet cabling. With its 2-module configuration, this device is suitable for both commercial and residential installations.
The Mosaic range offers exceptional flexibility with its slot system for perfect multigang settings and support frame compatibility. The device can be installed in standard single flush mounting boxes without requiring additional wall groove cutting or cabling modifications. Compatible with cords equipped with RJ11, RJ12, or RJ45 plugs, this connector provides versatile connectivity solutions for modern networking needs.
Key Features
- High-speed Category 6 FTP connector supporting data rates up to 1 GigaBit/s for fast downloads and streaming
- 45° inclined outlet design prevents cord and socket wear and tear, extending product lifespan
- Transparent protective dust cover keeps connector clean and protected when not in use
- Toolless quick connection with integrated crimping technology for fast and easy installation
- High-capacity Power over Ethernet (PoE) support for simultaneous data and power transmission
- Modular 2-module design with slot system for flexible multigang settings and easy installation
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 standards
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile connectivity options
- IP20 protection rating suitable for indoor use in commercial and residential applications
- IK03 impact resistance for durability in various installation environments
Technical Specifications
| Specification |
Value |
| Product Reference | 076505 |
| EAN Code | 3245060765057 |
| Brand | Legrand |
| Product Line | Mosaic |
| Connector Type | RJ45 8(8) |
| Category | Category 6 FTP (Foiled Twisted Pair) |
| Data Rate | Up to 1 GigaBit/s |
| Number of Modules | 2 modules |
| Outlet Direction | Inclined 45° |
| Color | White |
| RAL Number | 9003 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 40.7 mm |
| Built-in Depth | 25.1 mm |
| Connection Type | Insulation Displacement Connector (IDC) |
| Fastening Type | Engage (Snap) |
| Installation Type | Flush-mounted, Duct, Floor box/subfloor mounted |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK03 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Shielded Buses | No |
| Dust Cover | Yes, transparent protective cover included |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Mounting Method | Flush-mounted with rocker plates |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Power over Ethernet Support | Yes, high-capacity PoE applications |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Suitable for Number of Connectors | 1 |
| Separate Earthing Connection | No |
| Label Space | Yes |
| Terminal Marking Indication | Yes |
| Colour Coding | Yes |
